CAME F7001 Installation Manual

1
4
3
2
I
194 218
245
mm
Pag.
3
3 -
Manual code
:
119DU64
119D U 64 ver. .
3
3 05/2013
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

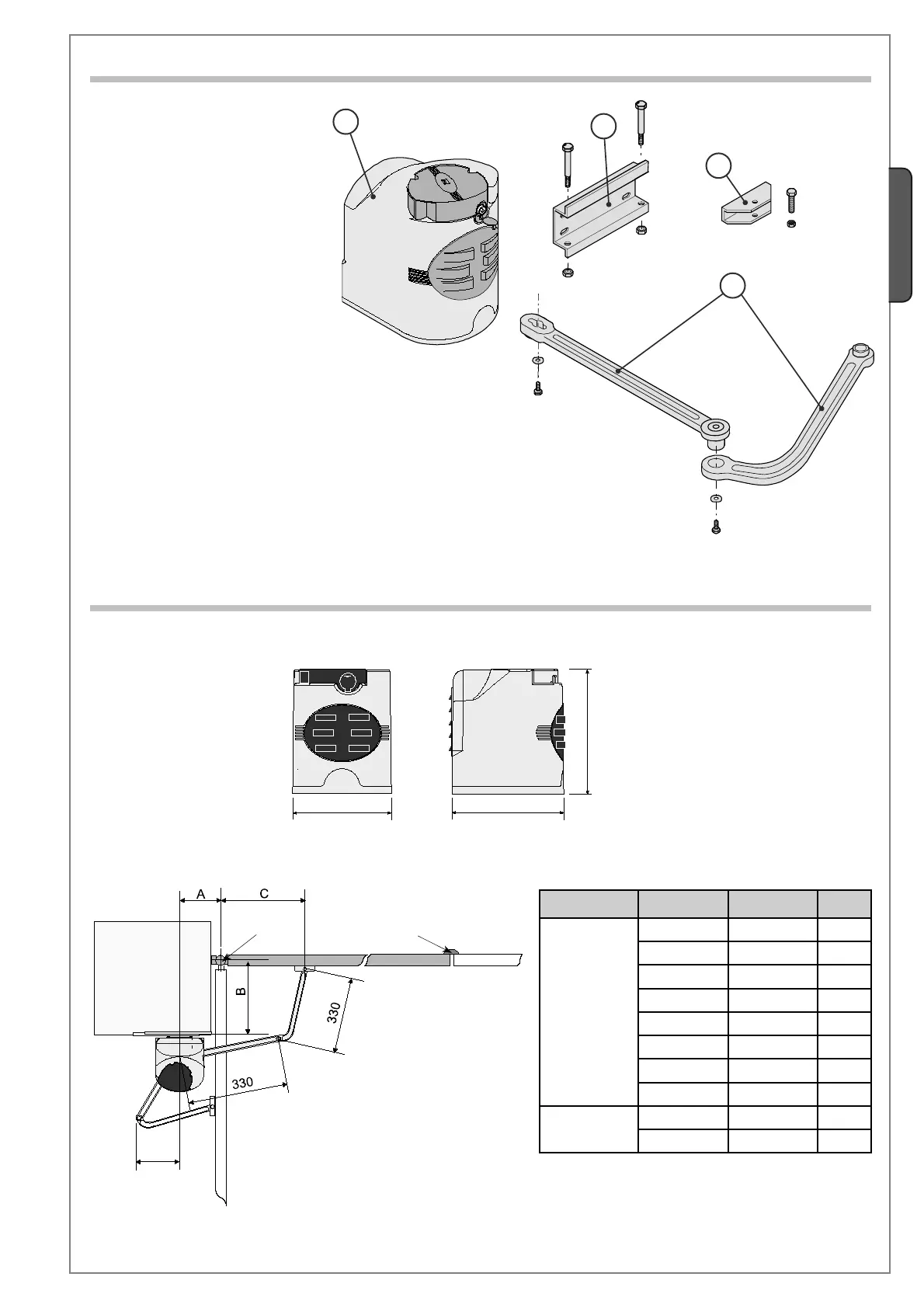

4.4 Dimensions and basic measurements
4.3 Description of parts
1) Gearmotor
2) Pillar bracket
3) Articulated transmission arm
4) Gate bracket
Opening angle
ABC
90°
137÷210 0 430
137÷205 50 430
137÷200 75 430
137÷195 100 430
137÷190 125 430
137÷185 150 400
137÷180 175 400
180÷175 200 400
110°
180÷210 0 430
200÷205 50 430
