CAME F7001 Installation Manual

-
UVW
-
E
+
UVW
E
+
-
UVW
-
E
+
UVW
E
+
Pag.
10
10 - Manual code:
119DU64
119D U 64 ver.
3
3 05/2013 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
LEFT-HAND installed
gearmotor
RIGHT-HAND installed
gearmotor

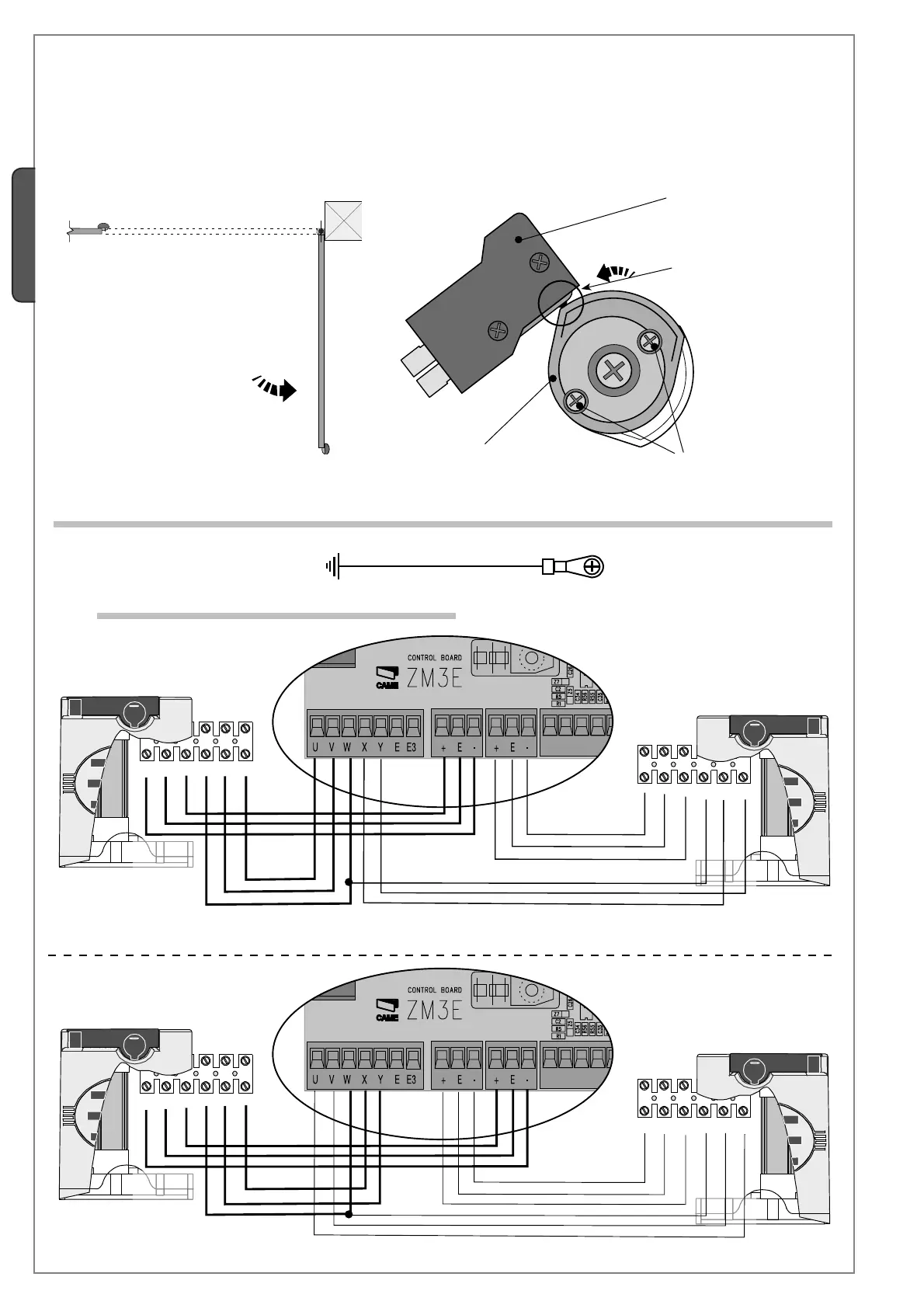

5.10.1 Electrical connections to the ZM3E (F7001E)
5.10 Electrical connections
Upper microswitch
Securing screws for the upper
cam
Switch
Upper cam
OPENING STOP
After adjusting the closing endpoint you may adjust the opening microswitch.
Always with the gearmotor released ...
1) Manually push the gate to the desired open position (max. 110°).
2) turn the UPPER CAM COUNTER-CLOCKWISE until the switch is activated.
3) tighten the two screws.
230V AC gearmotor connection for delayed
OPENING function
230V AC gearmotor connection for
delayed CLOSING function
230V AC gearmotor connection for delayed
CLOSING function
230V AC gearmotor connection for
delayed OPENING function
LEFT-HAND installed
gearmotor
RIGHT-HAND installed
gearmotor
Grounding
