CAME F7001 Installation Manual

Pag.
9
9 -
Manual code
:
119DU64
119D U 64 ver. .
3
3 05/2013
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

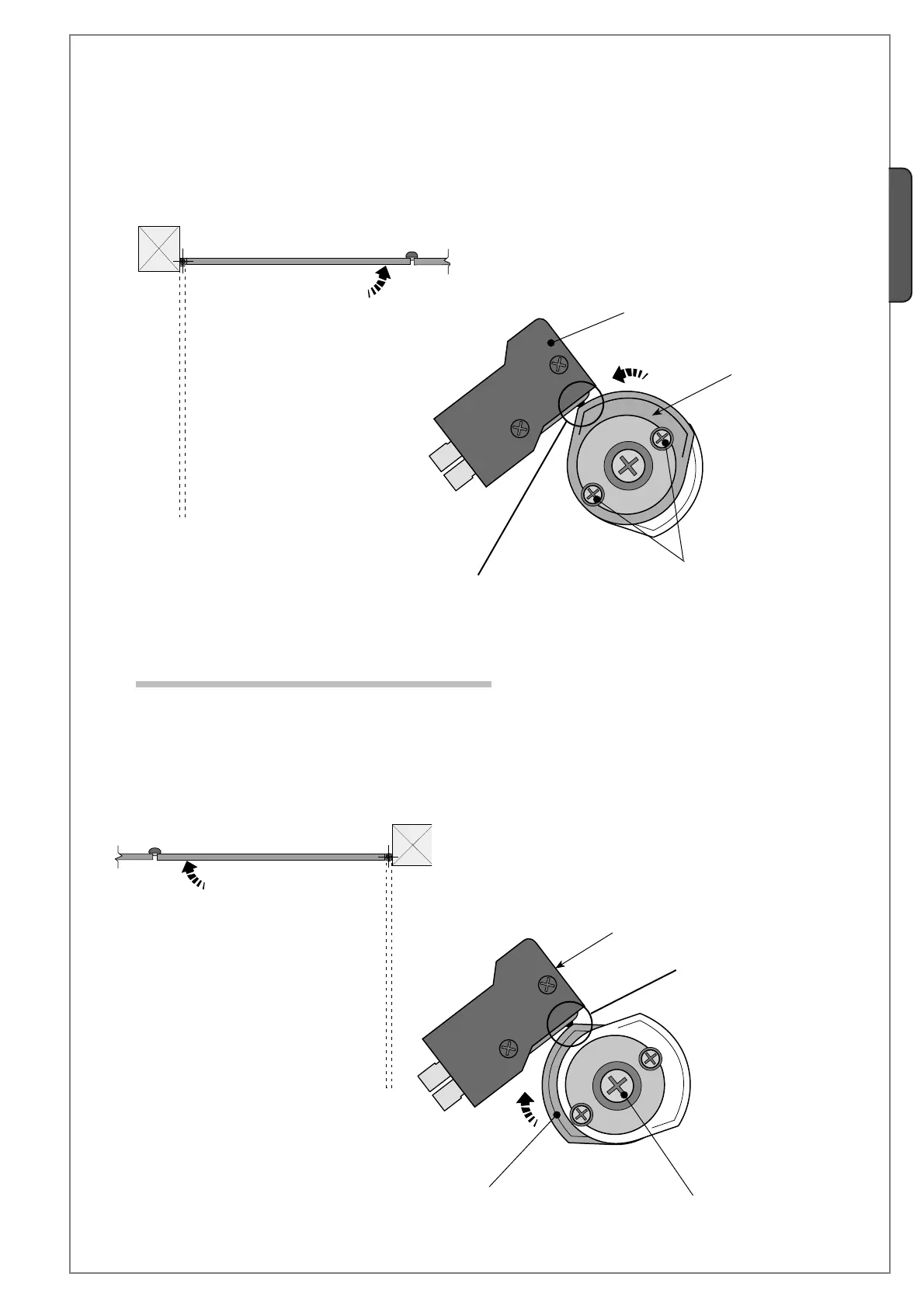

Upper microswitch
Switch
Upper
cam
Securing screws for the upper cam
5.9.2 Right-hand installed gearmotor (inside view)
CLOSING STOP
After having adjusted the opening endpoint, you can adjust the closing microswitch.
Always with the gearmotor released...
1) manually lead the gate leaf to the fully closed position.
2) turn the UPPER CAM COUNTER-CLOCKWISE until the switch is activated.
3) tighten the two screws.
Switch
CLOSING STOP
1) Release the gearmotor and manually close the gate.
2) Turn the LOWER CAM CLOCKWISE until the switch is activated.
3) Tighten the central screw.
Lower microswitch
Lower cam securing screw
Lower cam
