CAME F7001 Installation Manual

Pag.
8
8 - Manual code:
119DU64
119D U 64 ver.
3
3 05/2013 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

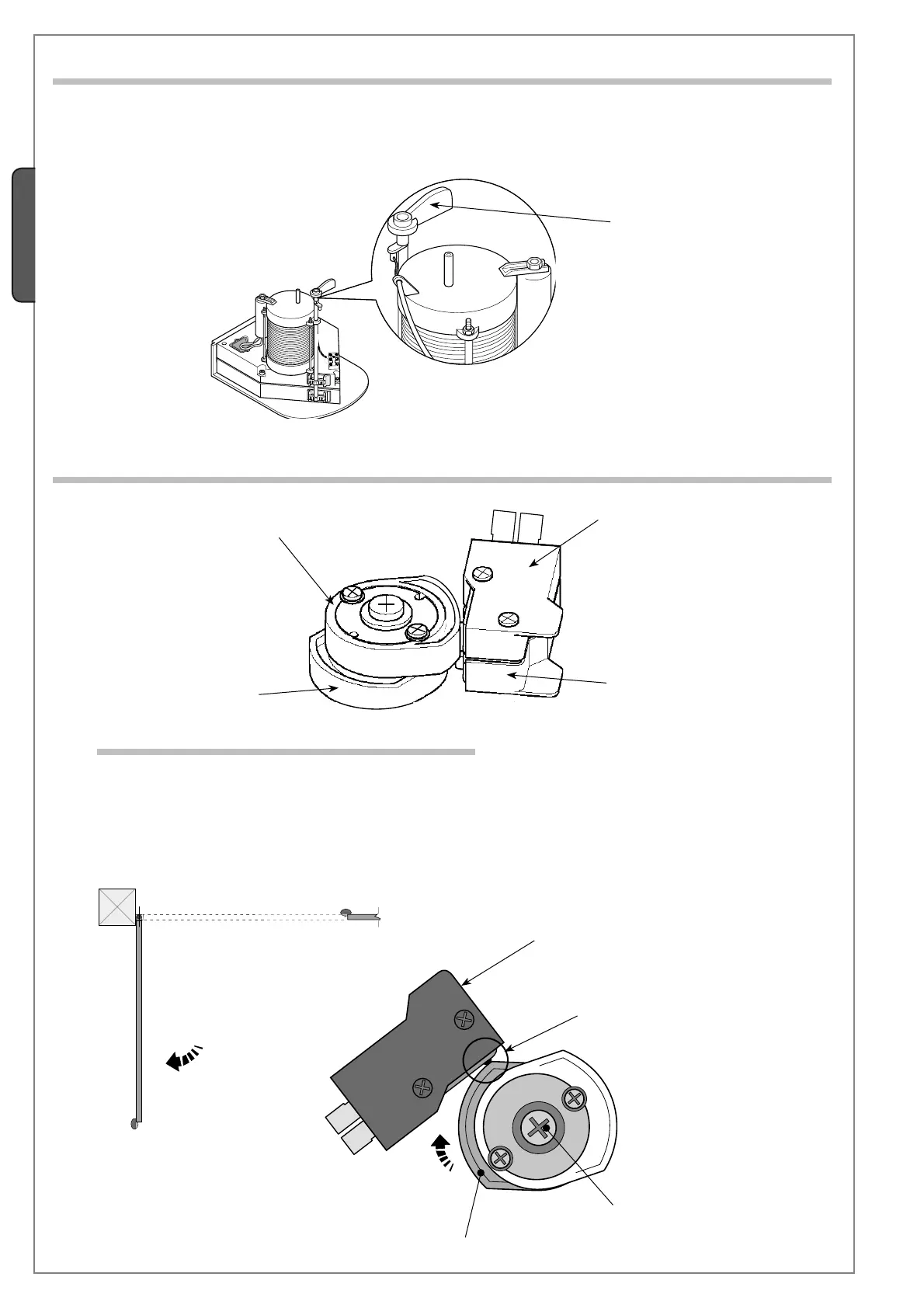

Before making any adjustments to the microswitches, you must release the gearmotor by turning the apposite handle.
Handle
Lower microswitch
Upper microswitch
5.8 Gearmotor release
Upper cam
Lower cam
OPENING STOP
1) Release the gearmotor and manually lead the gate to the desired opening position (max. 110°).
2) Turn the LOWER CAM CLOCKWISE until the switch is activated.
3) Tighten the central screw.
Lower microswitch
Lower cam securing screw
Switch
Lower cam
5.9.1 Motoriduttore installato a sinistra (vista interna)
5.9 Adjusting microswitches
