M8x90
M8
(4)
M12x40
M12
M10x14
ø 10x35
M6x10
ø 6x24
Pag.
7
7 -
Manual code
:
119DU64
119D U 64 ver. .
3
3 05/2013
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

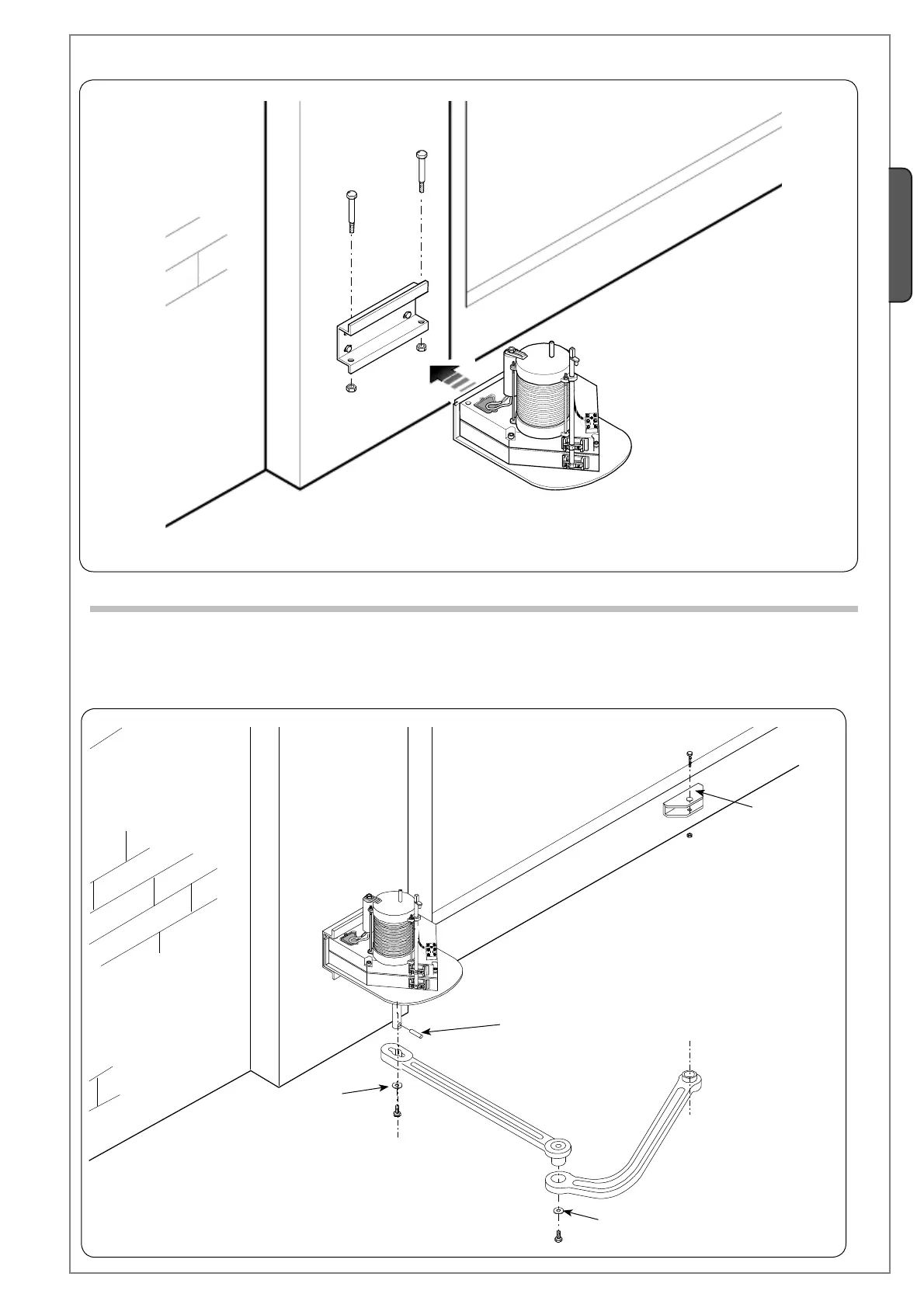

Insert the gearmotor into the Pillar bracket’s 4 holes and secure it with the two supplied M8x90 screws and relative M8 nuts (4).
- Plug in the Ø10x40 plug and the straight arm into the gear motor shaft and secure it using the M10x14 screw and relative
Ø10x35 washer.
Lubricate the bushing and insert the straight arm. Release the gearmotor and secure the curved arm to the gate bracket using
the M12x40 screw and relative M12 nut, making sure the arm runs freely.
5.7 Applying the articulated arm
