CAME FROG-A User Manual

FROG-A
FROG-AV
FROG-A
FROG-AV
FROG-AE FROG-AE
ZA3N - ZM3E
+
E
-
-
E
+
ZA3N
-
ZM3E
Page
11
11 -
Manual code:
119AS45EN
119AS45 EN ver.
7
7 02/2016
© CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.

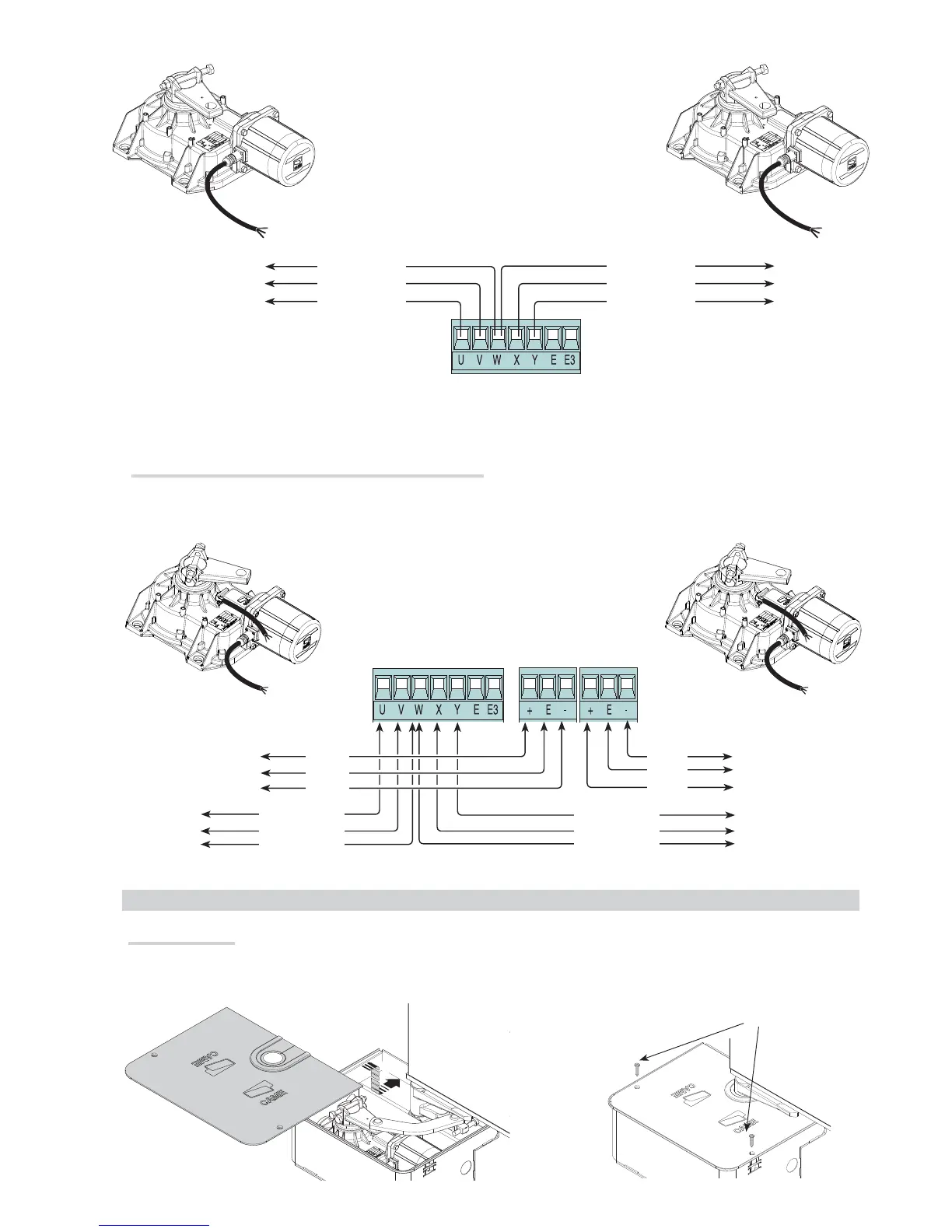

FINAL OPERATIONS
Securing the cover
Rest the cover on the foundation case and fix it with the screws (supplied).
Screw M8x25
UNI 5933
M1 - 230 V AC delayed-opening gearmotor.
M2 - 230 V AC delayed-closing gearmotor
Blue
Brown or black
Black or brown
Blue
Brown or black
Black or brown
☞ If the gate fails to open after an opening command, invert cables U-V and X-Y.
Connecting the encoder-fitted gearmotors to the control panel
M1 - 230 V AC delayed-opening gearmotor.
M2- 230 V AC delayed-closing gearmotor.
White
Brown
Green
Green
Brown
White
Brown or black
Black or brown
Blue
Brown or black
Black or brown
Blue
ENCODER BENCODER A

CAME FROG-A Specifications

General

Max Gate Weight	800 kg
Max Gate Length	3.5 m
Power Supply	230 V AC
Motor Voltage	230 V AC
Duty Cycle	30%
Operating Temperature	-20°C to +55°C
Protection Rating	IP67
Control Type	Remote Control
