CAME FROG series Installation Manual

Pag. 13 - Manual code: 119AV31 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
8 Maintenance
8.1 Periodic maintenance
Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the
photocells; check that the safety devices work properly; remove any obstructions. We suggest checking the state of
lubrication and tightness of the anchoring screws on the operator. To check the efficiency of the safety devices, move
an object in front of the photocells when gate is closing. If the operator inverts the motion or stops, the photocells are
working properly. This is the only maintenance procedure to be carried out with the power source connected. Before
performing any maintenance procedures, cut off the main power, to prevent possible accidents due to gate movement.
To clean the photocells use a water dampened cloth. Do not use solvents or other chemical products which may ruin

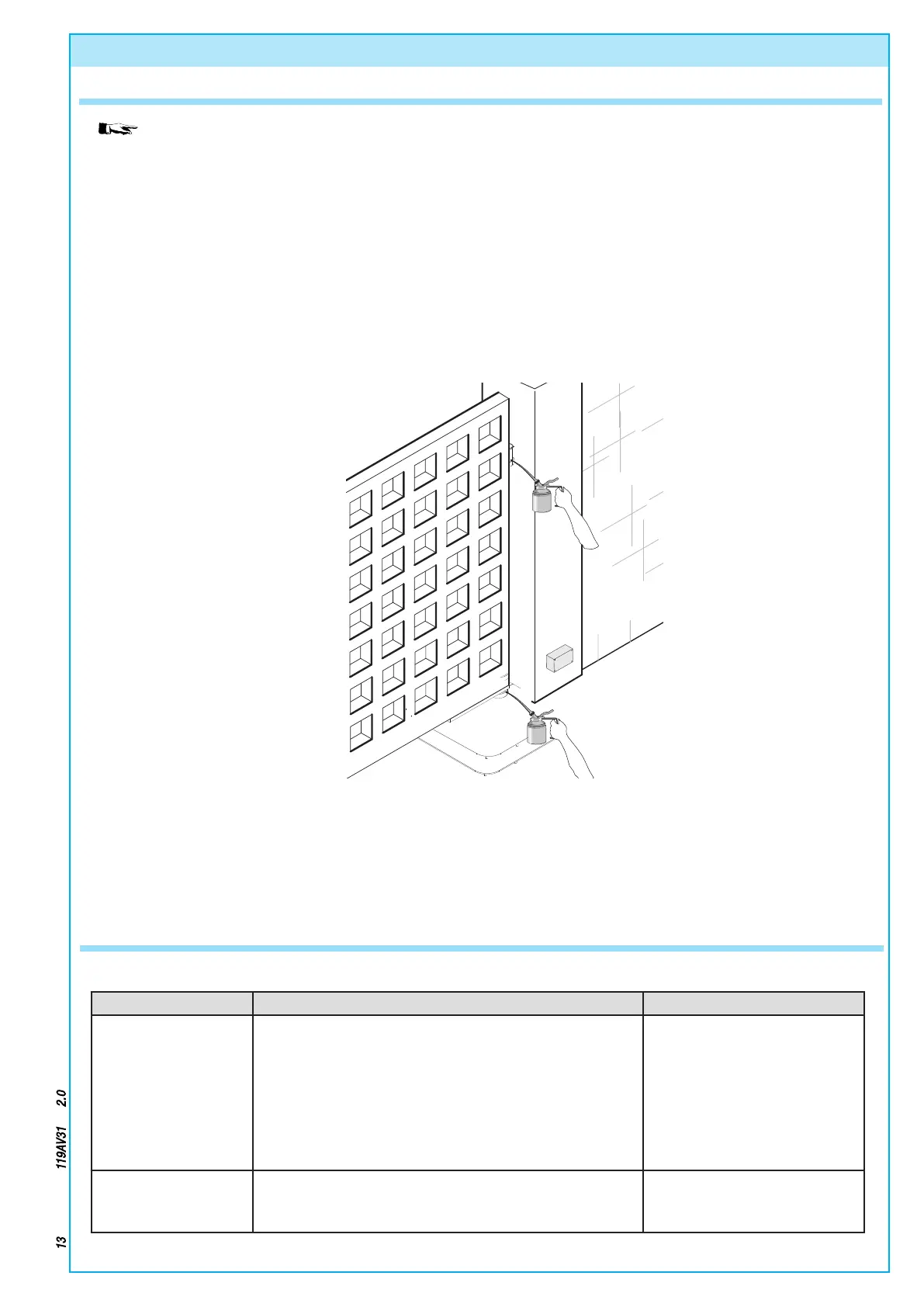

the devices. In the event of any strange vibrations or squeaking, lubricate the joints with grease, as shown in the
diagram.
Make sure there are no plants within the photocell’s beam, and that the gate motion is free of any obstacles.
8.2 Trouble shooting
MALFUNCTIONS POSSIBLE CAUSES CHECK AND REMEDIES
The gate will not open
nor close
• There is no power
• The gearmotor is released
• The remote control’s batteries are run down
• The transmitter is broken
• The stop button is either stuck or broken
• The opening/closing button or the key selector are stuck
• If not using EMERGENCY stop botton
• If not using PHOTOCELLS.
• Check that the power is up
• Call assistance
• Replace batteries
• Call assistance
• Call assistance
• Call assistance
• Jump between 2-1
• Jump N/C contacts if not used.
The gate opens but will
not close
• The photocells are engaged • Check that photocells are clean
and in good working order
• Call assistance

CAME FROG series Specifications

General

Motor Voltage	24 V DC
Max Gate Weight	800 kg
Duty Cycle	30%
Limit Switch	Yes
Power Supply	230 V AC
Safety Features	Obstacle detection
Type	Electromechanical underground gate opener
