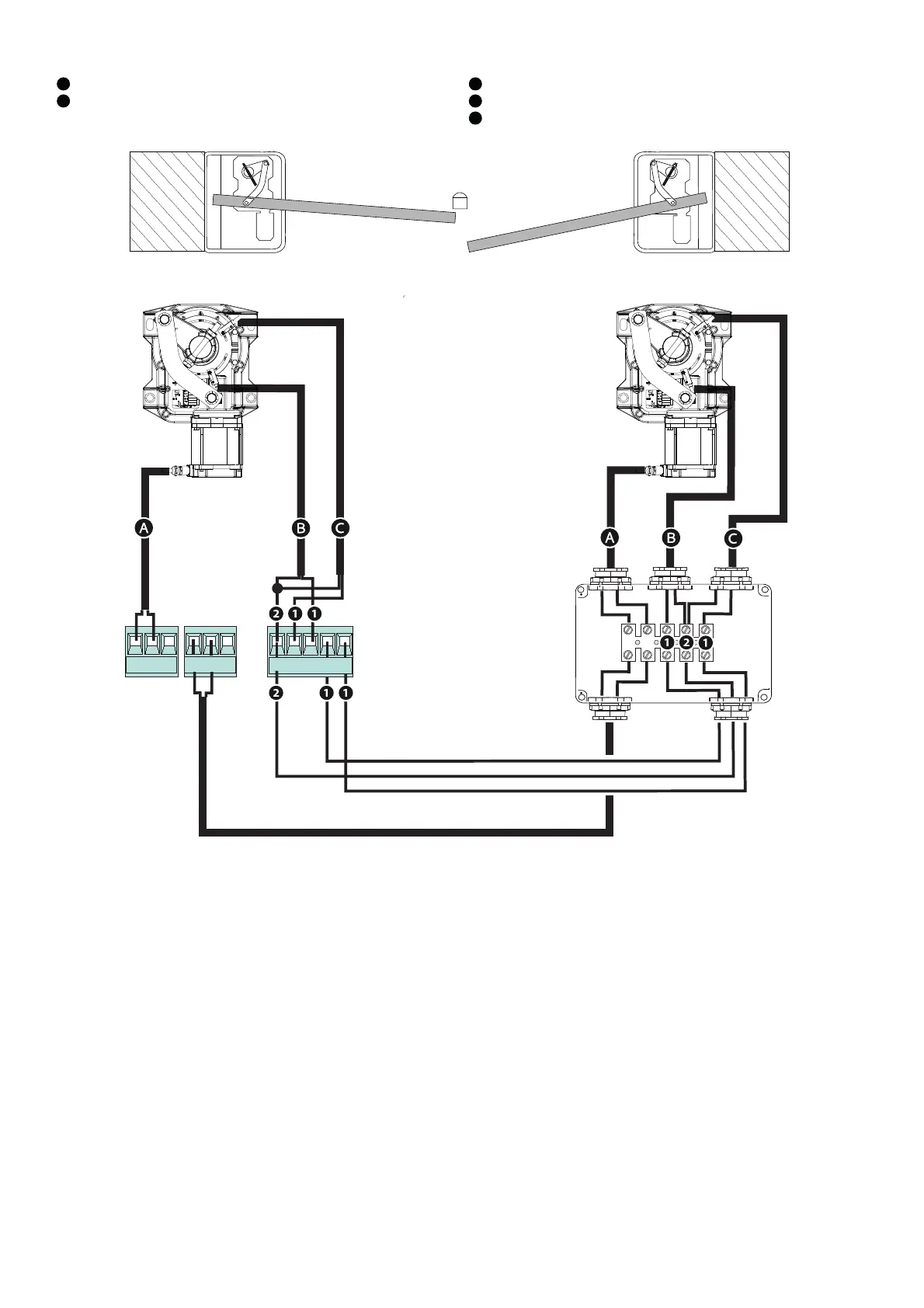

Gearmotor without Encoder
1
Brown cable
2
Blue cable
A
Power supply cable
B
Cable for slowing down during opening
C
Cable for slowing down during closing
M1 N1 E1
M2 N2 E2
2 FA1 FC1 FA2 FC2
