CAME FROG

Page 5 - Manual FA01569-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PRODUCT DATA AND INFORMATION
Key
This symbol shows which parts to read carefully.
This symbol shows which parts describe safety issues.
This symbol shows what to tell users.
The measurements, unless otherwise stated, are in millimetres.
Description
FROG-A24
Underground irreversible 24 V gearmotor with adjustable leaf-stop during closing, for swing gates with leaves up to 3.5 m in length and 400 kg in weight.
FROG-A24E
Underground irreversible 24 V gearmotor with encoder and adjustable leaf-stop during closing, for swing gates with leaves up to 3.5 m in length and 400 kg in weight.
Intended use
Concealed solution for use in residential and apartment block settings
Any installation and/or use other than that specified in this manual is forbidden.

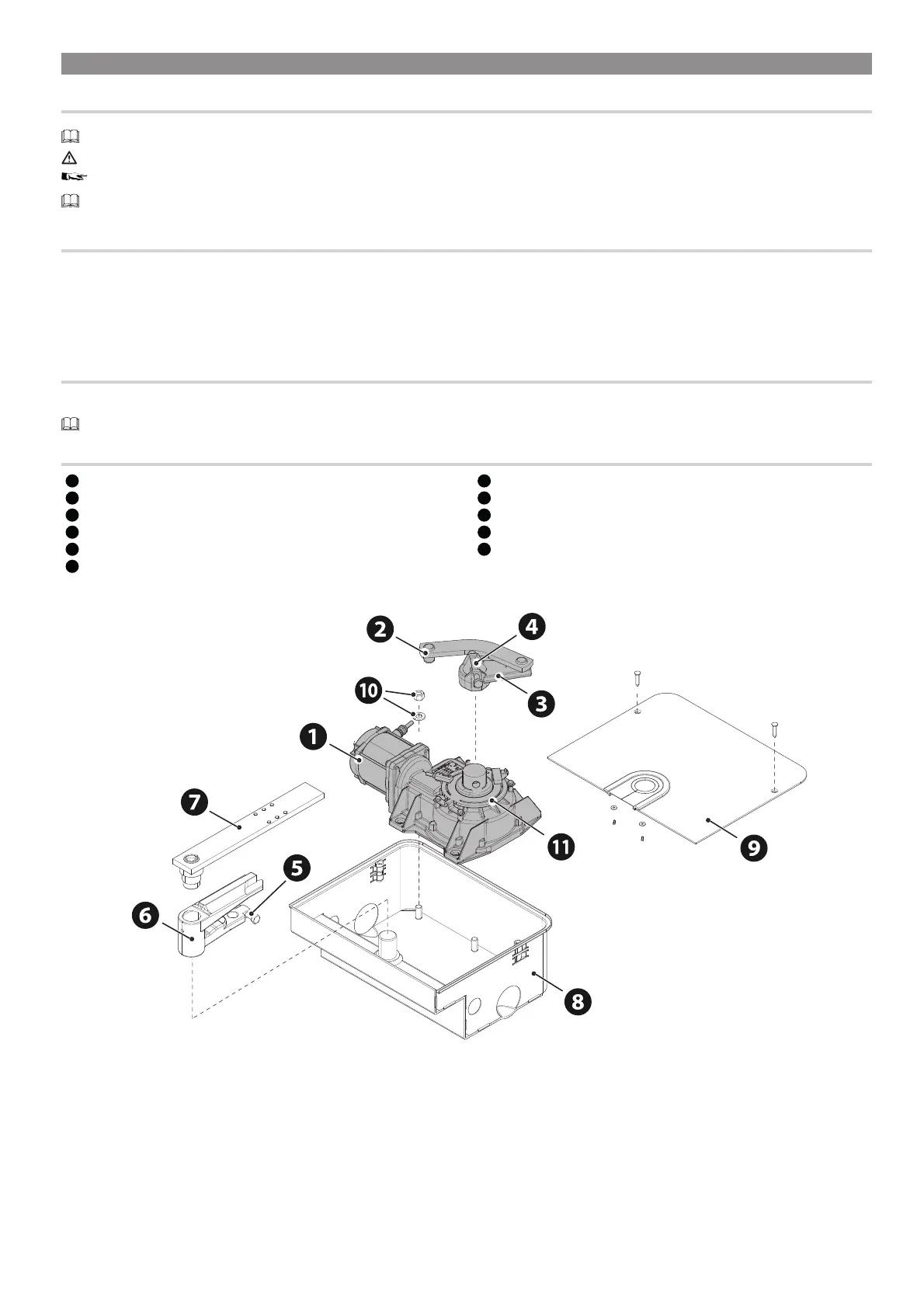

Description of parts
1
Gearmotor
2
Movement transmission lever
3
Gearmotor arm
4
Screw for adjusting the closing limit-switch point
5
Screw for adjusting the opening limit-switch point
6
Lever for hooking the release unit
7
Gate bracket
8
Foundation box
9
Cover
10
Fixtures and fittings
11
Slow-down magnetic limit switch
