CAME FROG

Page 6 - Manual FA01569-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

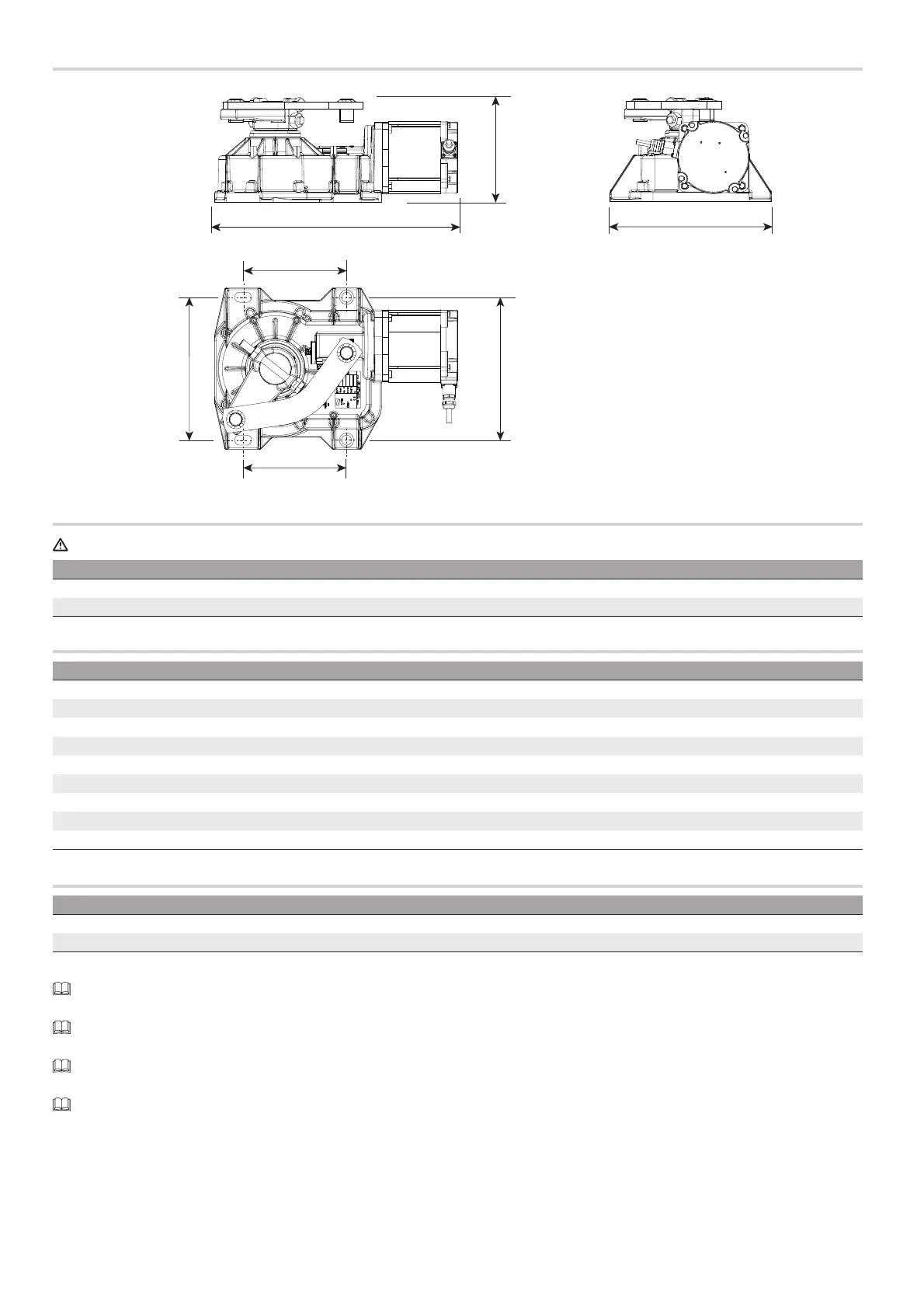

Size
145
145
200
226
200
144
340
Usage limitations
You must install an electric lock to ensure the gate closes efficiently.
MODELS FROG-A24 FROG-A24E
Gate-leaf length (m) 3,5 2,5 2 - 3,5 2,5 2 -
Gate-leaf weight (Kg) 400 600 800 - 400 600 800 -
Technical data
MODELS FROG-A24 FROG-A24E
Motor power supply (V) 24 DC 24 DC
Power (W) 180 180
Current draw (mA) 15 Max. 15 Max.
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55
Torque (Nm) 320 320
Opening time at 90° (s) ADJUSTABLE ADJUSTABLE
Duty cycle (%) HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE
Protection rating (IP) 67 67
Insulation class II
Cable types and minimum thicknesses
Cable length (m) up to 20 from 20 to 30
Motor power supply 24 V DC 2G x 1.5 mm2 2G x 2.5 mm2
Micro limit switches * no. x 0.5 mm2 * no. x 0.5 mm2
* no. = see product assembly instructions - Warning: the cable cross-section is indicative and varies according to the motor power and cable length.
When operating at 230 V and outdoors, use H05RN-F cables compliant with 60245 IEC 57 (IEC); when operating indoors, use H05VV-F cables compliant
with 60227 IEC 53 (IEC). For power supplies up to 48 V, you can use FROR 20-22 II cables compliant with EN 50267-2-1 (CEI).
If the cable lengths differ from those specified in the table, define the cable cross-sections according to the actual power draw of the connected devices
and in line with regulation CEI EN 60204-1.
For multiple, sequential loads along the same line, recalculate the values in the table according to the actual power draw and distances. For information
on connecting products not covered in this manual, please see the documentation accompanying the products themselves.
To connect the encoder, use a FRORPU 3 x 0.5 mm² cable or a cable supplied by CAME on request (item code 801XA-0020).
