Establishing the slow-down points*
Only for the FROG-A24
Give an opening command and stop the leaves at about 600 mm from the strike plate.

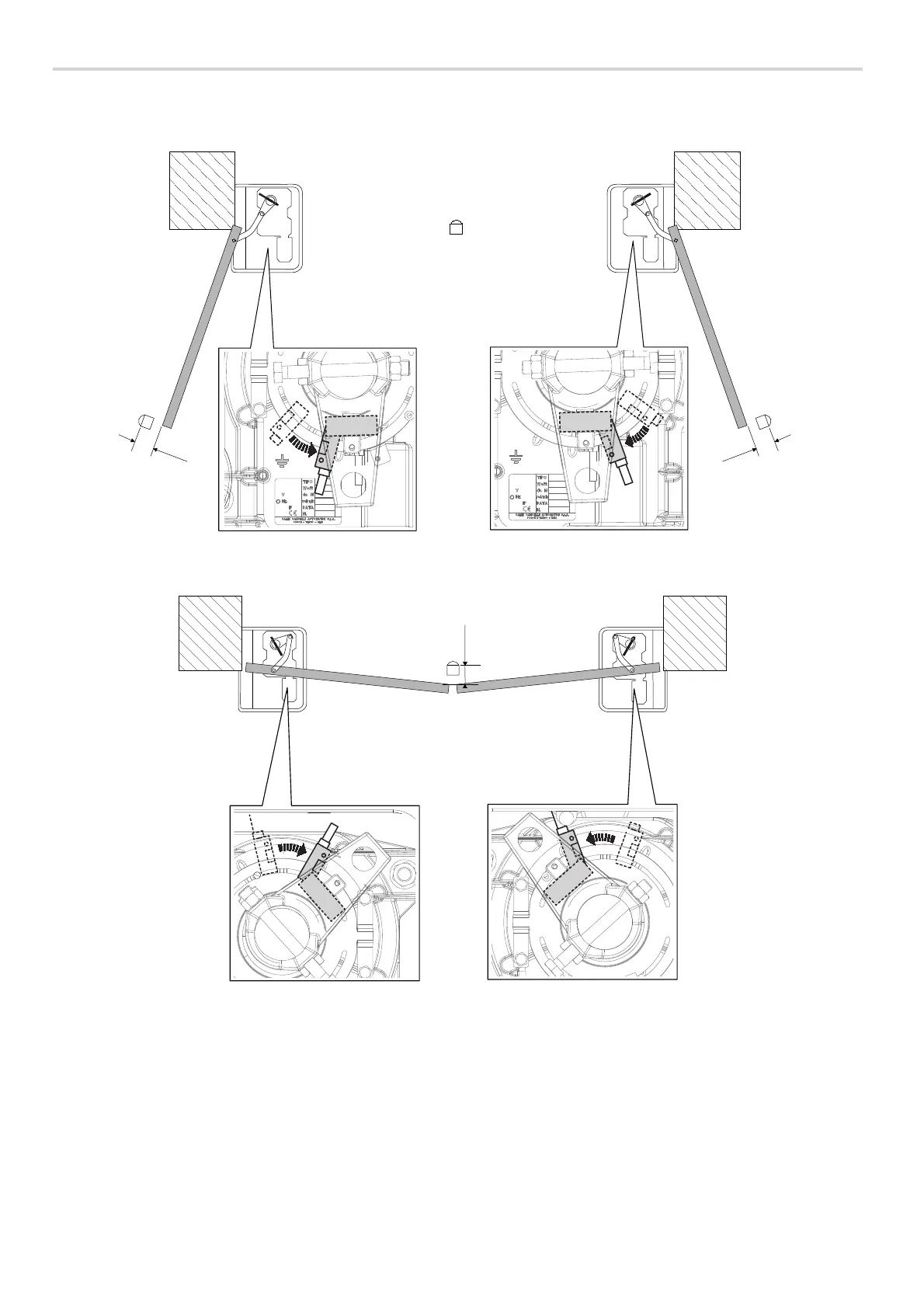

Position the magnetic microswitches as shown in the images.
600
600
Give an closing command and stop the leaves at about 600 mm from the strike plate.
Position the magnetic microswitches as shown in the images.
600

CAME FROG Specifications

General

Motor Power	300 W
Max Gate Weight	800 kg
Model	FROG
Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
