CAME FROG User Manual

Page 8 - Manual FA01569-EN - 04/2021 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

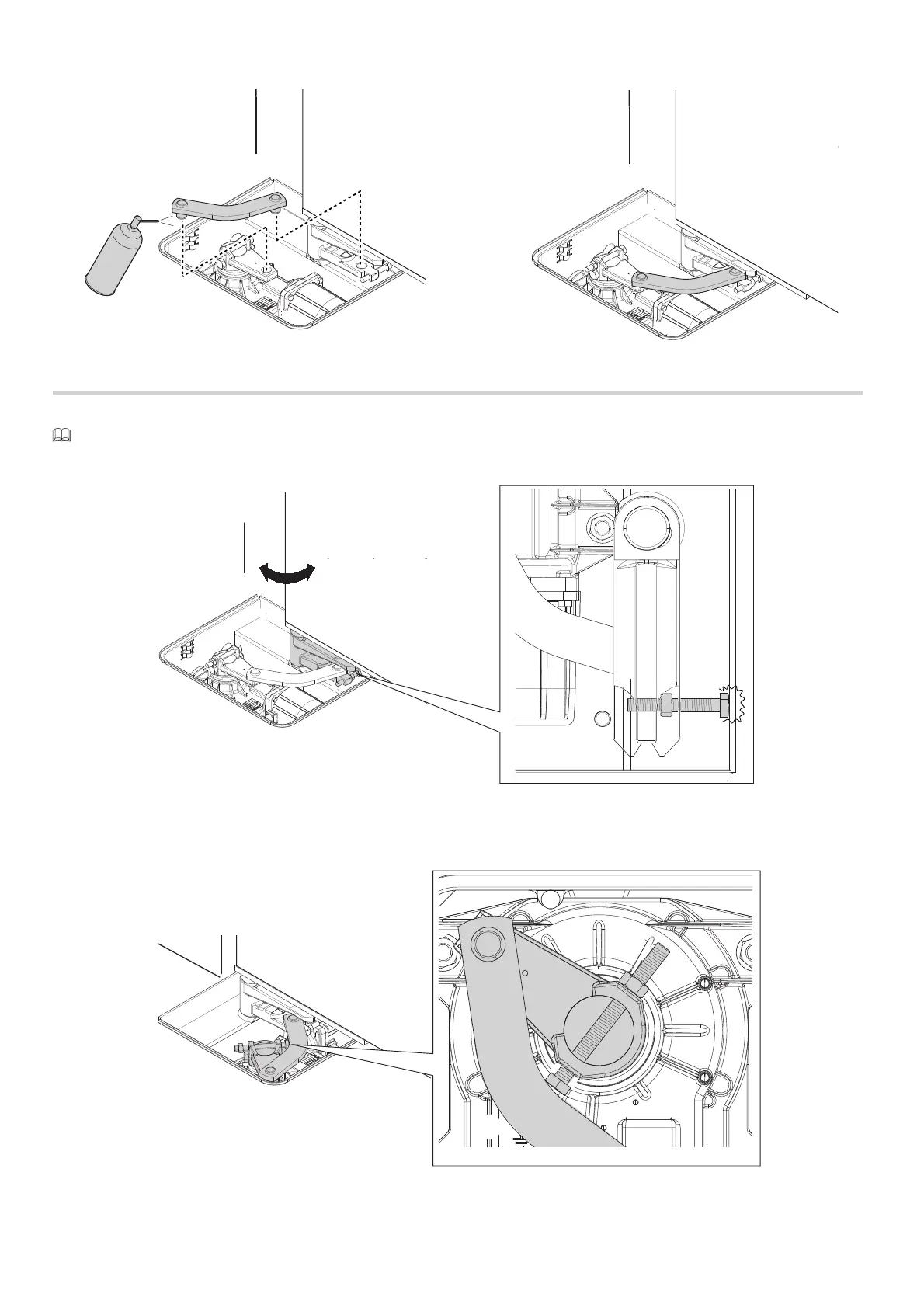

Lubricate the transmission lever.
Fit the transmission lever as shown in the drawings.
Determining the travel end points with mechanical limit switches
Manually open the leaf to the desired point.
The leaf maximum opening is 110°.
Unscrew the opening limit-switch point adjustment screw until it touches the foundation box.
Tighten the nut to lock the screw into position.
Close the gate manually.
Loosen the adjusting screw of the closing limit-switch point until it touches the transmission lever.
Tighten the nut to lock the screw into position.

CAME FROG Specifications

General

Motor Power	300 W
Max Gate Weight	800 kg
Model	FROG
Motor Voltage	230 V AC
Operating Temperature	-20°C to +55°C
Power Supply	230V AC
