3
2
4
5
6
1
9
10
11
12
8
13
15
14
7
16
7
16
7
SEL
SET
p.
4
4 - Manual code:
FA01030-EN
FA01030-EN v.
1
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

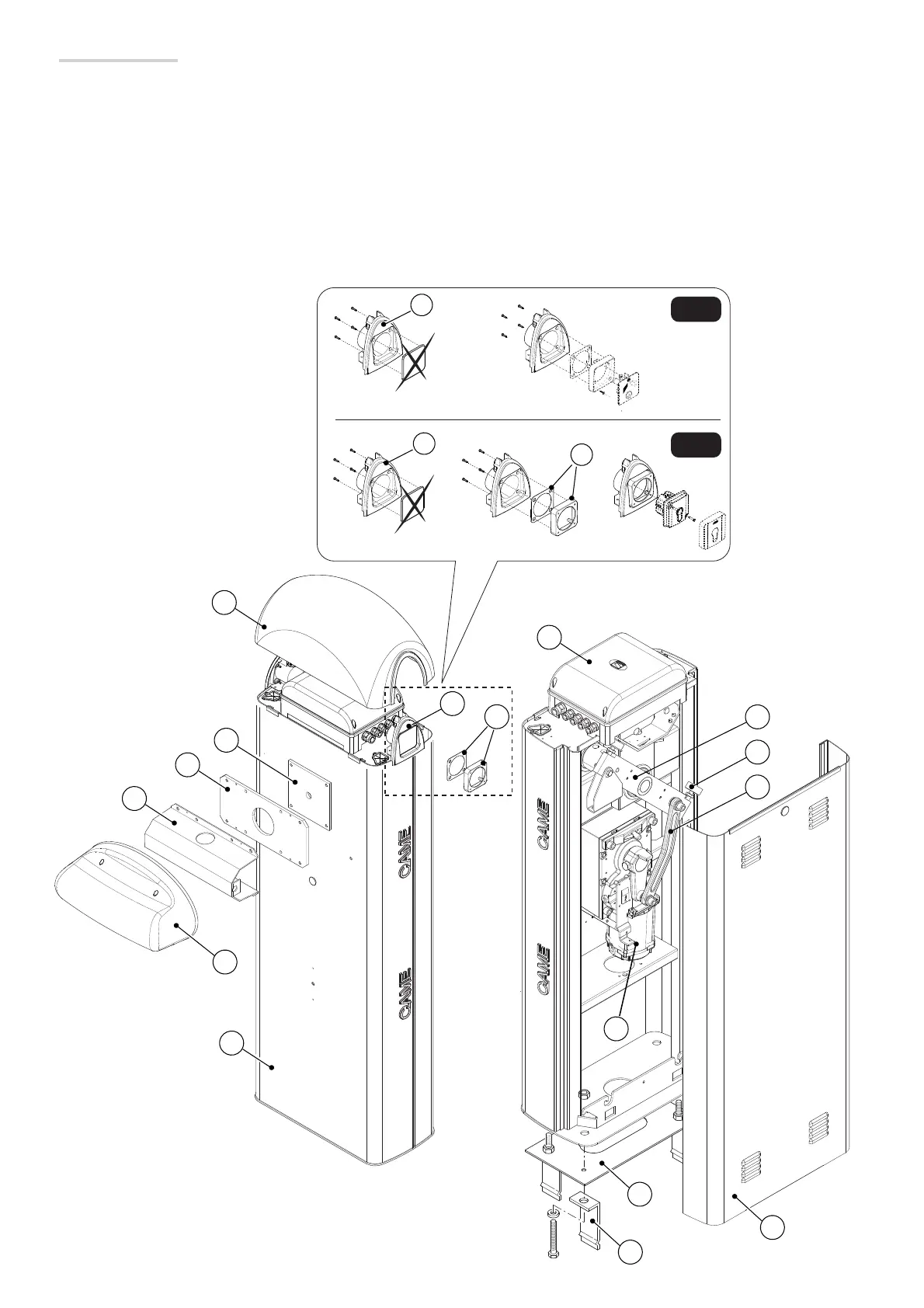

Description of parts
1. Dome cover
2. Motor shaft plate
3. Intermediate plate
4. Boom-attachment cover
5. Anti-shearing protective cover
6. Cabinet
7. Casing for key-switch and digital selectors
8. Control panel
9. Lever arm
10. Boom-adjustment stopper
11. Transmission connecting rod
12. Gearmotor with encoder
13. Inspection hatch
14. Anchoring plate
15. Clamp
16. Adapter with gasket for SEL-series selectors
