CAME GARD 8 SERIES User Manual

1335
243
493
405
1305
max. 7600
914
p.
3
3 - Manual code:
FA01030-EN
FA01030-EN v.
1
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.
KEY
 This symbol shows the parts which must be read with care.
⚠
This symbol shows the parts which describe safety issues.
☞
This symbol indicates what should be communicated to users.
DESCRIPTION
Barrier made of varnished, galvanised steel or AISI 304 satin-finish steel set up to fit accessories.
Intended use
The automatic barrier is designed to be used in public and private parking facilities.
Any installation and use other than that specified in this manual is forbidden.
Limits to use
Type G2080E - G2080IE
Maximum clearance width of the passage (m) 7.60
Technical data
Type G2080E - G2080IE
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Motor power supply (V) 24 DC
Max draw (A) 15
Power
(W)
300
Torque (Nm) 600
Opening time at 90° (s) 4 to 8
Duty cycle INTENSIVE SERVICE
Operating temperature (°C) -20 to +55
Reduction ratio (i) 1/202
Insulation class I
Weight (Kg) 91

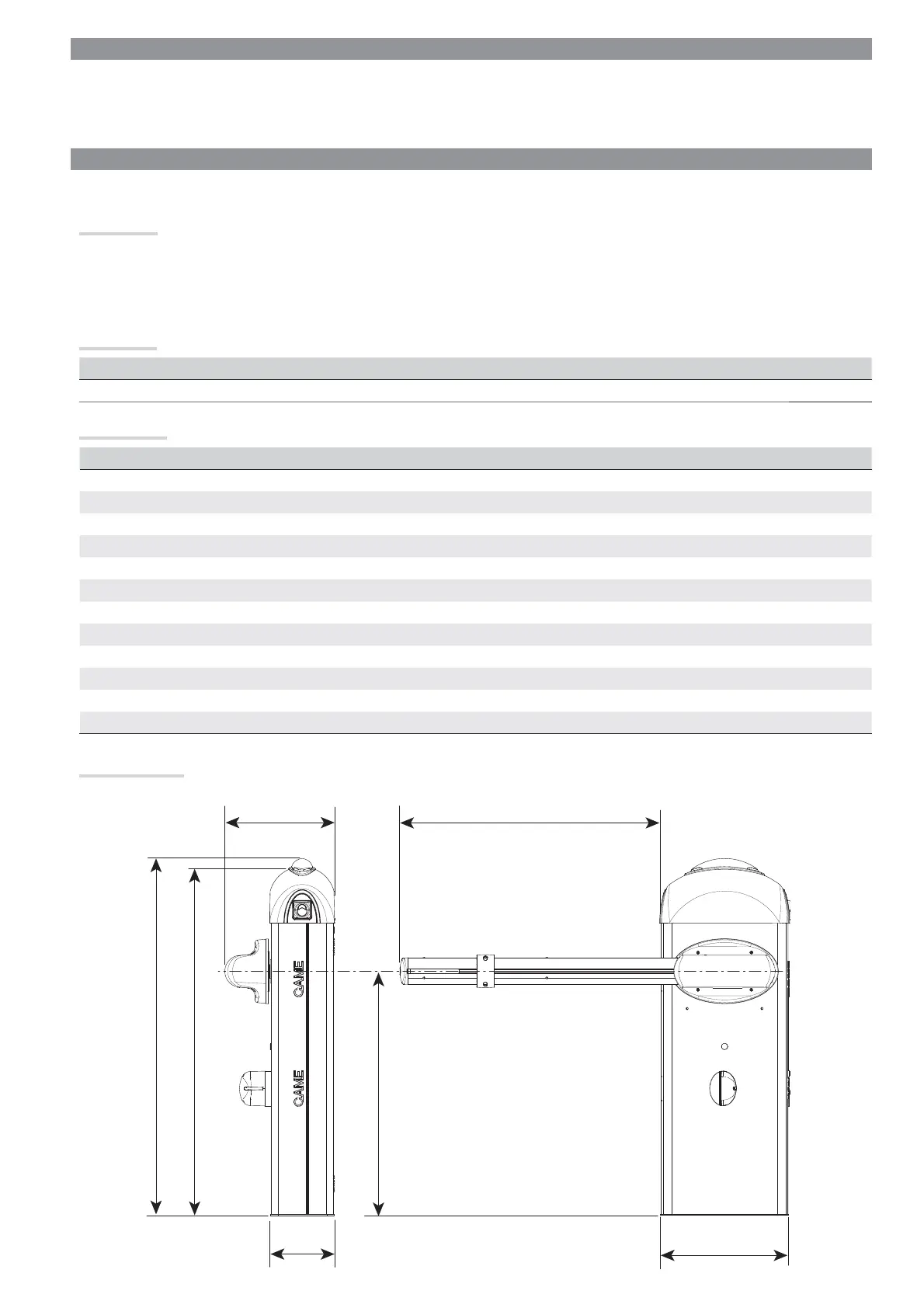

Dimensions (mm)

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
