CAME GARD 8 SERIES User Manual

MASTER
SLAVE
MASTER
SLAVE
MASTER
SLAVE
p.
26
26 - Manual code:
FA01030-EN
FA01030-EN v.
1
1- 01/2018 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

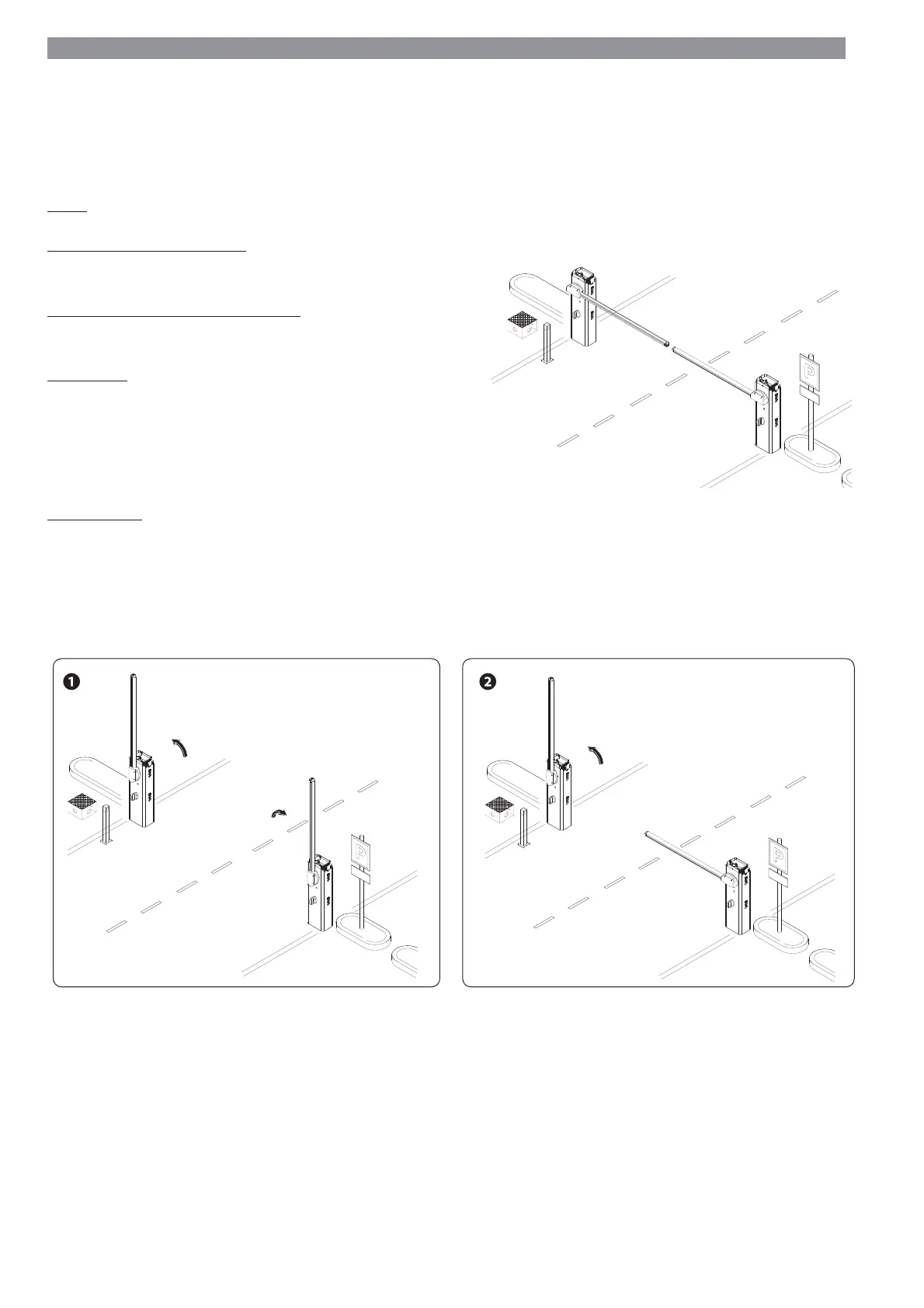

PAIRED CONNECTION
 Important! First do the following on both operators:
- insert the RSE card (with the dipswitches set to OFF) on the panel connector on both operators.
- connect the two boards with a CAT 5 cable (max. 1,000 m) to terminals A- / B-B / GND-GND; see CONNECTION FOR PAIRED or ALTERNATE
OPERATION)
- connect all command and safety devices on the MASTER operator panel.
 Important! Deactivate the F 19 function (automatic closing time) on the panel on the SLAVE operator.
Saving
Follow the procedure for entering a user with the OPEN and PARTIAL/PEDESTRIAN OPENING command on the MASTER panel.
Confi guring the MASTER operator
Select function F 49. Press ENTER to confi rm.
Select 1 (paired) and press ENTER.
Parameter transfer from MASTER to SLAVE
Select function F 52 on the MASTER panel.
Select 1 and press ENTER.
Programming
Set the following functions on both barriers:
- motor type (A1);
- motor test (A2);
- total stop (F1);
- travel calibration (A3).
Proceed with setting and adjusting the MASTER panel.
Function modes
 STEP-BY-STEP or OPEN command Both booms open.
 PARTIAL/PEDESTRIAN opening command. Only the boom on the MASTER barrier opens.
For information on the types of command that can be selected and associated with users, see the section ENTERING A USER WITH AN ASSOCIATED
COMMAND.

CAME GARD 8 SERIES Specifications

General

Model	GARD 8 SERIES
Type	Automatic Barrier
Motor voltage	24 V DC
Power	300 W
Operating temperature	-20°C to +55°C
Protection rating	IP54
Input Voltage	230 V AC
Output Voltage	24 V DC
Protection Degree	IP54
Power supply	230 V AC
Opening time	4 to 8 seconds
