45°
45°
p.
14
14 - Manual Code:
11
11
9 G V18
9GV18 ver.
1.1
1.1 12/2011 © CAME Cancelli Automatici S.p.a. - The data and information in this manual may be changed at any time and without obligation on the part of Came Cancelli Automatici S.p.a. to notify said changes.
ENGLISH

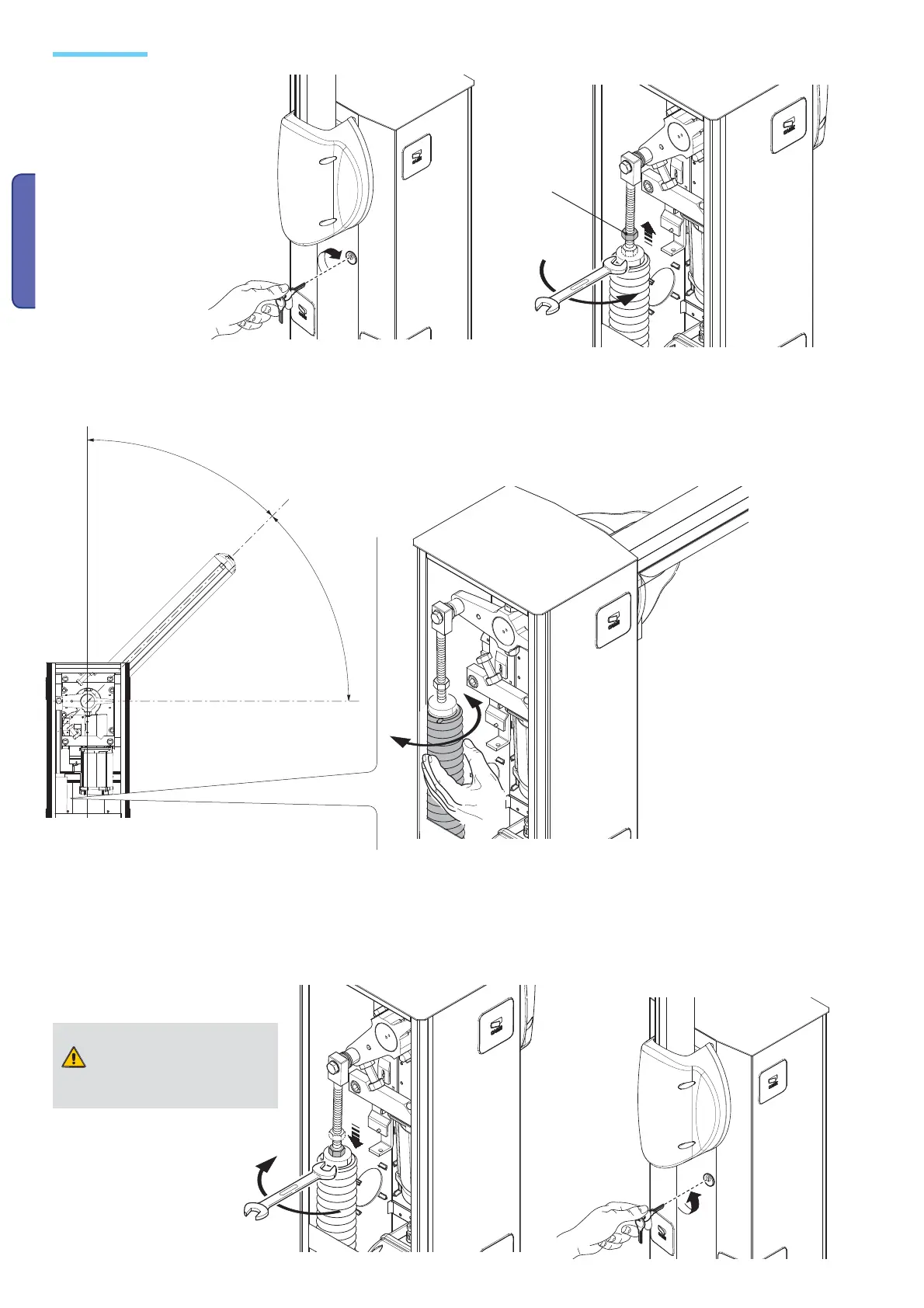

Release the gearmotor and
loosen nut on the rod.
Manually turn the balancing
spring to increase or reduce
the traction force so that the
arm balances at 45°.
Secure the nut of the bar and lock the
gearmotor.
WARNING! When balancing
procedures are fi nished, LUBRICATE
THE SPRINGS WITH SPRAY GREASE!
Arm balancing
Securing nut
RELEASE
LOCKING
