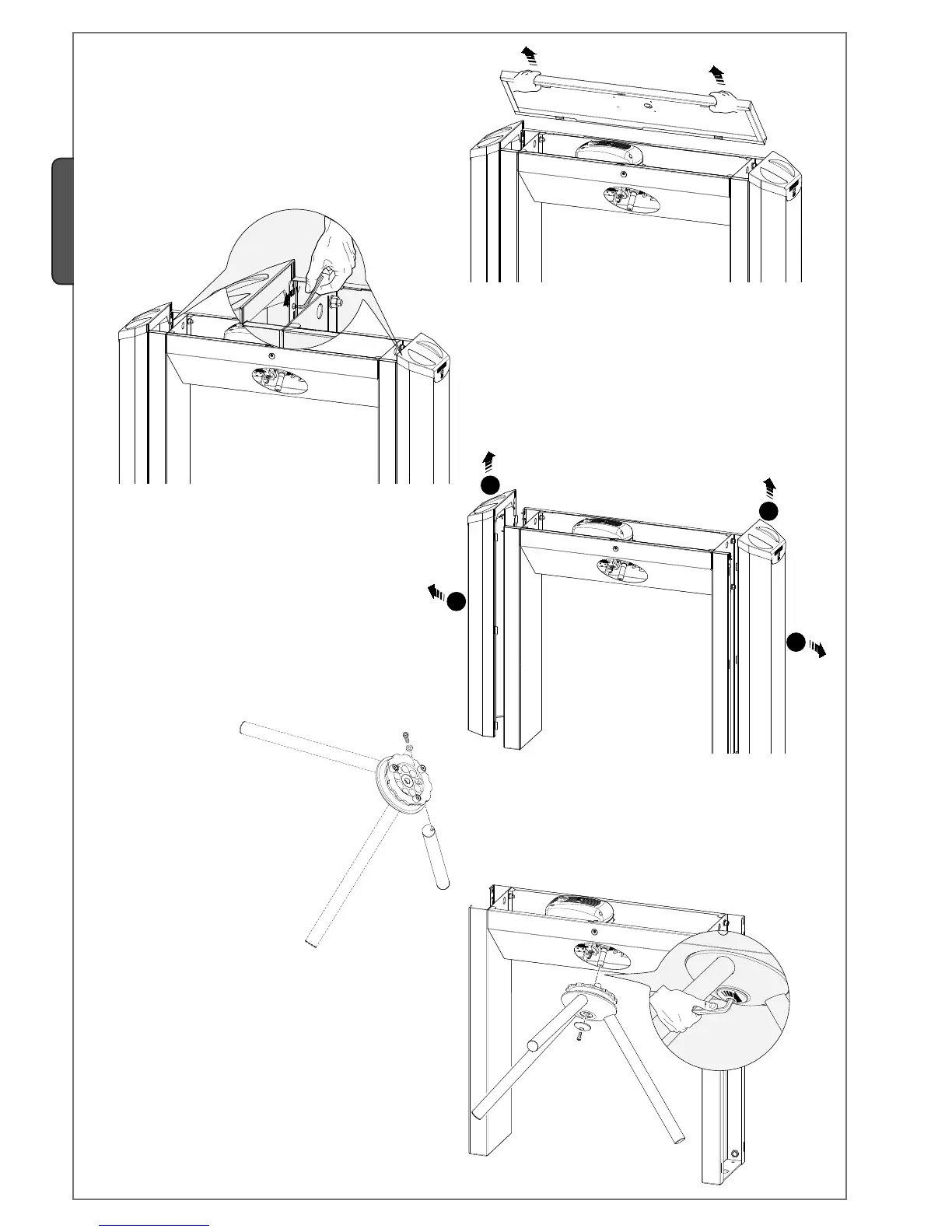

4) Remove the top cover.
Note: Lift the cover slightly tor easy removal.
5) Remove the two screws that fix the casing to the legs.
6) Remove the protective casings by gently lifting them. Then,
extract the casings.
6) Use the supplied M10 x 60 screws and flat washer to secure
the three arms to the tripod hub.
7) Slide the tripod onto the pin that protrudes out of the body,
secure it using the screw cap and M8 x 20 screw.
