CAME STYLO Series - Control Panel Wiring; ZL92 Control Panel Connections

1
1
M1 N1 ENC1 EB1 M2 N2 ENC2 EB2
M1
M2
EB ENC N M
EB ENC N M
Pag.
15
15 -
Manual code
:
119DV11
119DV11 ver.
1.0
1.0 03/2010
© CAME cancelli automatici s.p.a. -
The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
Electrical connections
24 V (DC) gearmotor with
delayed closing action
24 V (DC) gearmotor with
delayed opening action

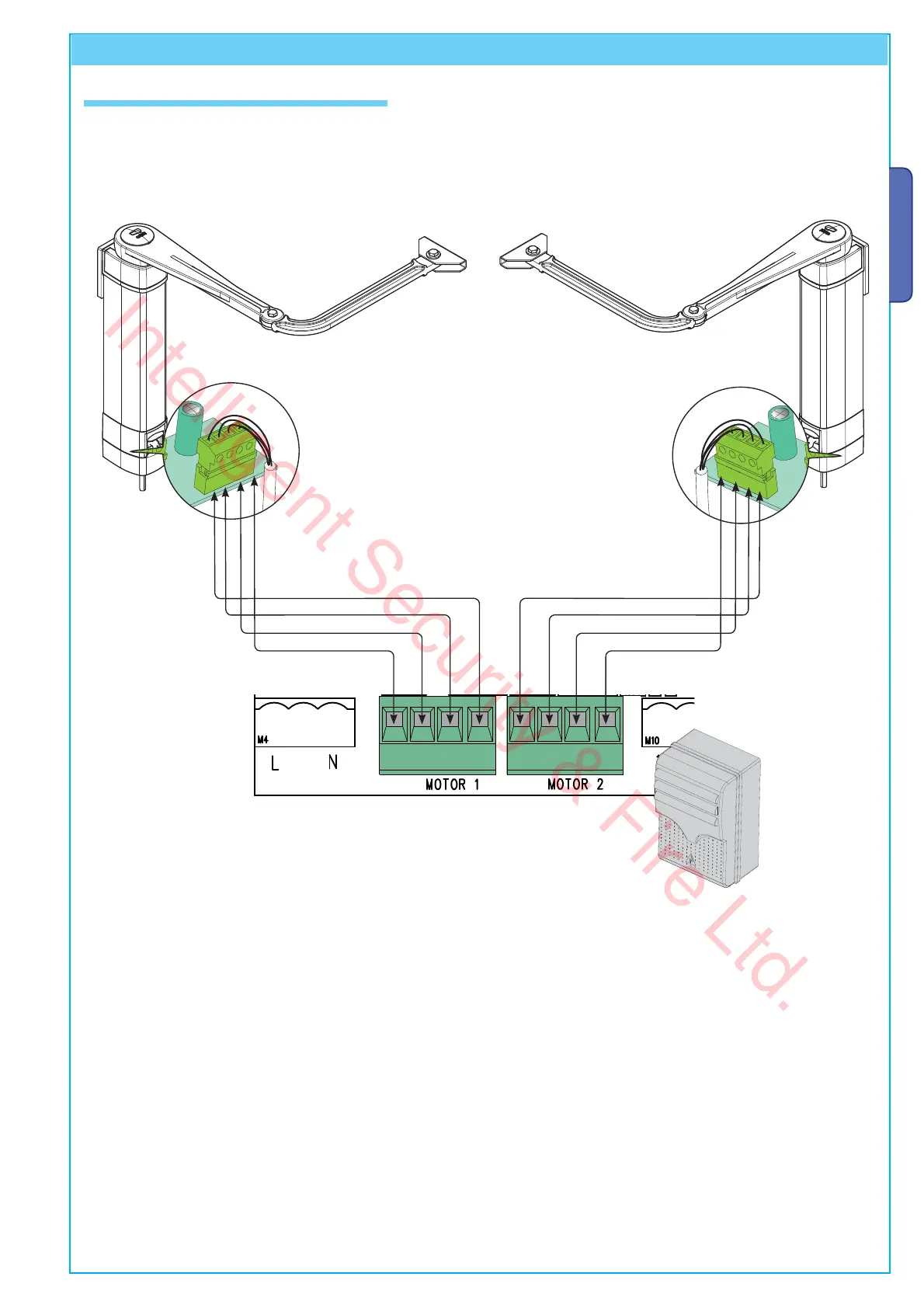

Electric connections to the ZL92 control panel
