CAME STYLO Series - Electrical Connections; Final Connections and Cap Closure; Manual Gearmotor Release

M N ENC EB
EB ENC N M
Pag.
14
14 - Manual code:
119DV11
119DV11 ver.
1.0
1.0 03/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

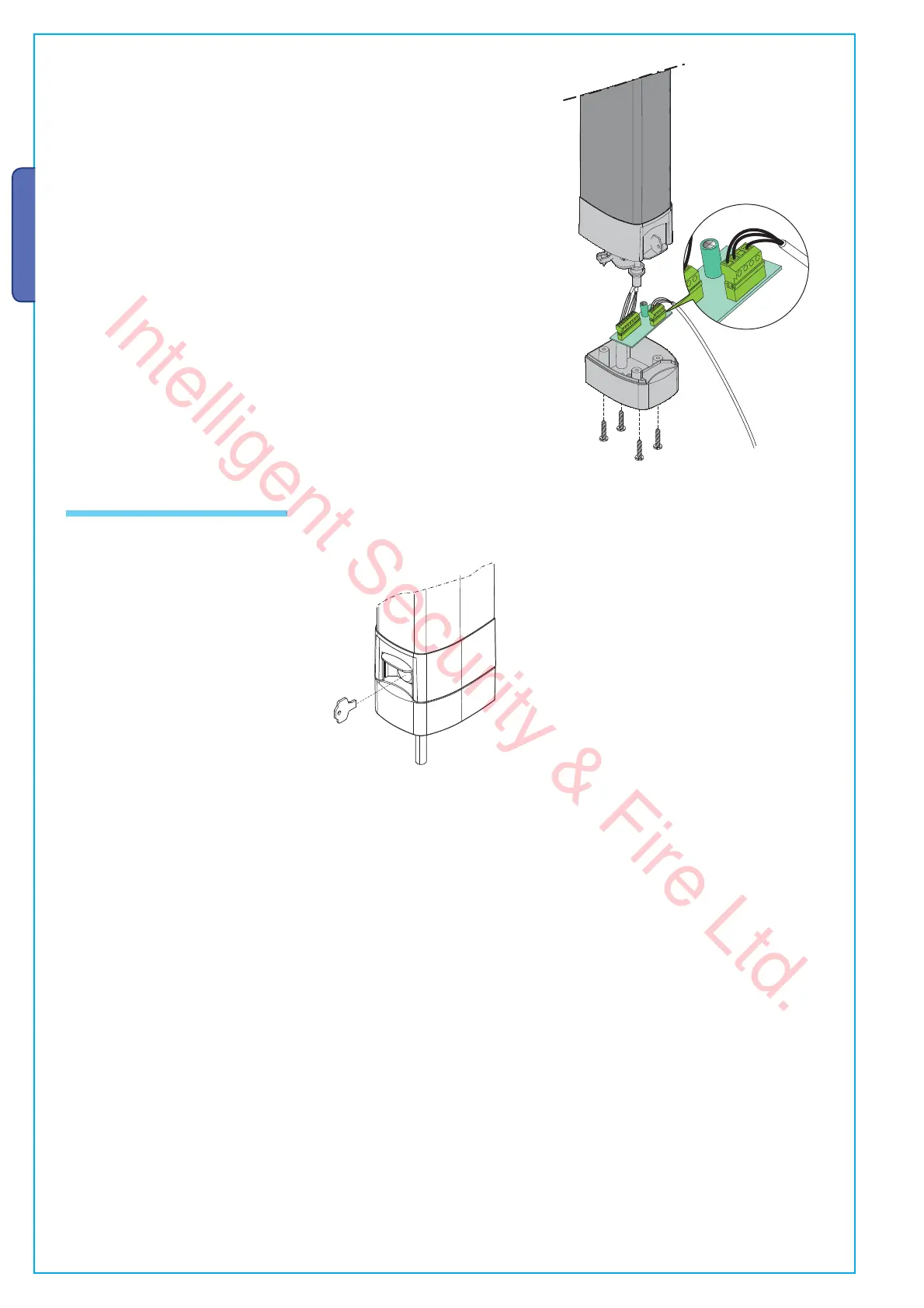

6 - Open the lower cap and make the necessary electrical connections;
- Close the lower cap again..
Cut off the main power and open the protective
trap door for release; insert the key and turn it.
Manually releasing the gearmotor
