CAME VER12 User Manual






-
+
,
.
CL.SENS.
ZL56
OP.SENS.
MOTOR FUSE 8A-F
2
1
ON
ACC. FUSE 3,15A-F
LINE FUSE 1,6A-F
OPEN
OP / CL
AF
26V17V 0V
MN
+
E-
ENC/RADIO
0V
230V
0
17
26
A.C.T.
SLOW.SENS
C.BOARD FUSE 315mA-F
L1T
L
L2T
N
10 11



 %   
#
#
0
0
p.
13
13 - Manual
FA00045-EN
FA00045-EN v.
2
2 - 09/2016- © Came S.p.A. - The contents of this manual may be changed, at any time, and without notice.

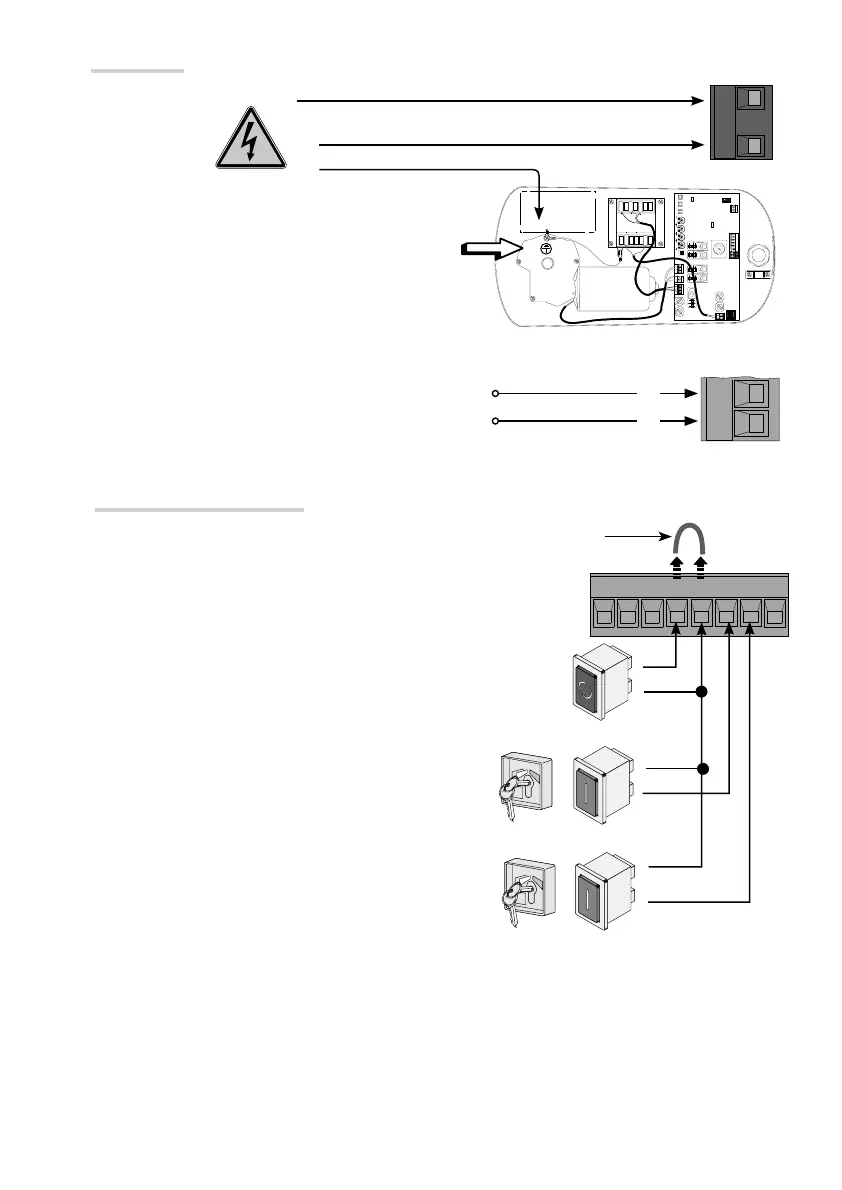

Power supply
230 V AC
50/60 Hz
Terminals for powering up accessories:
- 24 V AC - grid powered (230 V);
- 24 V DC when the emergency batteries are operating;
Overall allowed power: 40 W
Eyelet end-piece for grounding connection.
Command and control devices
Stop button (NC contact). Enables the door to stop and excludes the
automatic closing. To resume movement, use the control device.
OPEN-STOP-CLOSE-STOP sequential function from control
device (NO contact).
PARTIAL OPENING feature from command device (NO contact).
If a device is connected, remove the bridge.
