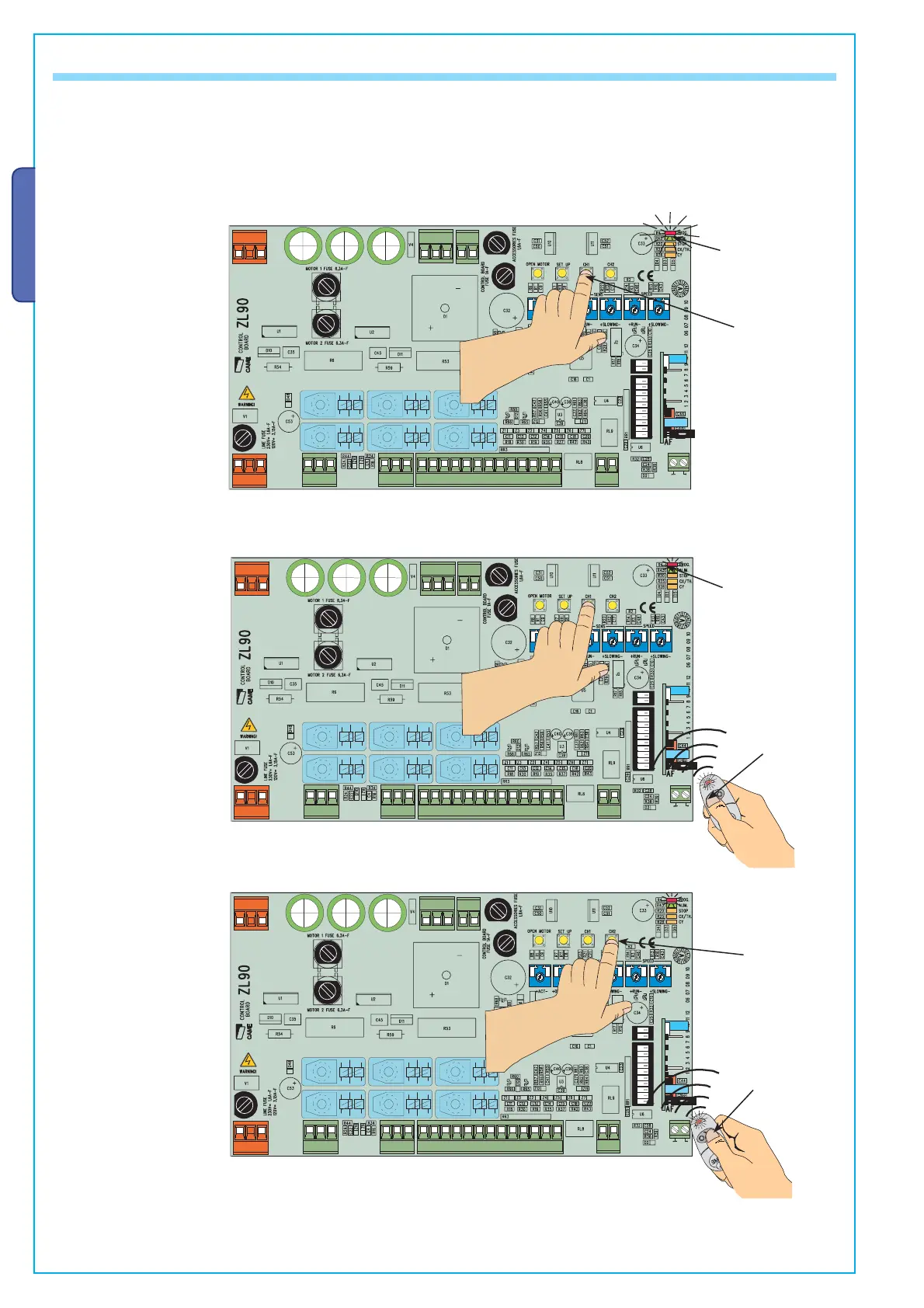

1) Keep the CH1 button
on the electronic card
pressed. The LED fl ashes.
2) Press the transmitter
button you wish to
memorise. The LED will stay
on to show memorisation
has been successful.
LED flashing
LED on
11.4 - MEMORISATION
CH1 = Channel for direct command to a function of the the gearmotor’s card, (“open only / “open-close-invert” or “open-stop-close-
stop” command, depending on the choice made on DIP switches 2 and 3).
CH2 = Channel for direct command an accessory device connected to B1-B2.
N.B.: to change code, repeat
the described procedure.
3) Repeat the points 1
and 2 procedures for the
“CH2” button associating
this to another button on
the transmitter.
