0
#8
#9
43
RX TX
./ # .#
TX
%
0
#8
#9
43
./ # .#
RX
TX
%
0
#8
#9
43
RX
%
0
#8
#9
43
RX
TX
Pag.
- Manual code:
319U16 ver.
0.
09/2007 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

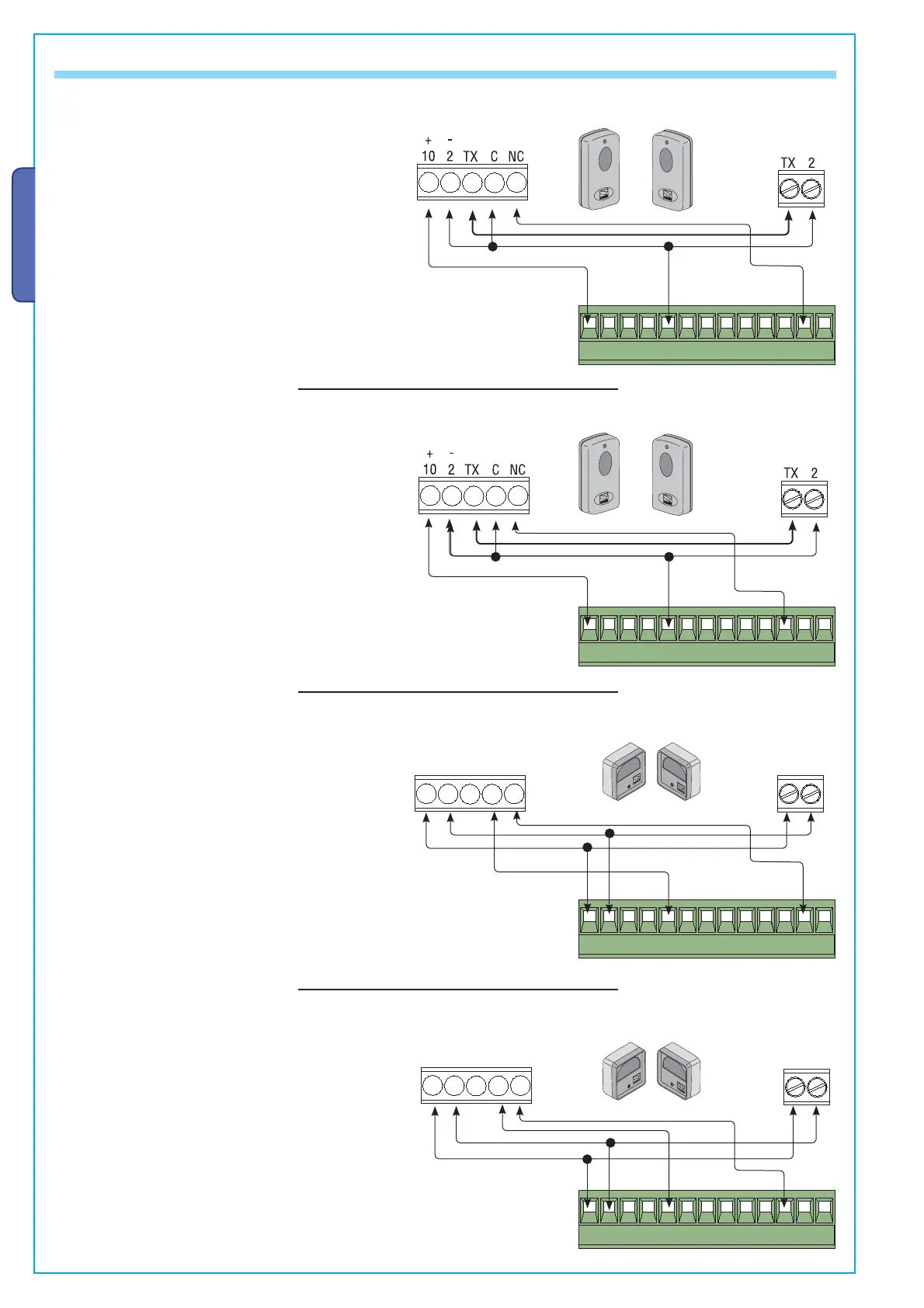

6.6 - SAFETY DEVICES
“Open during closing” (N.C.) socket
- Input for safety devices such as photocells, sensitive
edges and other EN 12978 compliant devices. When
gate leaves are closing, opening the contact causes
reversal until total opening is obtained.
“partial stop” (N.C.) socket
- input for safety devices such as photocells, sensitive
edges and other EN 12978-compliant devices. Halts mo-
ving gate leaves and causes them to automatically close
Dip 1 OFF - DIP 2 OFF (2 way dip)
- or -
“Stand-by Obstacle” (N.C.) socket
- Input for safety devices such as photocells, sensitive
edges and other EN 12978 compliant devices. Halts the moving gate leaves causing
them to start moving again once obstacle is removed.
Dip 1 OFF - DIP 2 ON (2 way dip)
“Open during closing” (N.C.) socket
“Partial Stop” (N.C.) socket
Dip 1 OFF - DIP 2 OFF (2 way dip)
- or -
“Stand-by Obstacle” (N.C.) socket
Dip 1 OFF - DIP 2 ON (2 way dip)
DIR photocells
DOC photocells
DIR photocells
DOC photocells
