11 Activating the remote control
AF card
Lock the radiofrequency card into the electronic card AFTER CUTTING OFF THE POWER SUPPLY (or after disconnecting the batte-
ries).
N.B.: the electronic card only recognises the radiofrequency card when the power is on.

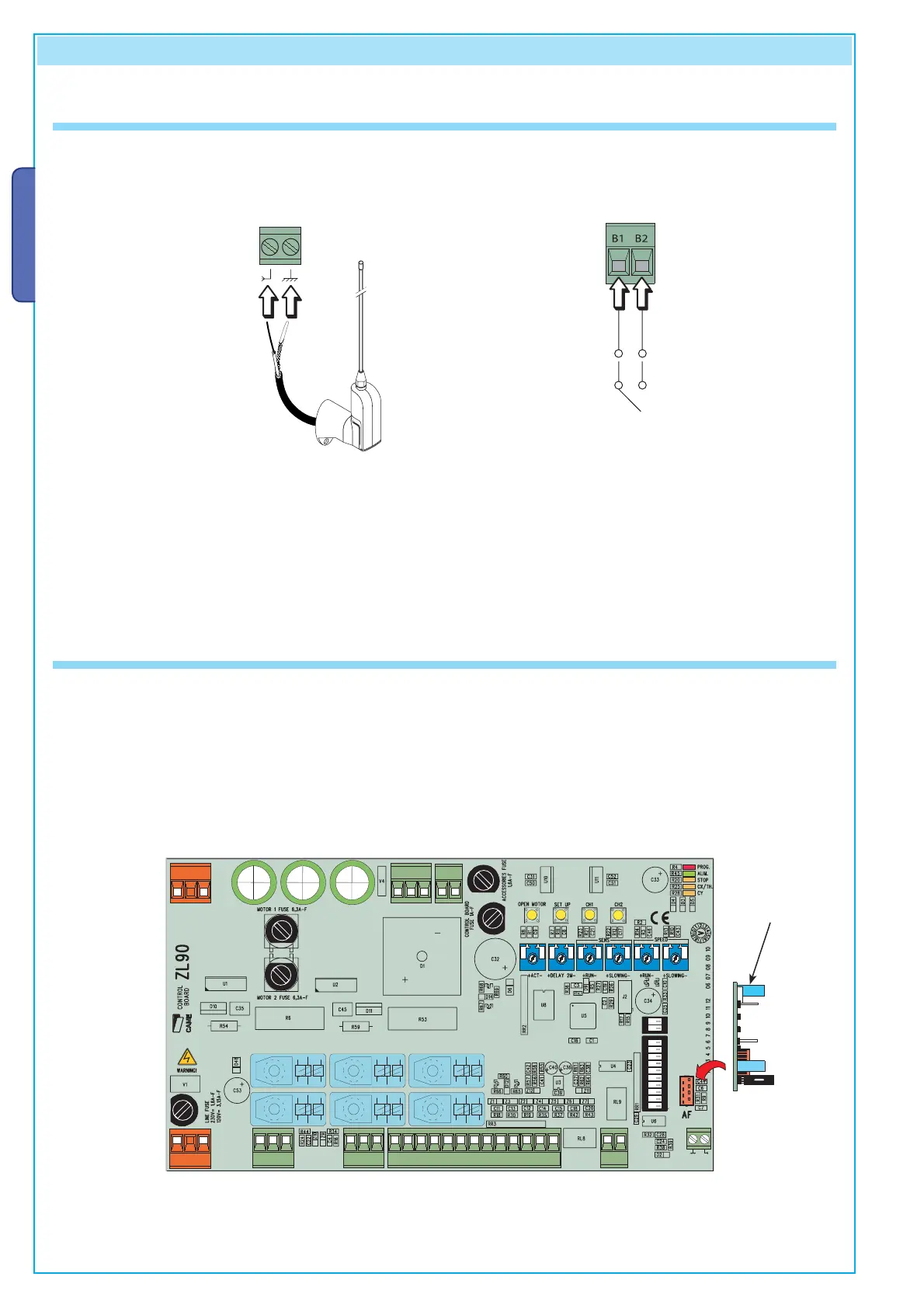

Connect the antenna’s RG58 cable to
the apposite terminals.
11.1 - ANTENNA
11.2 - RADIOFREQUENCY CARD
Possible output of the radio receiver’s
second channel (N.O. socket).
Socket rating: 5A-24V (d.c.).
