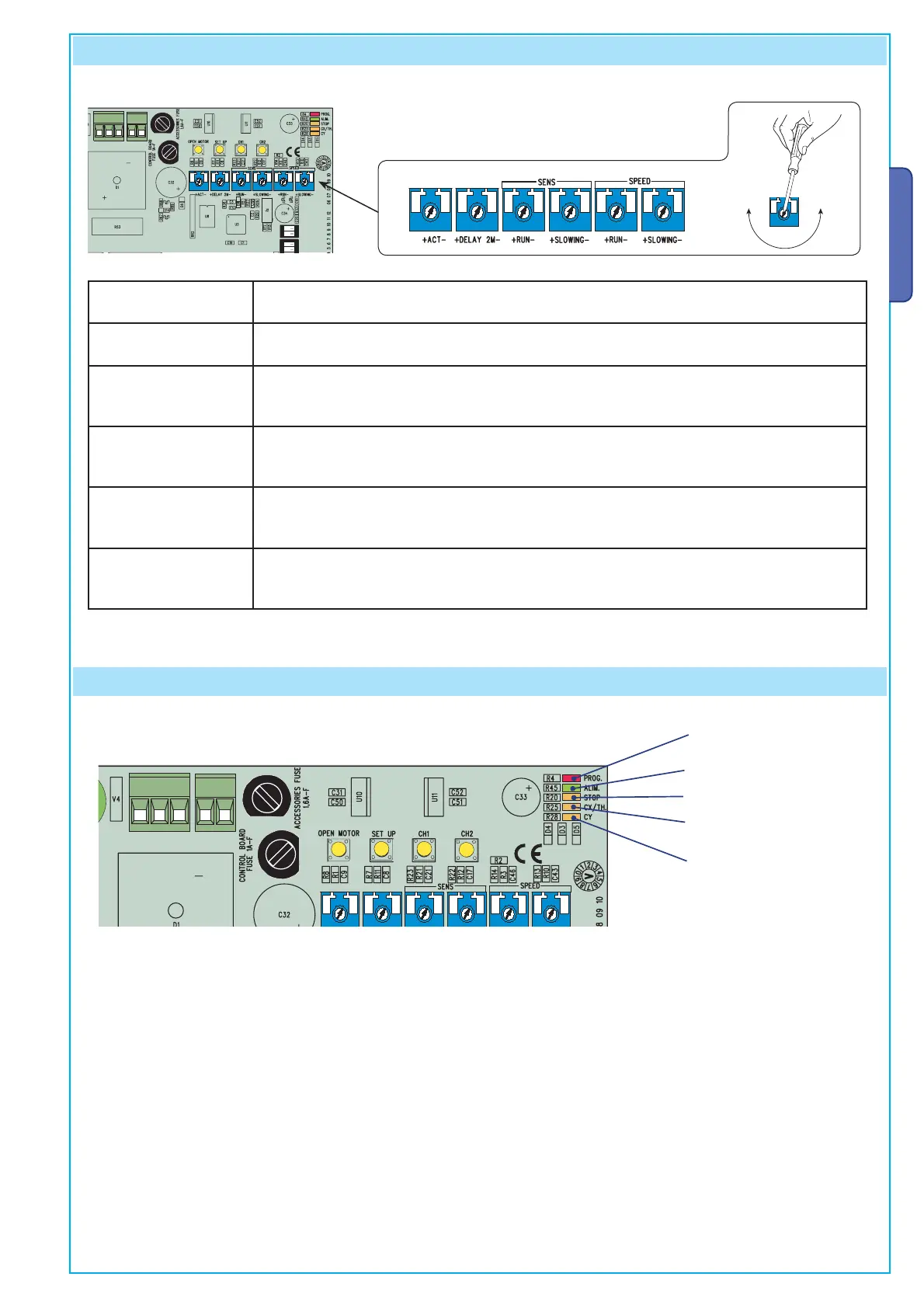

8 Adjustments
LIST OF CONTROL LED SIGNALS OF THE COMMAND AND SAFETY DEVICES:
- «PROG» Red coloured LED. Usually off.
It turns on or fl ashes when the transmitter is activating or when the system is memorising automatic adjustment.
- «ALIM» Green coloured LED. Usually on.
It signals proper power supply to the card.
- «STOP» Yellow coloured LED. Usually off.
Signals that the TOTAL STOP button is engaged.
- «CX/TH» Yellow coloured LED. Usually off.
Warns of objects present between the photocells (that are set to the REOPEN DURING CLOSING function).
- «CY» Yellow coloured LED. Usually off.
Warns of objects present between the photocells (that are set to the PARTIAL STOP or OBSTACLE STAND-BY function).
Led CY
Led PROG
Led ALIM.
Led STOP
Led CX/TH.
9 Signal LED
Trimmer
ACT
Adjusts the waiting time when gate is open. Once this time has elapsed, the gate closes automatically.
The waiting time can be adjusted anywhere between 1 and 150 seconds.
Trimmer
DELAY 2M
Adjustes the waiting time of the second motor during each closing run. The waiting time can be
adjusted anywhere between 1 and 16 seconds.
Trimmer
-- SENS --
RUN
Adjusts the amperometric sensitivity which controls the power developed by the motor during motion;
if the power exceeds the adjusted level, the system sets in motion to invert the direction of motion.
Trimmer
-- SENS --
SLOWING
Adjusts the amperometric sensitivity which controls the power developed by the motor during slowing
downs; if the power exceeds the adjusted level, the system sets in motion to invert the direction of
motion.
Trimmer
-- SPEED --
RUN
Adjusts the gate-leaf running speed when opening or closing.
Trimmer
-- SPEED --
SLOWING
Adjusts the gate leaf’s slowing speed at the end of the stroke when opening and closing.
