FROG J
A1824
A1824
FROG J
7OFF = FROG J7ON = A1824
-
.
%.#
Pag.
12 - Manual code:
319U16 ver.
0.
09/2007 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

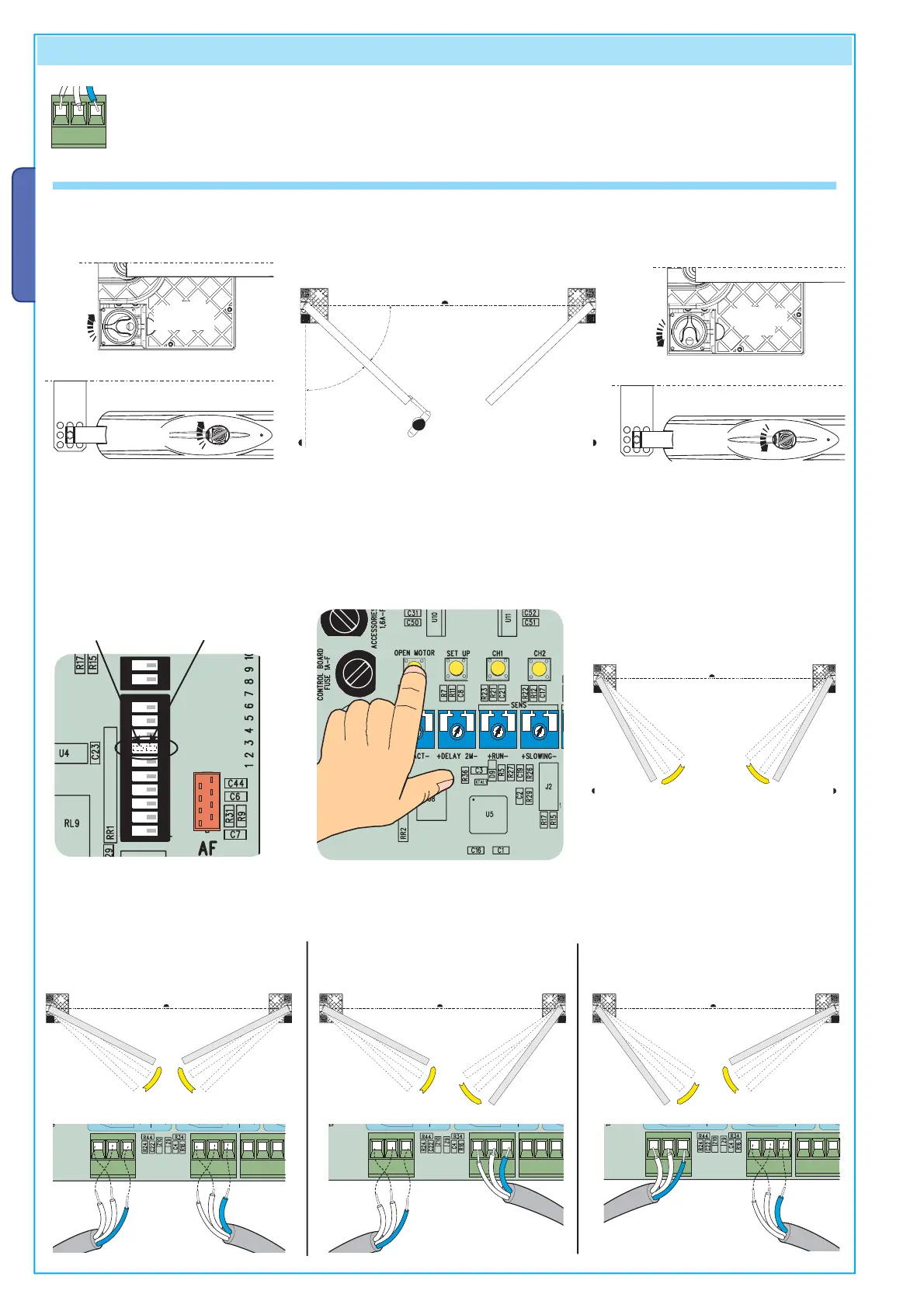

10 Automatic calibration of the gate run
- Release both gearmotors (see paragraph on “manual release” in the installation manual), position the gate leaves to be half-way
open, block the gearmotors again.
10.1 - PRELIMINARY ASSESSMENT OF THE DIRECTION OF MOVEMENT DURING OPENING
Otherwise:
1) if the gate leaves close, invert the M-N
phases on either of the gearmotors;
2) if the gate leaf of the fi rst gearmotor
closes, invert the M1-N1 phase.
3) if the gate leaf of the second gearmotor
closes, invert the M2-N2 phase
Warning! With single-leaf gates, connect the gearmotor to terminals M2-N2-ENC2.
The calibration procedures are the same as those described below
Warning! For Frog J, set Dip switch n. 7 to OFF.
For A1824, set DIP switch n. 7 to ON.
Briefl y press the “OPEN MOTOR” button. Check that both gate leaves perform the opening movement.
