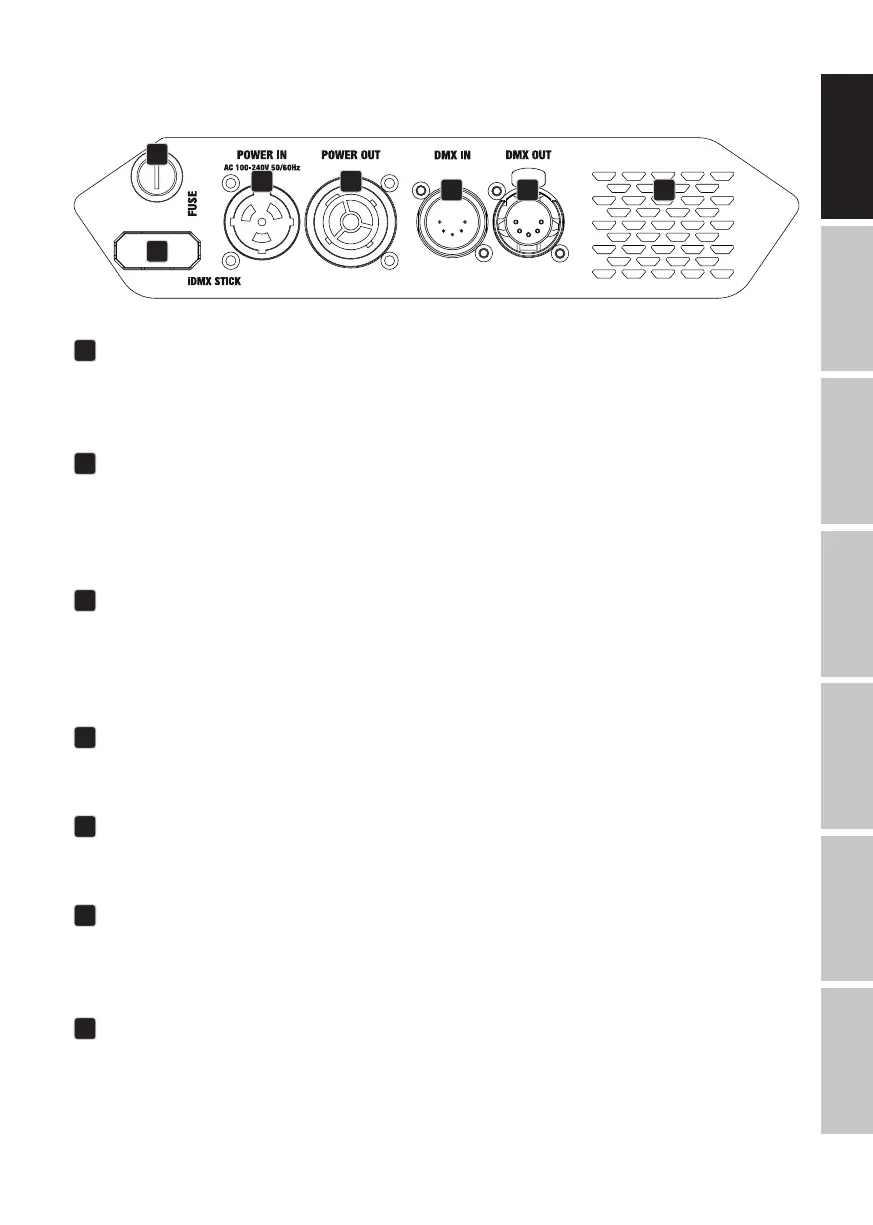

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS
1 2
3
4 5
6
7
1
POWER IN
Power Twist mains input socket. Operating voltage 100–240 V AC/50–60 Hz. Use the included
power cable.
2
POWER OUT
Power Twist mains output socket. Enables power supply to other CAMEO lights. Ensure that the
total power consumption of all connected devices does not exceed the value specified on the
device in amperes (A).
3
FUSE
Fuse holder for 5 × 20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the
same type and value. In the event of repeated fuse failure, please contact an authorised service
centre.
4
DMX IN
Male 5-pin XLR socket for connecting a DMX controller (e.g. DMX console).
5
DMX OUT
Female 5-pin XLR socket for forwarding the DMX control signal.
6
iDMX STICK
Connection for the optional iDMX stick for wireless DMX operation (insert the iDMX stick with the
antenna facing upwards). Note the wireless settings in the Settings menu.
7
AIR VENTS
To prevent damage to the device, do not cover the ventilation openings on the back and ensure
that air can circulate freely.
