Campbell CS110 - Page 62

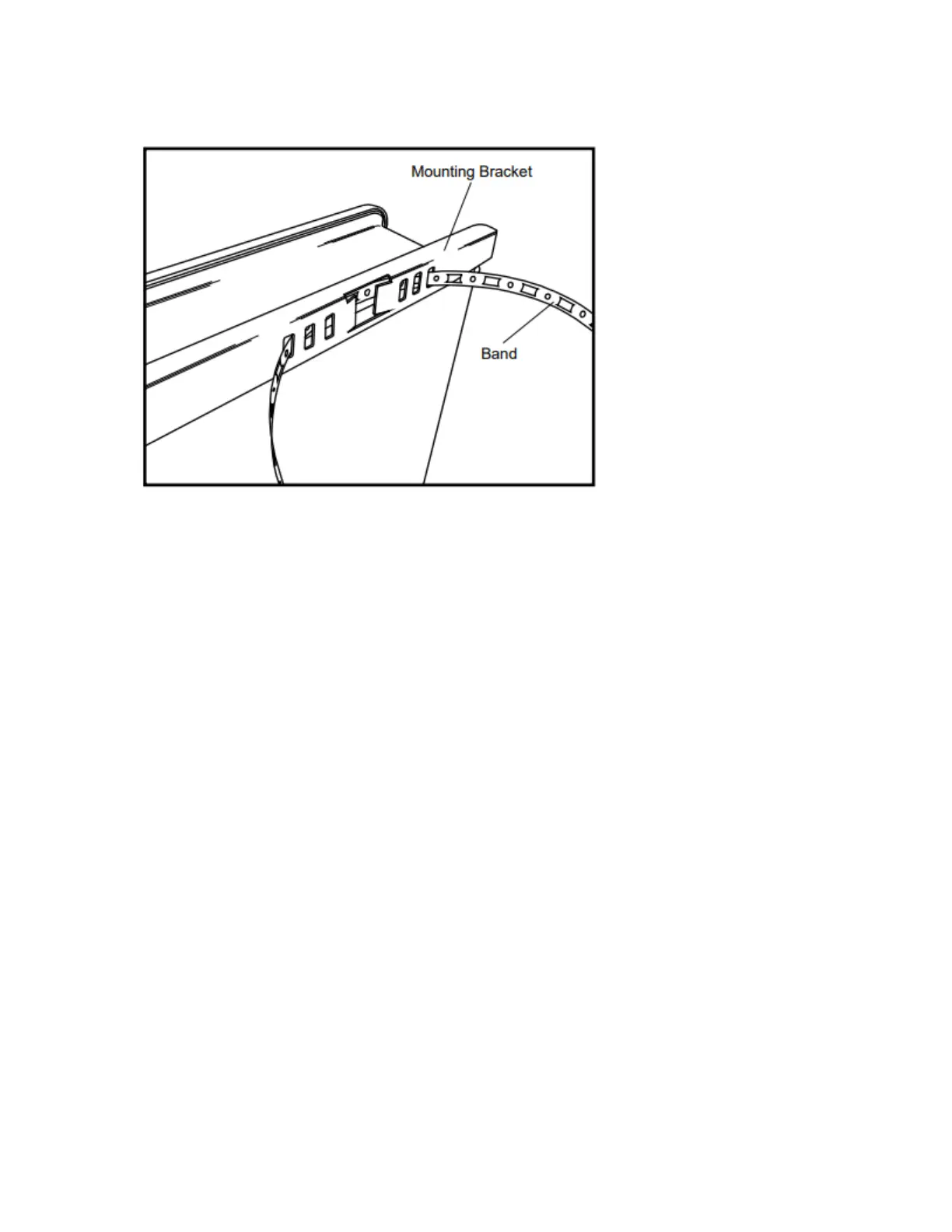

2. Feed a metal band through the openings in each bracket as shown in the following figure.
Use the closest set of holes for smaller poles and the farthest set of holes for larger poles.
3. Position the enclosure on the side opposite the CS110.
4. Place the enclosure with the top 26 inches above the ground.
