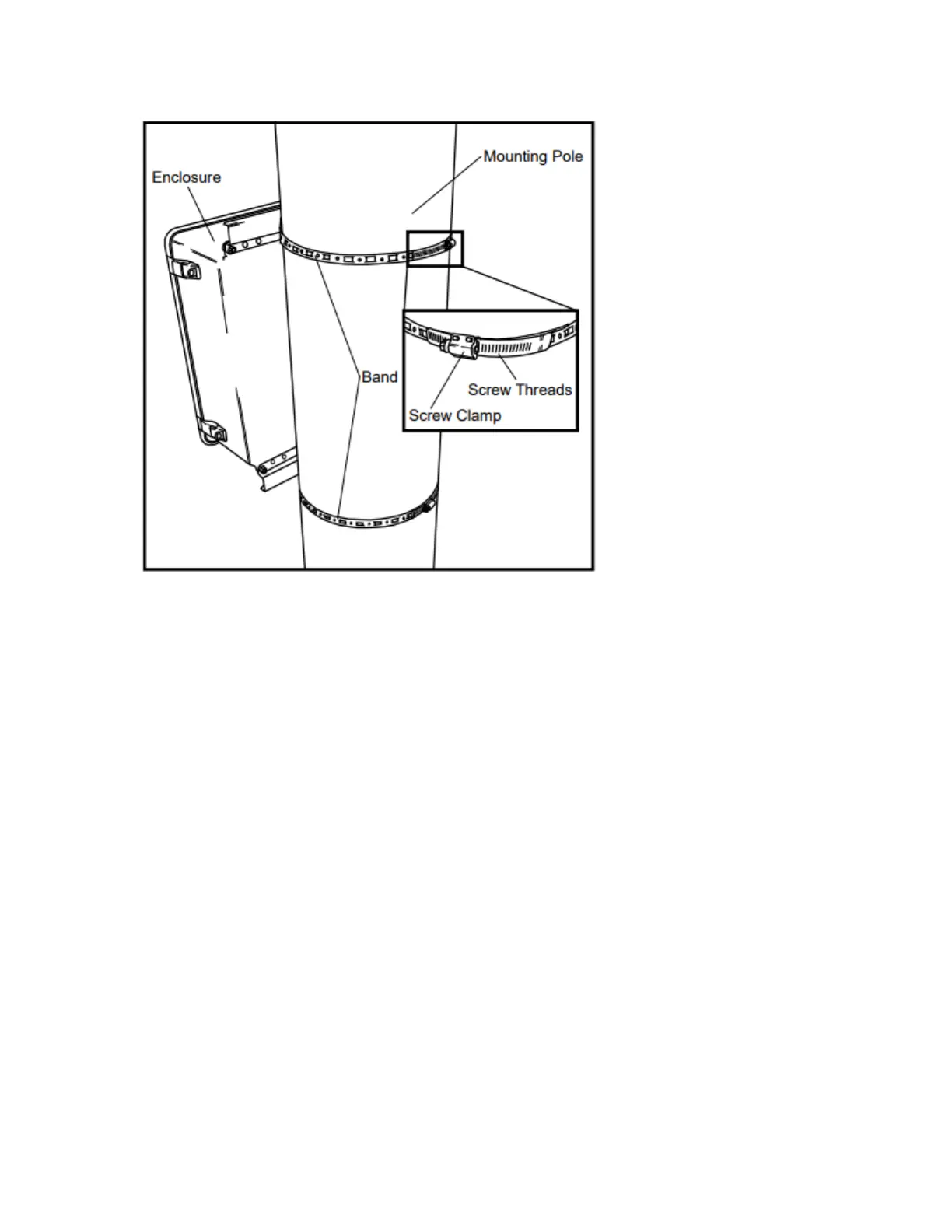

5. Insert the tab on the end of the screw threads into the hole at one end of the upper strap.
6. Pull the strap tight around the pole to determine which hole to insert the screw clamp at
the other end of the strap. Insert the clamp into this hole.
7. Use metal shears to remove any excess strap, leaving a small amount for adjustments.
8. Insert the screw threads into the screw clamp and tighten, using a flathead screwdriver or
nut driver.
9. Repeat steps 5 through 8 for the lower strap.
Route the 12 AWG grounding wire from the brass grounding clamp on the ground rod to the
enclosure grounding lug. Strip one inch of insulation from each end of the wire. Insert the end of
the wire into the grounding lugs and tighten.
