42

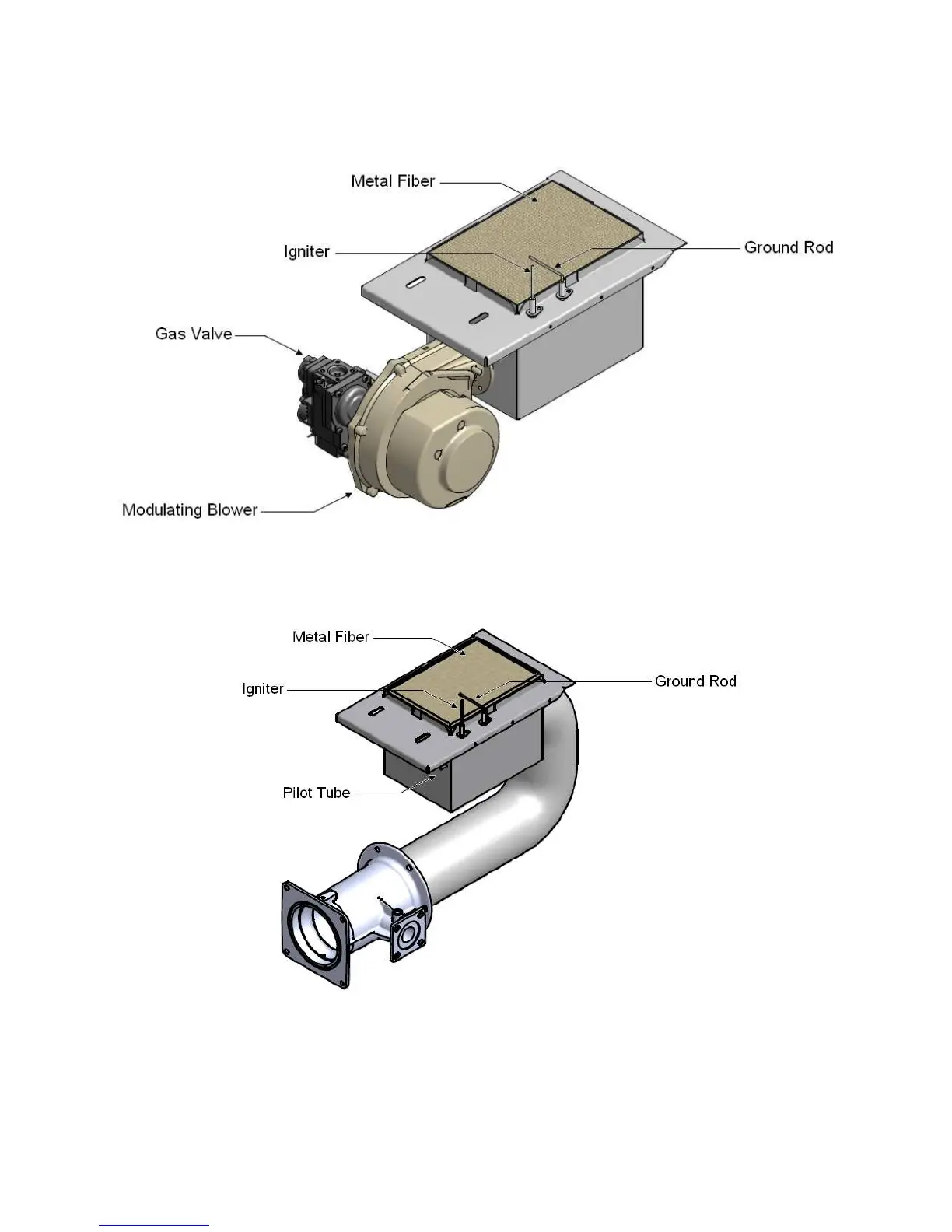

Figure 24: MicoFlame 60 – 300 Burner Assembly
Figure 25: MicoFlame 400 – 600 Burner Assembly
If burner characteristics do not match the above, check for proper air box pressure. Also look for
accumulation of lint and other foreign material at fan air inlets. Typical air box settings are as follows:
