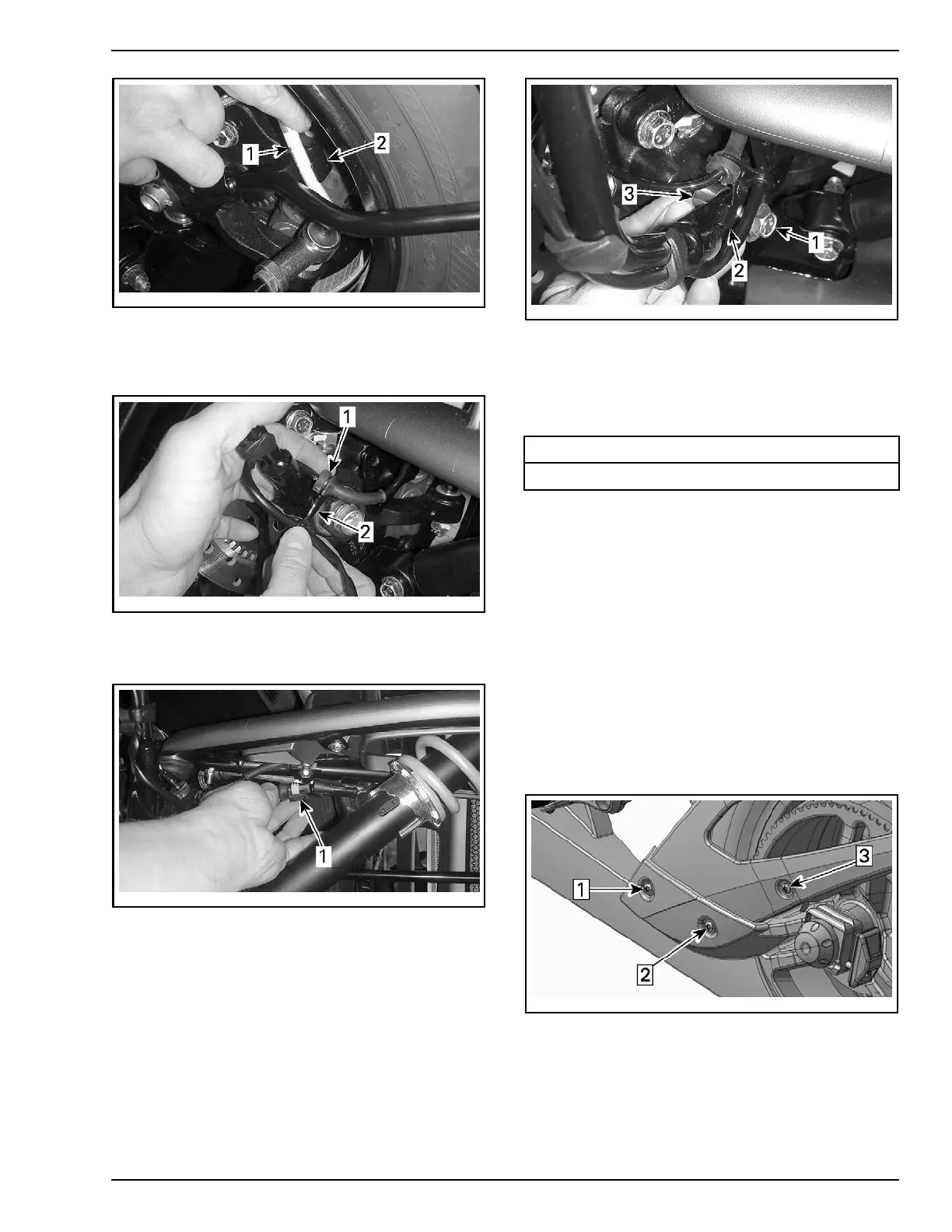

PARTSTOBEINSTALLED
rbl2011-002-012_a
1. Brake hose
2. Fender hook
5. Properly insert cable grommet on harness
bracket.
rbl2011-002-013_a
1. Cable grommet
2. H arness
bracket
6. Connect fender light connector.
rbl2011-002-014_a
1. Fender light connector
7. Secure fender support on wheel hub.
7.1 Install the harness bracket over the fender
support and secure them on wheel hub us-
ing a M8 x 35 hexagonal flange screw and
a sleeve from the PDI kit.
rbl2011-002-015_a
1. M8 x 35 hexagonal flange screws
2. Sleeves (one hidden)
3. Harness bracket
7.2 Install 3 other M8x 35 hexagonal flange
screws and sleeves to complete the
fender support installation.
FENDER SUP
PORT RETAINING SCREW
24 N•m (18 lbf•ft)
8. Carry out
thesameprocedurefortheother
side.
Rear Fender
1. Remove rear fender packaging.
2. Connect
brake light connector.
3. Secure brake light harness inside RH rear
fender support using 3 locking ties (from PDI
kit).
NOTE: Retainers have been installed at factory to
hold locking ties.
4. Loosen
M6 x 2 0 screws, flat washers and M6
nuts fr
om LH and RH fender support.
rbs2011-008-002_a
LEFT SIDE FENDE R SUPPORT
Step 1: Loosen 1st screw
Step 2: Loosen 2nd screw
Step 3: Loosen 3rd screw
5. Pre-assemble rear fender to its LH and RH sup-
ports with M6 x 2 0 screws, flat plastic washers
and M6 nuts (on back side).
PREDELIVERY 2012-1 11 / 37
