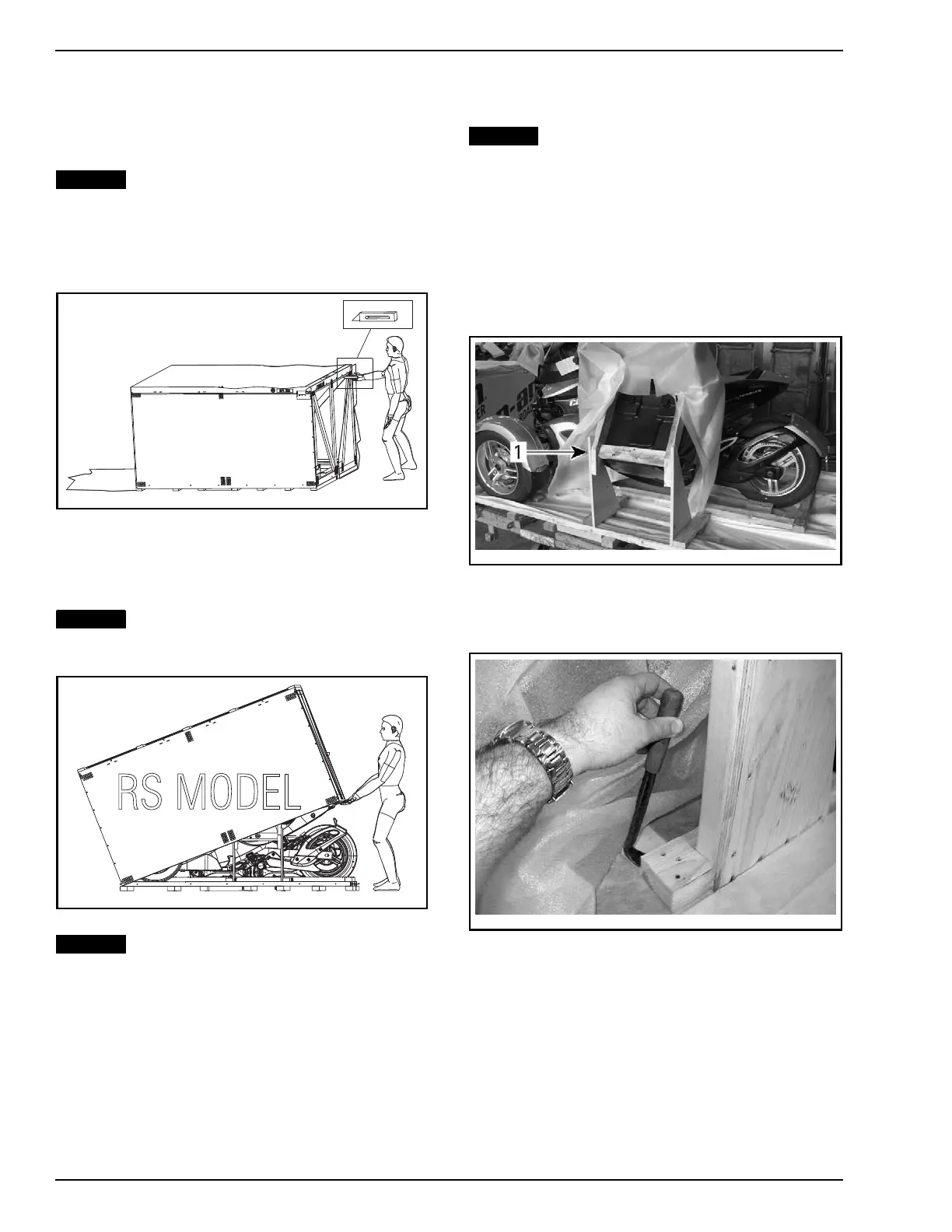

UNCRATING
UNCRATING
Crate Cover Removal
NOTICE
Allowing the crate to drop may cause
serious damage to vehicle.
1. Position the crate on a firm, level surface.
2. Carefully cut both ends of crate tarpaulin to lo-
cate the rear of vehicle.
rbl2010-002-001
CUT BOTH END OF CRATE TARPAULIN
3. Remove all screws holding crate cover to crate
base.
4. Tilt cover from the rear side of the v ehicle.
NOTICE
Do not raise cover vertically. Tilt
cover located on the rear side of the vehicle.
Refer to illustration.
rbl2010-002-002
TILT COVER THEN PULL IT
NOTICE
The crate cover must be pulled to-
ward the outside while lifting it to avoid to
damage vehicle.
NOTE: Screws that are used are Robertson
†
#2
type (or equivalent) that require the use of an ap-
propriate screwdriver.
Sub-crates Removal
NOTICE
Be careful not to scratch the cover
bumper and the front fascia.
NOTE: The sub-crates are located on each side of
the vehicle.
1. Remove protective foam from vehicle.
2. On LH side, remove all screws holding front
storage compartment sub-crate.
3. Assisted by another person, carefully lift up the
LH sub-crate.
rbl2008-003-300_a
TYPICAL - LH SIDE
1. Sub-crate that contains front storage compartmen t
4. On RH side, remove all nails holding front
fender sub-crate.
rbs2011-014-001
NAILS REMOVAL
5. Assisted by another person, carefully lift up the
RH sub-crate.
