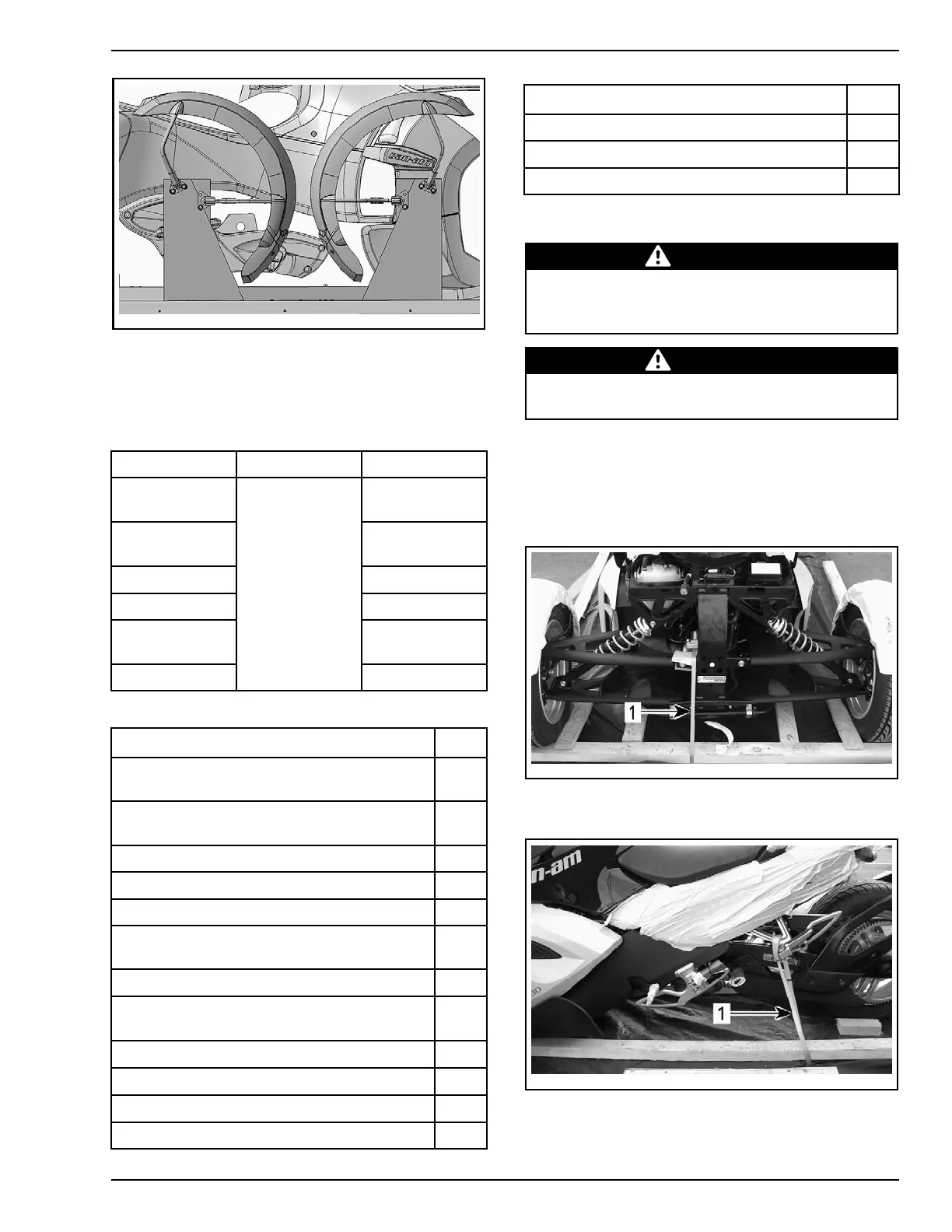

UNCRATING
rbs2011-014-002
TYPICAL - RH S
IDE
Sub-crate that contains front fender
Parts Check
Ensure that the crate includes the following items
(inside front storage compartment):
DESCRIPTION MODEL QTY
Operator's
guide
1
Predelivery
check list
1
Safety DVD
1
Predelivery kit
1
Service center
panel
1
Wheel caps
All
2
The predelivery kit includes the following items:
DESCRIPTION (LOCATION) QTY
M6 X 20 hexagonal flange screw (front
storage c ompartment)
4
M6 X 12 hexagonal flange screw (front
storage c ompartment)
2
M6 panel nut (body panels)
4
M6 x 20
Torx screw (body panels)
4
Plastic w asher (body panels)
4
M8 x 35 hexagonal flange screw (front
fender)
8
Sleeve (front fender)
8
M6 X 20
hexagonal flange screw (AAPTS
sensor)
1
M6 cag
ed nu t (AAPTS se ns or)
1
Foam (AAPTS sensor)
1
Locking tie (rear fender) 3
M6 X 2
0 To rx screw (rea r fender)
4
DESCRIPTION (L
OCATION)
QTY
Plastic washer (rear fender)
4
M6 elastic flange nut (rear fender)
4
Battery insta
llation kit (2 bolts and 2 nuts)
1
Vehicle Removal
WARNING
SE5 models are automatically set in neutral
position when engine is stopped. Always ap-
ply parking brake before working on vehicle.
WARNING
No one should be standing in front or at the
back of the vehicle while straps are being cut.
NOTE: Parki
ng brake pedal brakes only the rear
wheel. Pres
s it down to operate. The parking
brake peda
l is behind the operator's left footpeg.
1. Remove straps retaining front vehicle to crate
skid.
rbl2008-003-201_a
1. Front straps
2. Remove straps on the side of vehicle.
rbl2008-003-202_b
1. Side straps
PREDELIVERY 2012-1 5 / 37
