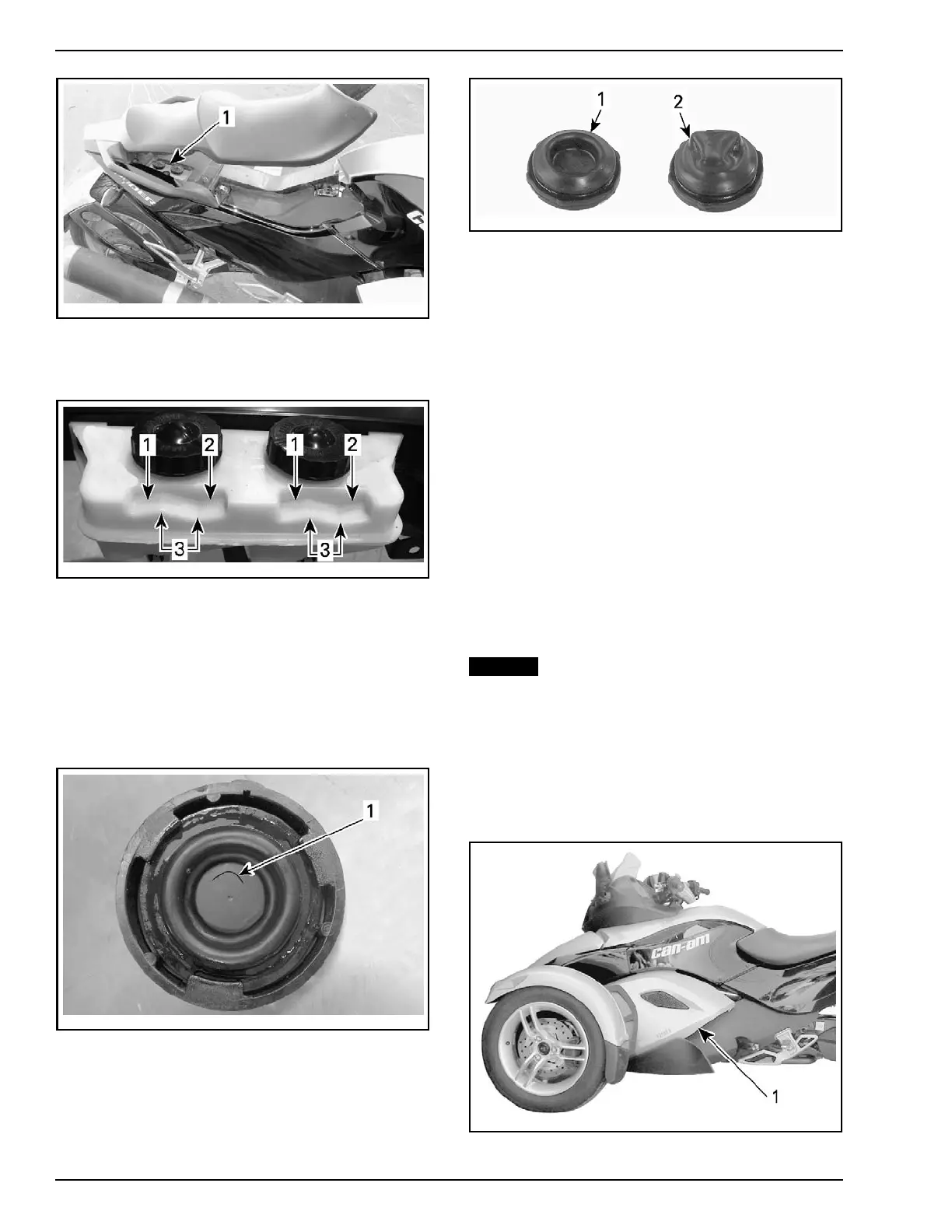

FLUIDS
rmo2008-001-040_b
1. Brake fluid reservoir caps
3. Check brake fluid level in both reservoirs.
4. Ensure that fluid is above the MIN. mark.
rmo2008-001-082_a
TYPICAL
1. Brake fluid MAX. level mark
2. Brake fluid MIN. level mark
3. Operatin
grange
5. If necessary, add recommended brake fluid.
6. Immedia
tely wipe out spills if necessary.
7. Prior to installing brake fluid reservoir caps:
– Check th
at V slit is in good condition.
– Ensure diaphragm are properly positioned.
rbg2008-003-002_a
TYPICAL
1. V sli
t
vmr2008-033-062_a
TYPICAL
1. Correct position
2. Wrong position
8. Reinstall both reservoir caps.
9. Close seat and ensure it is fully latched.
Engine Oil
Recommended Engine Oil
NOTE: For SM5 models, the same oil lubricates
the engine, the gearbox and the clutch.
NOTE: For SE5 models, the same oil lubricates the
engine, the gearbox, the clutch and the HCM (hy-
draulic control module).
Use
XPS 4-STROKE BLEND OIL (SUM MER GRADE)
(P/N 293 600 121)
.
If not available, use a 5W40 semi-synthetic (mini-
mum) or synthetic motorcycle oil meeting the re-
quirements for API service SL, SJ, SH or SG clas-
sification. Always check the API service label on
the oil container.
NOTICE
To avoid damaging the clutch, do not
use a motor oil meeting the API service SM or
ILSAC GF-4 classification. Clutch slippage will
occur. Motorcycle oils designed for use with a
wet-clutch are the best alternative.
Vehicle Preparation for Engine Oil Level
Verification
1. Remove LH middle side panel using clips.
rmo20
08-001-024_a
1. Middle side panel
16 / 37 2012-1 PREDELIVERY
