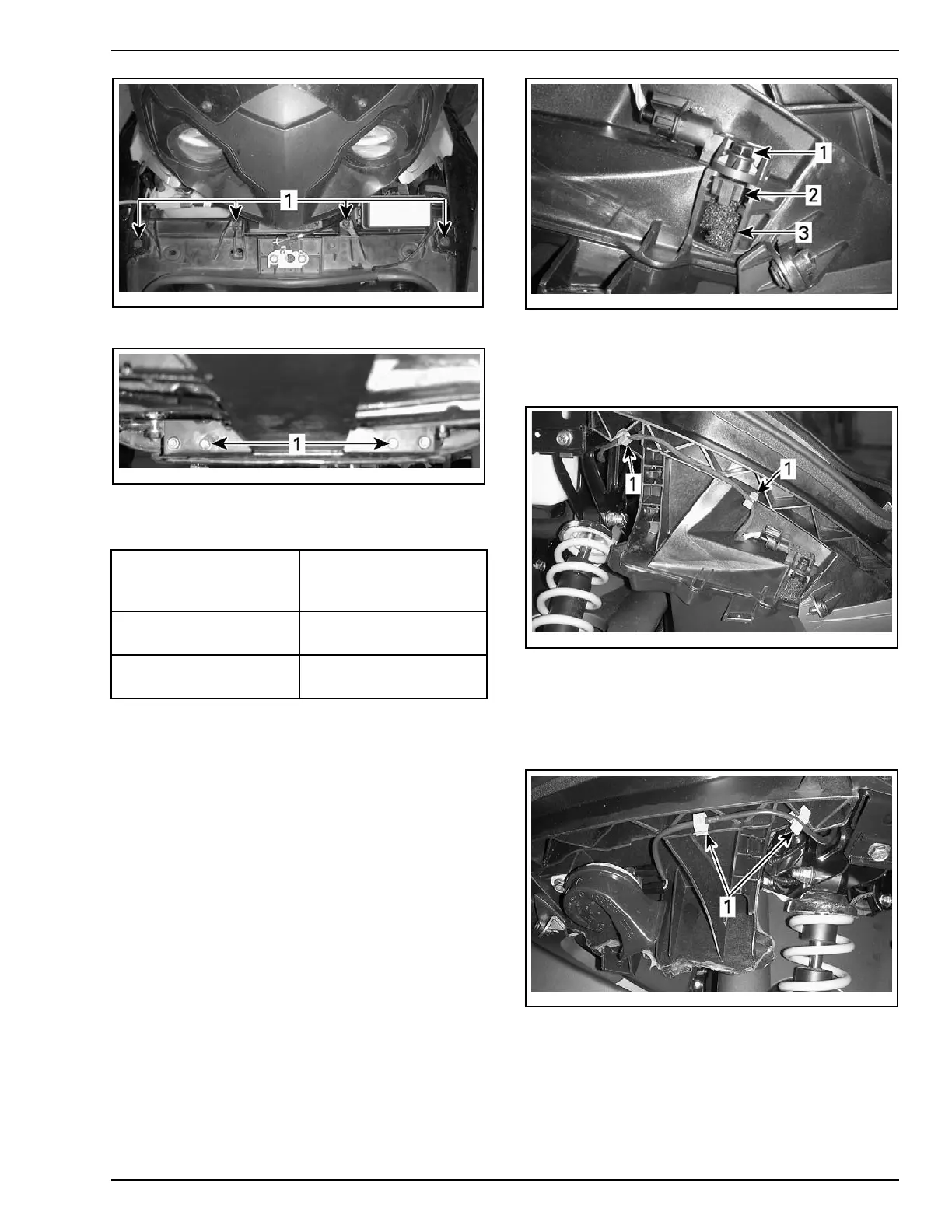

PARTSTOBEINSTALLED
rbl2008-003-212_a
TOP SCREWS
1. M6 X 2 0 hexagonal flange screws
rbl2008-003-213_b
BOTTOM SCREWS
1. M6 X 1 2 hexagonal flange screws
NOTE: Install all screws before tightening them.
FRONT STORAGE
COMPARTME
NT
SCREW
TORQUE
M6 X 20 hex
agonal
flange screw
4.5 N•m (40 lbf•in)
M6 X 12 hex
agonal
flange screw
10 N•m (89 lbf•in)
AAPTS (A
mbient Air Pressure
and Temperature Sensor)
Installation
1. Add foam provided in the PDI kit to protect the
tip of the AAPTS.
2. Secure
it using M6 X 20 hexagonal flange screw
and M6
caged nut (included in the PDI kit).
rbl2008-003-211_a
AAPTS SENSOR INSTALLATION
1. M6 X 20 hexagonal flange screw
2. M6 caged nut
3. Foam
3. Route cable through retaining guide clips.
rbl2011-002-007_a
1. Cable retaining clips
Horn Con
nection
1. Connec
t horn connectors.
2. Route cable through the retaining guide clips.
rbl2011-002-008_a
1. Cable retaining clips
CE Models
If necessary, remove horn from v ehicle to ease
connector installation.
