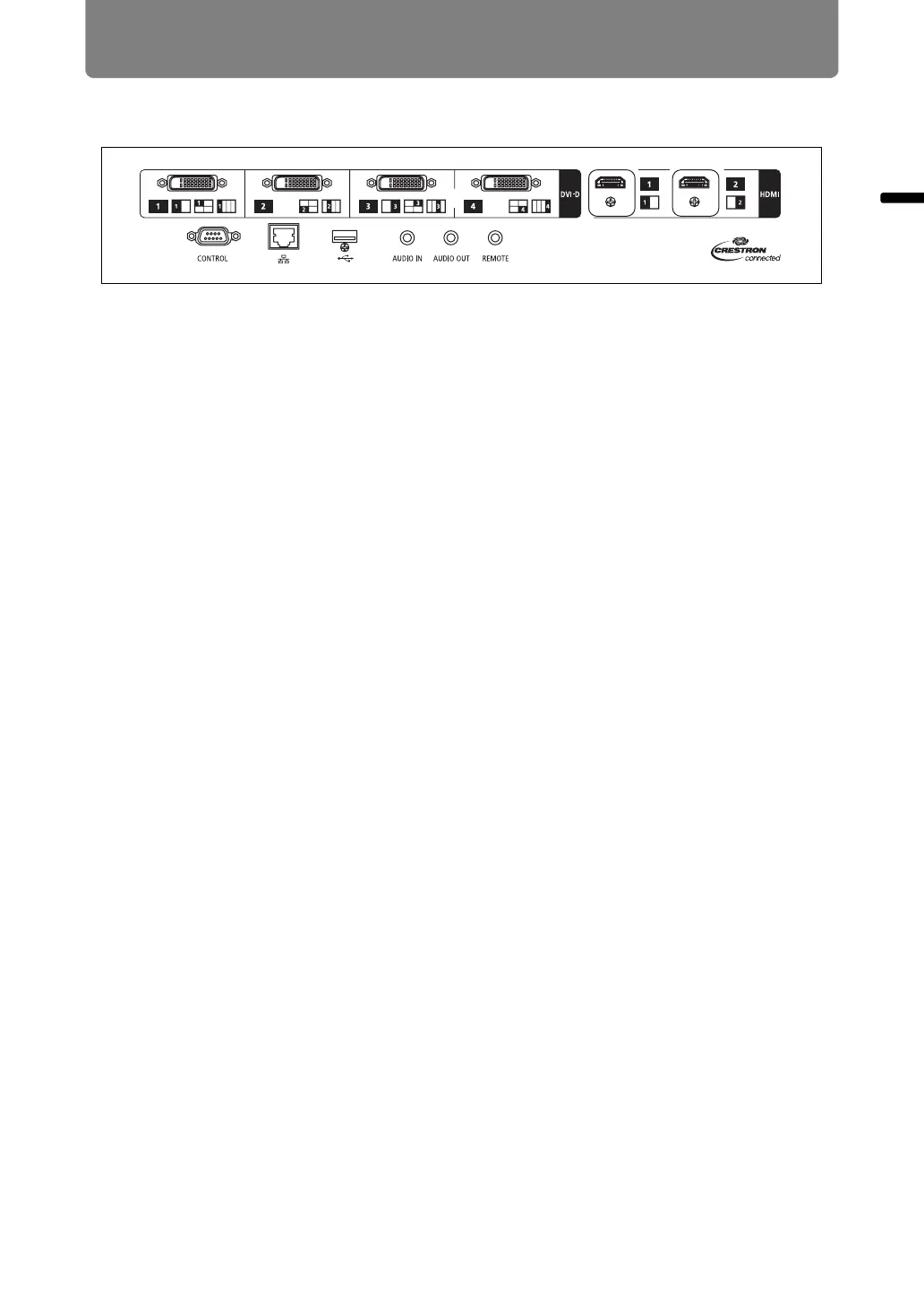

Input Terminal
(1) Digital PC / DVI-D terminal (DVI-D) (P53)
Connects the external monitor output from a computer.
Receives digital PC signal (Digital PC).
(2) HDMI terminal (HDMI) (P53, P54)
Receives digital video signals (HDMI).
Carries both video and audio signals across a single cable.
(3) Service port (CONTROL) (P177)
Used for executing user commands (P178 – P179).
(4) LAN port (P122)
Connects the LAN cable (shielded twisted pair).
Used to connect the projector to a network.
(5) USB port (P119)
Connects a USB flash drive. Used for firmware updates.
(6) AUDIO IN terminal (AUDIO IN) (P53, P54)
Receives audio input. Audio supplied to this terminal is played through the
internal speaker when you select [Audio in] as the source audio terminal for
the selected source video.
(7) AUDIO OUT terminal (AUDIO OUT) (P53, P54)
Outputs the audio to external AV equipment. This outputs the audio signal that
corresponds to the projected image signal.
(8) Terminal for wired remote control (REMOTE) (P33)
This terminal is used to connect the remote control using a cable.
(6) (7) (8)(5)
(1)
(3) (4)
(2)
