Technology > Pickup / Feed System > Buffer Delivery Area Control/Function > Delivery Control
Technology > Pickup / Feed System > Buffer Delivery Area Control/Function > Delivery Control

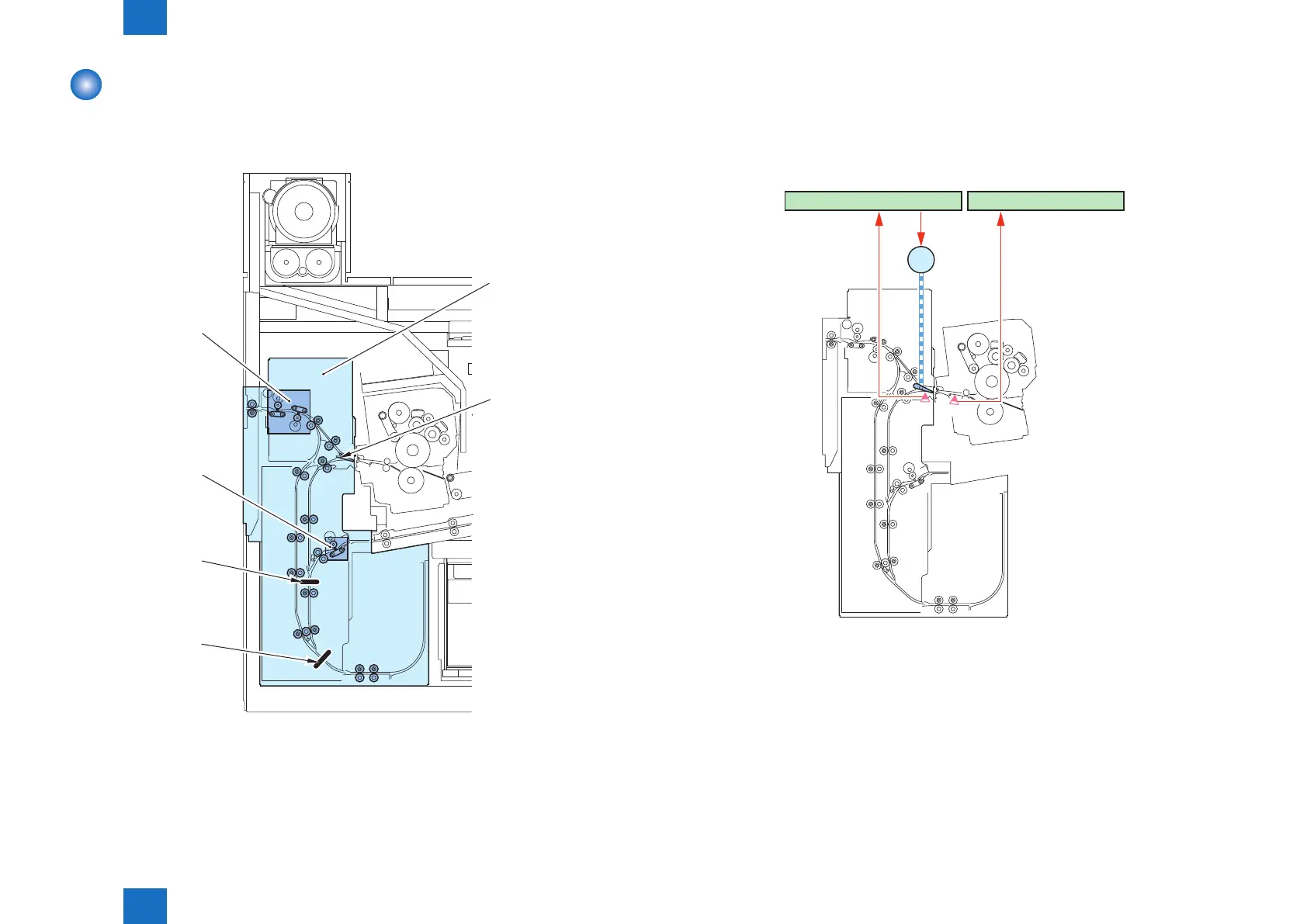

Buffer Delivery Area Control/Function
Paper fed from the îš¿xing area is delivered or fed to the duplexing feed area.
Buffer delivery area executes the delivery control, duplexing reverse control and decurler
control.
Buffer delivery
assembly
Delivery switch
flapper
Delivery decurler
control assembly
Duplexing decurler
control assembly
Duplexing reverse
position
Delivery reverse
position
F-2-180
â–
Delivery Control
There are 2 delivery methods with this machine such as face-up delivery and face-down
delivery.
Path for face-up delivery and face-down delivery is switched by the switch of the delivery
apper after the paper goes through the reverse sensor.
M31
PCB7 Reverse delivery driver PCB PCB9 Fixing sub driver PCB 1
PS64
PS65
M31 Delivery switch motor
PS64 Reverse sensor
PS65 Delivery apper switch sensor
F-2-181
