Parts Replacement and Cleaning > Main Unit > Removing Pressure Roller Unit
Parts Replacement and Cleaning > Main Unit > Removing Pressure Roller Unit
Removing Pressure Roller Unit
<Preparation>
1) Open the Front Left Cover and the Front Right
Cover.
(Refer to page 4-54)
2) Pull Out Fixing Feed Unit.
(Refer to page 4-120)
3) Caution about the Disassembly of Fixing
Assembly.
(Refer to page 4-96)
4) Open Fixing Upper Unit.
(Refer to page 4-98)
Caution :
Do not touch the surface of the
pressure roller.

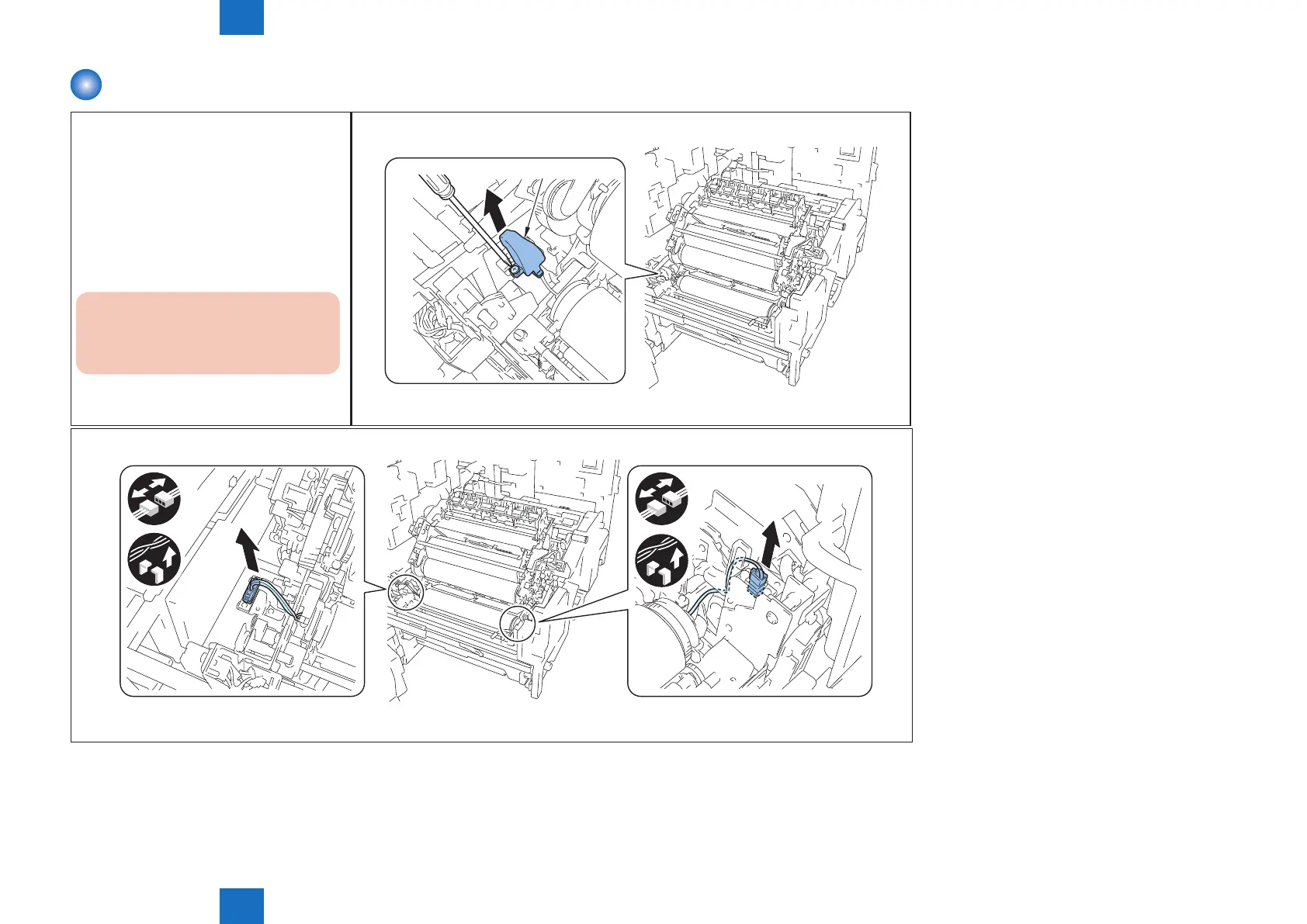

1) Loosen the screw and remove the connector cover.
Connector cover
F-4-180
2) Remove the 2 connectors (with hook) and remove the harness from the guide.
F-4-181
To Next Page
