Parts Replacement and Cleaning > PCB > Removing Developing Dirvere PCB
Parts Replacement and Cleaning > PCB > Removing Developing Dirvere PCB
Removing Developing Dirvere PCB
<Preparation>
1) Open the Front Left Cover and the Front Right
Cover.
(Refer to page 4-54)
2) Remove Process Unit Cover.
(Refer to page 4-71)
3) Pullout Process Unit.
(Refer to page 4-72)

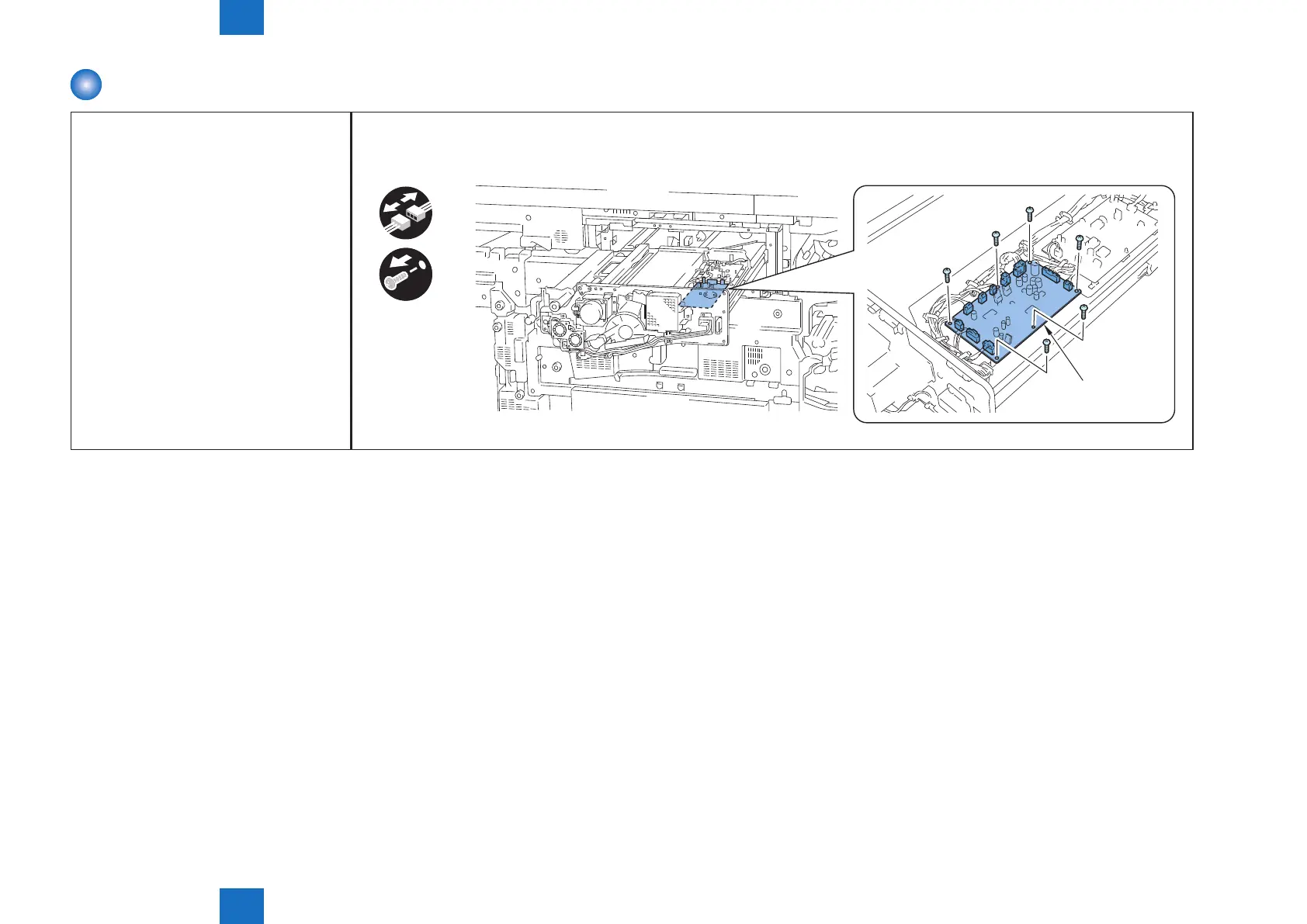

1) Remove developing driver PCB.
• 10 connectors
• 6 screws
x6
x10
Developing driver PCB
F-4-876
