4
4
4-352
4-352
Parts Replacement and Cleaning > PCB > Removing the Main Controller PCB 1 Unit
Parts Replacement and Cleaning > PCB > Removing the Main Controller PCB 1 Unit
PCB

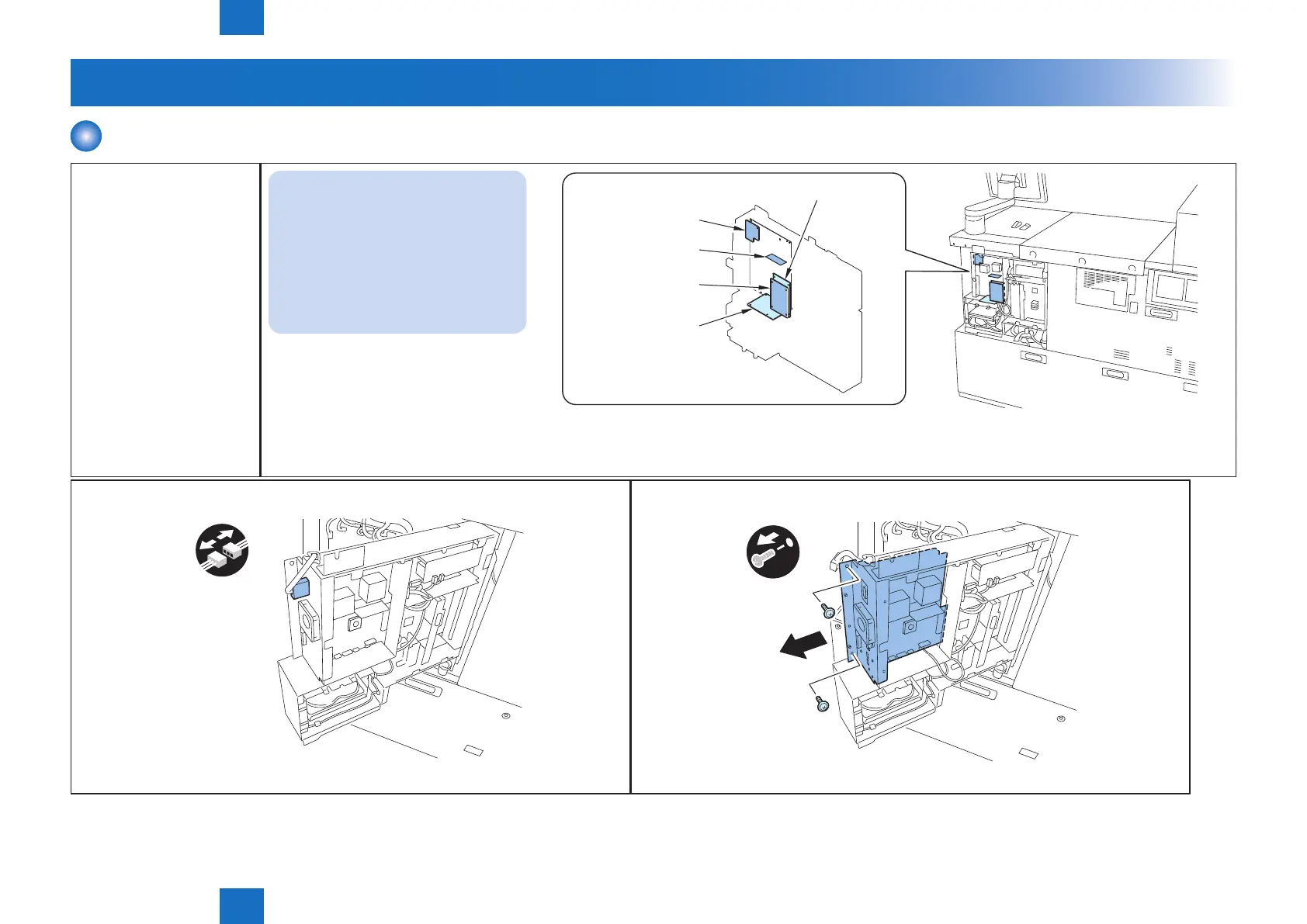

Removing the Main Controller PCB 1 Unit
<Preparation>
1) Remove Rear Left Cover.
(Refer to page 4-55)
2) Open the Controller Box Unit.
(Refer to page 4-57)
MEMO :
Be sure to remove the option parts
îš¿rst before removing the main
controller PCB 1 unit.
• Voice guidance PCB
• PCI bus extension kit-F1
• IPSec board-B1
• PS multi kit-A1
• HDD data encryption kit-B7
PCI bus extension kit-F1
IPSec board-B1
HDD data encryption
kit-B7
Voice guidance PCB
PS multi kit-A1
F-4-802
1) Remove the 1 connector.
F-4-803
2) Remove the main controller PCB1 unit in the direction of the arrow.
• 2 screws
x2
F-4-804
To Next Page
