Removing Primary Charging Ozone Filter

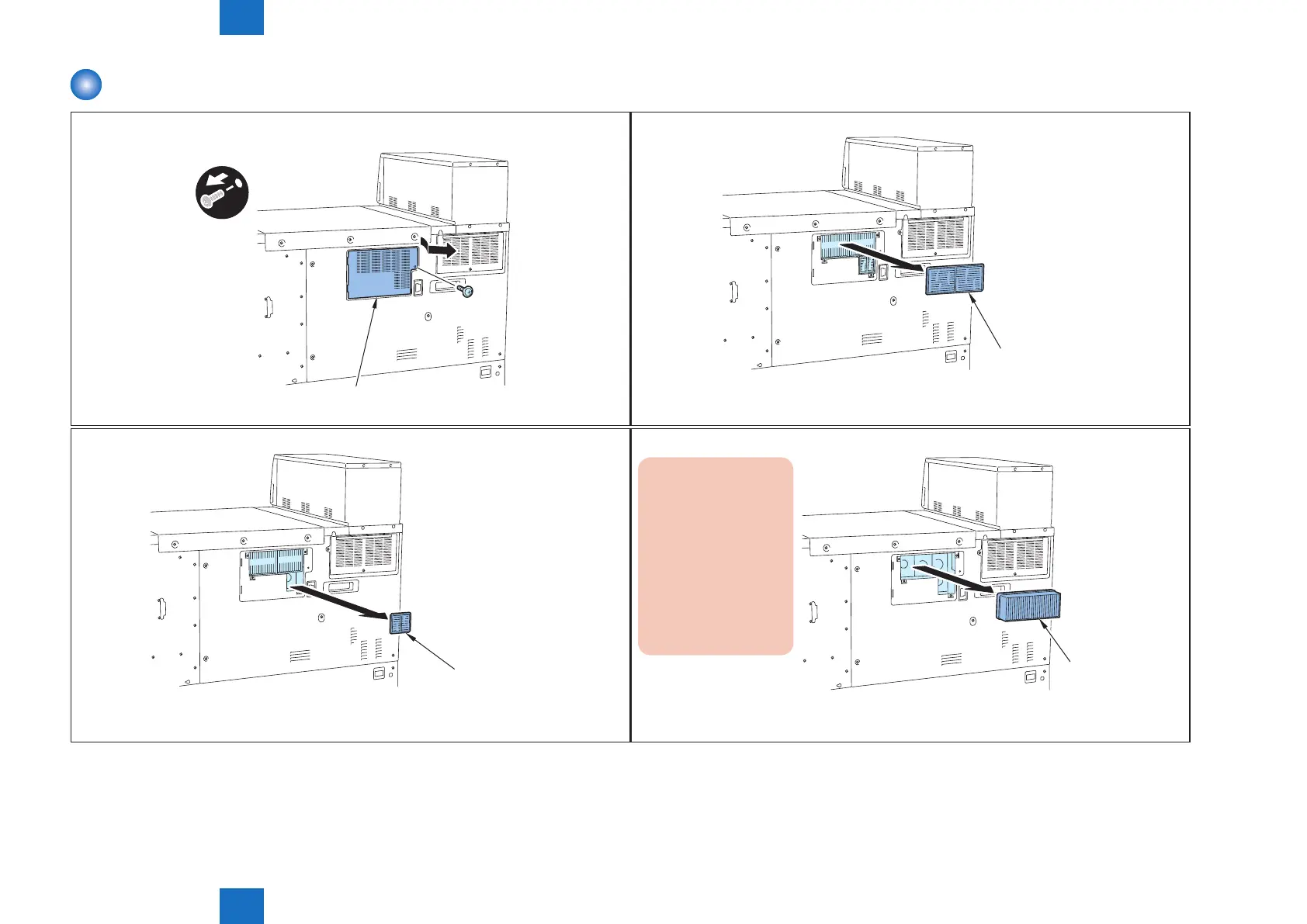

1) Remove the screw.
2) Open the right side of the primary charging toner îš¿lter cover to remove it.
Primary charging toner filter cover
F-4-791
3) Remove the primary charging toner îš¿lter.
Primary charging
toner filter
F-4-792
4) Remove the developing toner îš¿lter.
Developing toner filter
F-4-793
5) Remove the primary charging ozone îš¿lter.
Caution : caution
at installation
The side that
sponge is rolled on
primary charging
ozone îš¿lter should
face rear to hit the
install hole when
installing.
Primary charging
ozone filter
F-4-794
