Canon imagePRESS Server M10 - Replacing Parts; Exploded View of Server Components

4
1
8
5
13
16
19
6
14
12
17
3
18
2
10
11
7
9
15
20

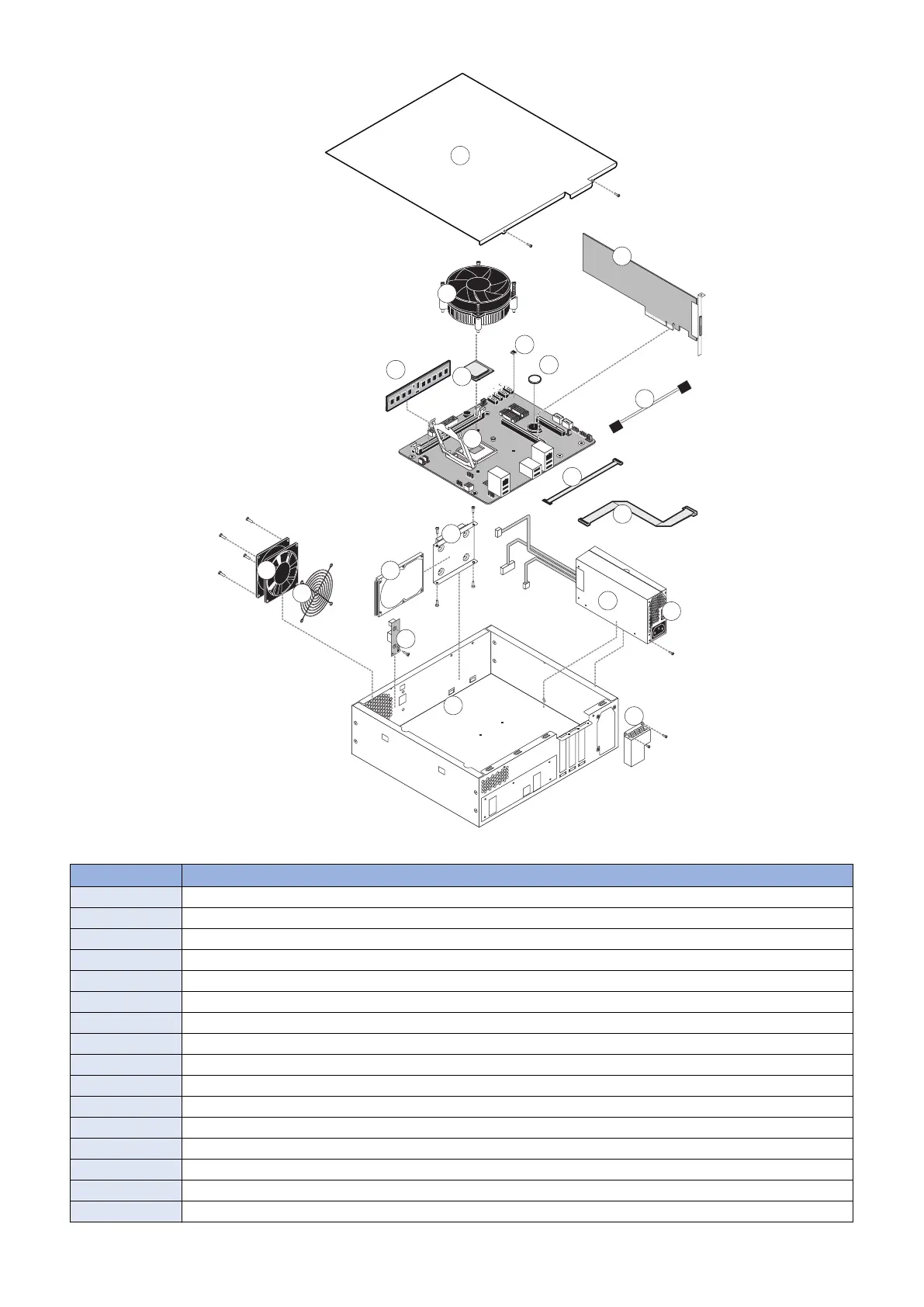

Figure 4: Exploded view of imagePRESS Server components
No. Parts Name
1 Chassis cover
2 Printer interface board
3 CPU cooling assembly
4 4GB DIMM
5 3.3GHz CPU
6 Security chip
7 Battery
8 Motherboard
9 500GB SATA HDD(hard disk drive)
10 HDD bracket
11 Chassis fan
12 Chassis fan guard
13 Service board
14 HDD SATA data cable
15 10-pin power button cable
16 Service board cable
