F. Installation Space Requirements
The imagePROGRAF iPF685/680 printer’s approximate installation space
requirements may differ, depending on how the printer is configured and the
optional accessories attached. Always ensure that there is enough space for
service and operation of the device.
Refer to the imagePROGRAF iPF685/680 Series Service Manual for details
on transportation and installation of the imagePROGRAF iPF685/680 printer.
IMPORTANT
• Make sure that approximately 24" (600 mm) of space is left around the
front, 0.4" (10mm) is left at the back, and a minimum of approximately 8"
(200 mm) of space is left around the left, and right sides of the printer for
the proper servicing of the equipment.
• The floor must be level (with no bows) and flat for the stabilization and
support of the printer.
• The weight of the printer is primarily supported by the wheels.
• Elevators used to transport the printer must have a minimum depth of
approximately 62" (1,575mm). Additional room may be needed to
navigate turns.
• The printer should never be tilted until a “move” operation has been
performed. Refer to the Service Manual for specific details.

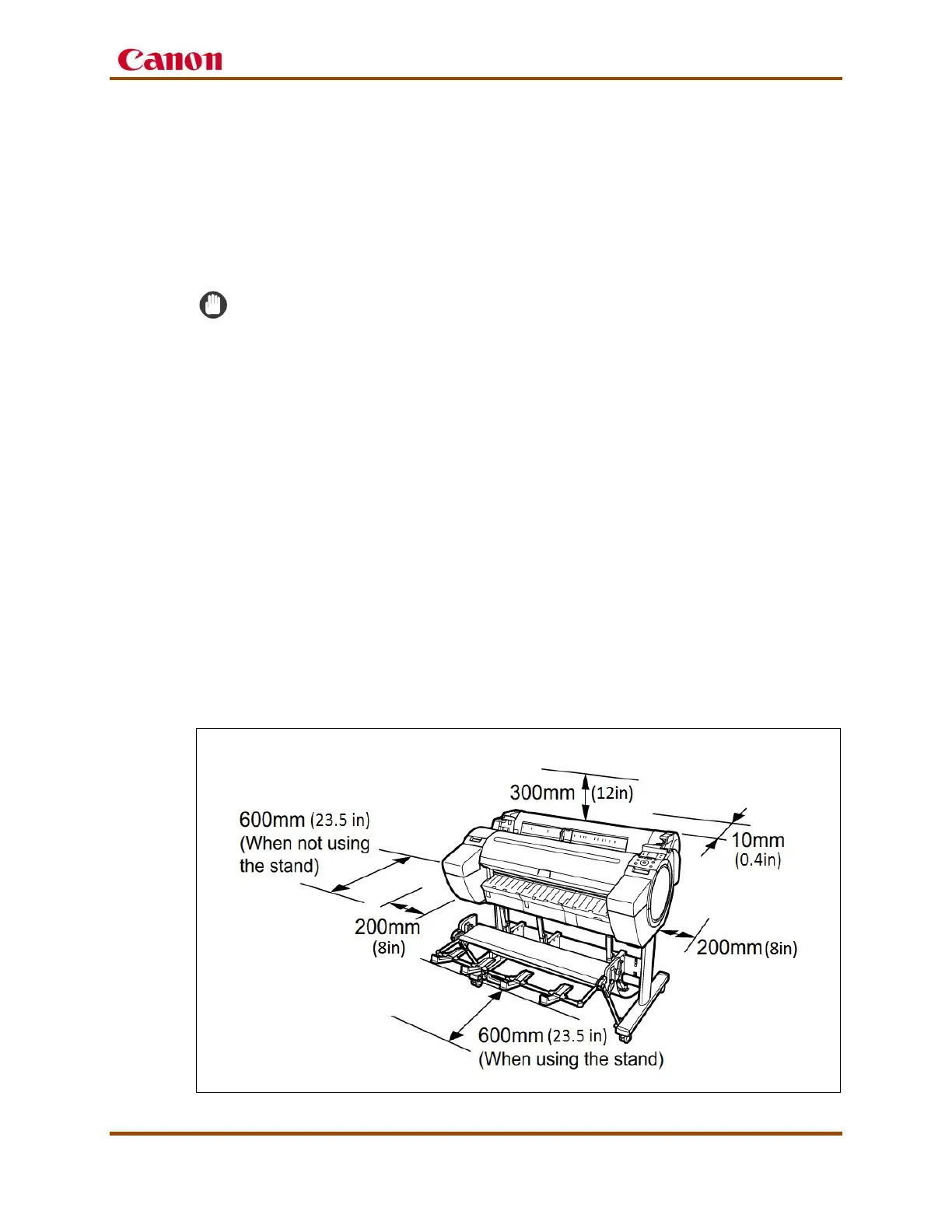

The approximate space requirements for the imagePROGRAF iPF685/680
printer installation are shown below.
Table 16 – imagePROGRAF iPF685/680 Printer Installation Space Requirements
Height and Depth

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
