Canon imagePROGRAF iPF815 Service Manual

Chapter 6
6-23
b) Operation
1) Showing the information of the printer
The data of PRINT INF or status print is shown.
(1) Choose the [Information] of the main menu button or the "[Service]-[Information]" of the main menu.

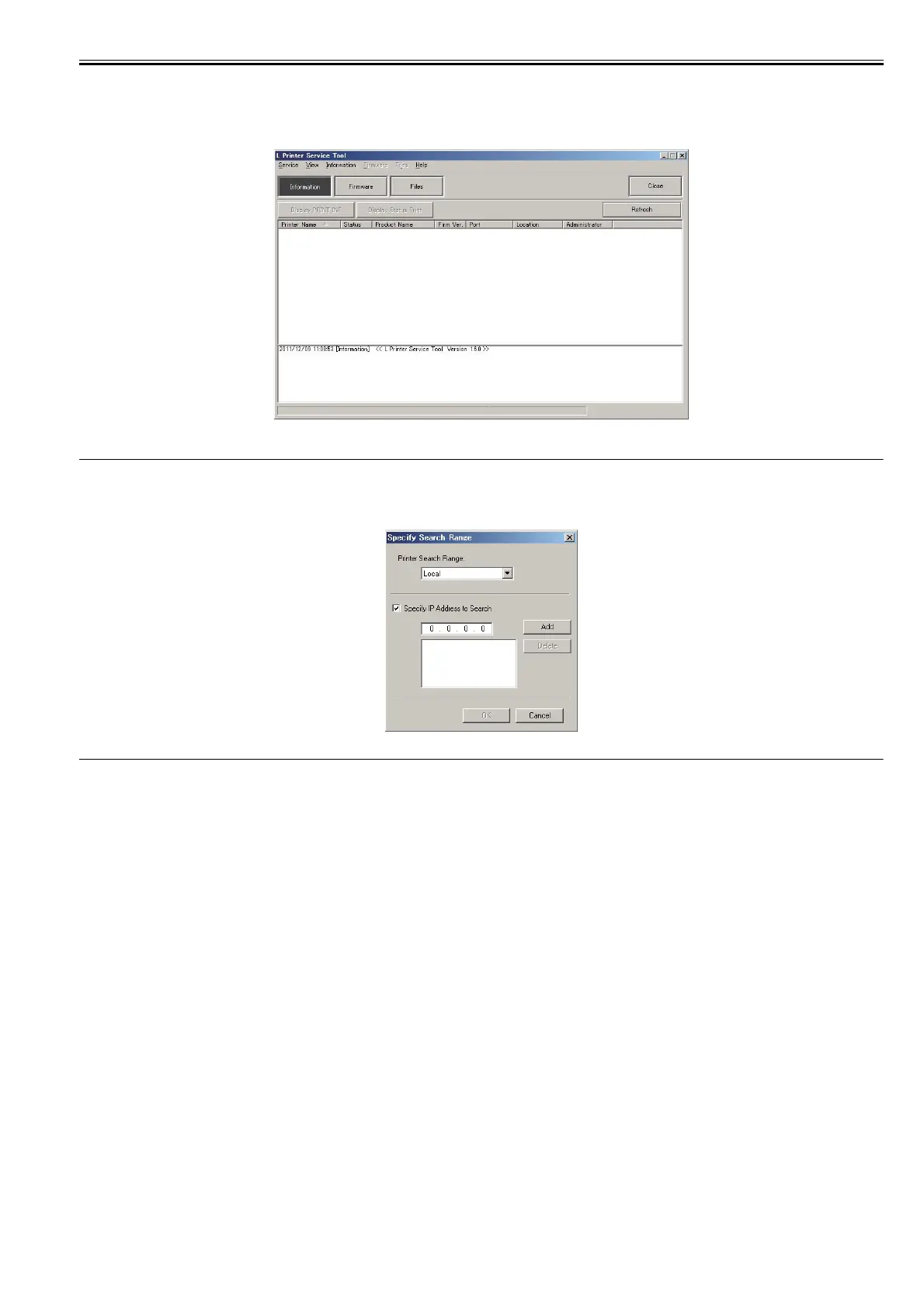

F-6-11
(2) Choose the printer from the list shown to the printer information area.
MEMO:
- The list is refreshed when choosing the [Refresh] of the sub menu button or the "[View]-[Refresh]" of the main menu.
- The printer is searched according to the setting of the [Specify Search Range] dialogue box after choosing the "[View]-[Specify Search Range]" of the main menu
to display the dialogue box. The five IP addresses at the maximum can register when searching by the IP address.
F-6-12
(3)-1 Choose the [Display PRINT INF] of the sub menu button or the "[Information]-[Display PRINT INF]" of the main menu when showing the PRINT INF.
- The data of PRINT INF is shown by the appointed application software.
(3)-2 Choose the [Display Status Print] of the sub menu button or the "[Information]-[Display Status Print]" of the main menu when showing the Status Print.
- The data of Status Print is shown by the appointed application software.
(3)-3 Choose the [Color Check] of the sub menu button or the "[Information]-[Color Check]" of the main menu when executing the color check.
- This mode judges the OK or NG by checking the color check data that measured by the multi sensor.
- Before executing the color check, need the following media to set to the printer.
Roll media of more than 10 inch width, or cut sheet of more than A4-size.
Paper type: Glossy Photo Paper 170gsm
- When executing the color check, the paper type that selected by the dialogue box must match with the paper type that set to the printer so that the check can
execute correctly.
