Original Exposure/Feed System
Removing the ADF Unit
■ Preparation (With Finisher Model)
1. “ Removing the Finisher Rear Cover” on page 119
2. “ Removing the Rear Cover” on page 109
3. “Removing the Main Controller Sub Cover /Main Controller Cover” on page 192
■ Procedure (With Finisher Model)
CAUTION:

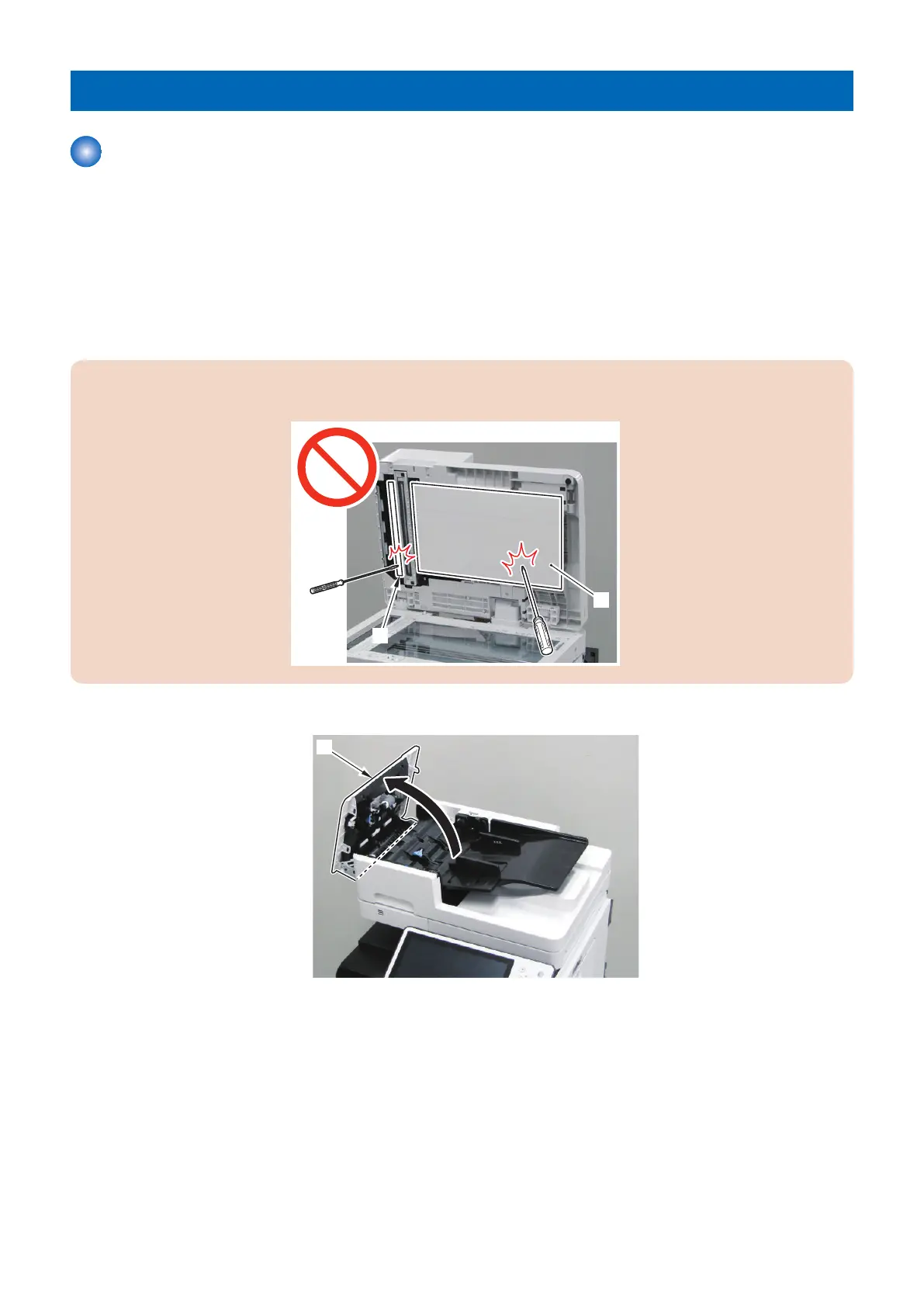

Be careful not to damage the white sheets [1] and [2] of the ADF Unit when disassembling/assembling.
1. Open the Feeder Cover [1].
4. Parts Replacement and Cleaning
127
