Canon iPF680 - Printer Parts; Front

Printer parts
Printer parts
Front .............................................................................................................................................................................................478
Side ............................................................................................................................................................................................... 480
Top Cover (Inside) .................................................................................................................................................................. 481
Roll Cover (Inside) .................................................................................................................................................................. 482
Carriage ...................................................................................................................................................................................... 482
Ink Tank Cover (Inside) ......................................................................................................................................................... 483
Control Panel ............................................................................................................................................................................ 438
Front
Front

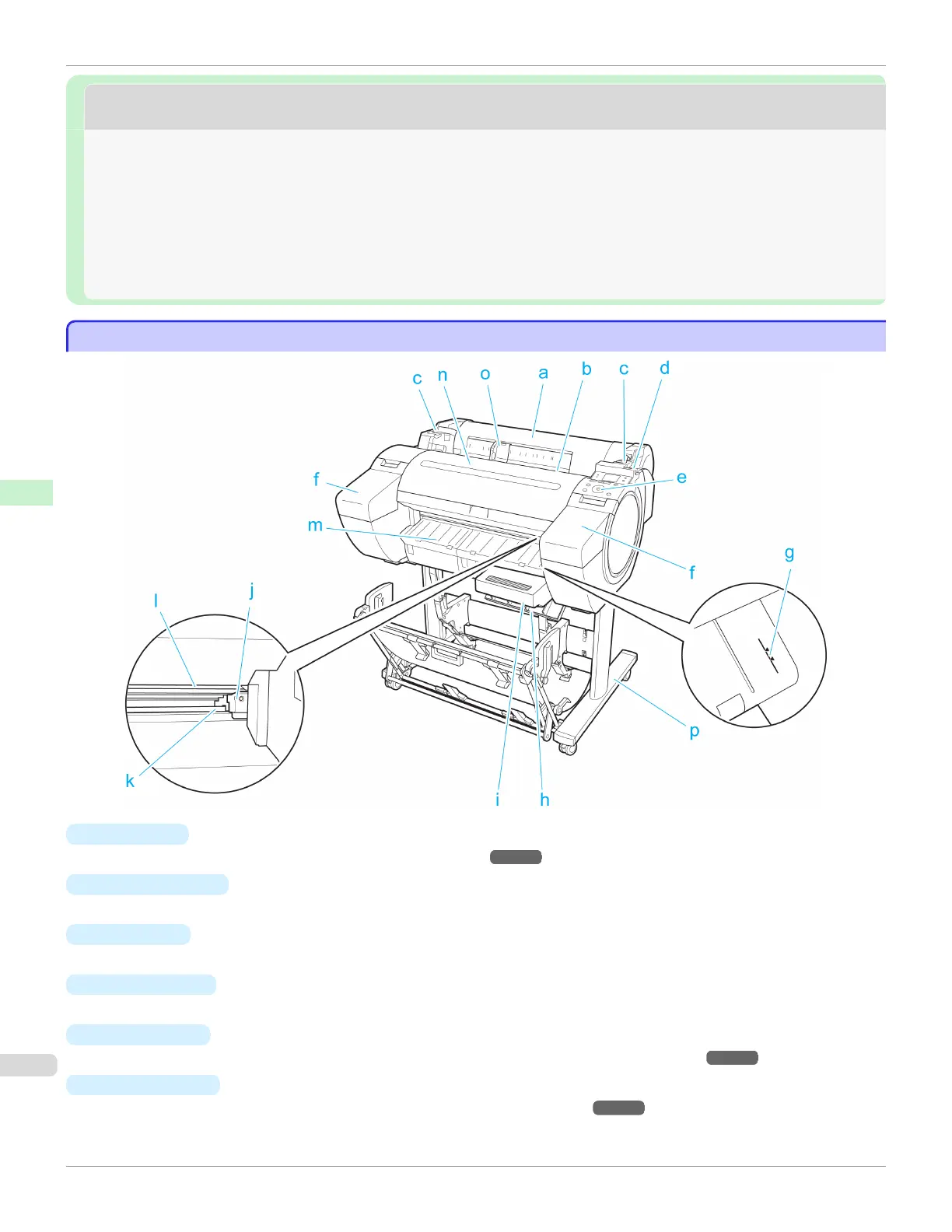

a Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).") ➔ P.482
b
Paper Feed Slot
When loading paper, insert it here.
c Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d
Release Lever
When releasing the Paper Retainer, push this lever back.
e Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.") ➔ P.438
f Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).") ➔ P.483
