Canon iR4570 Series User Manual

Chapter 2
2-14
F-2-36

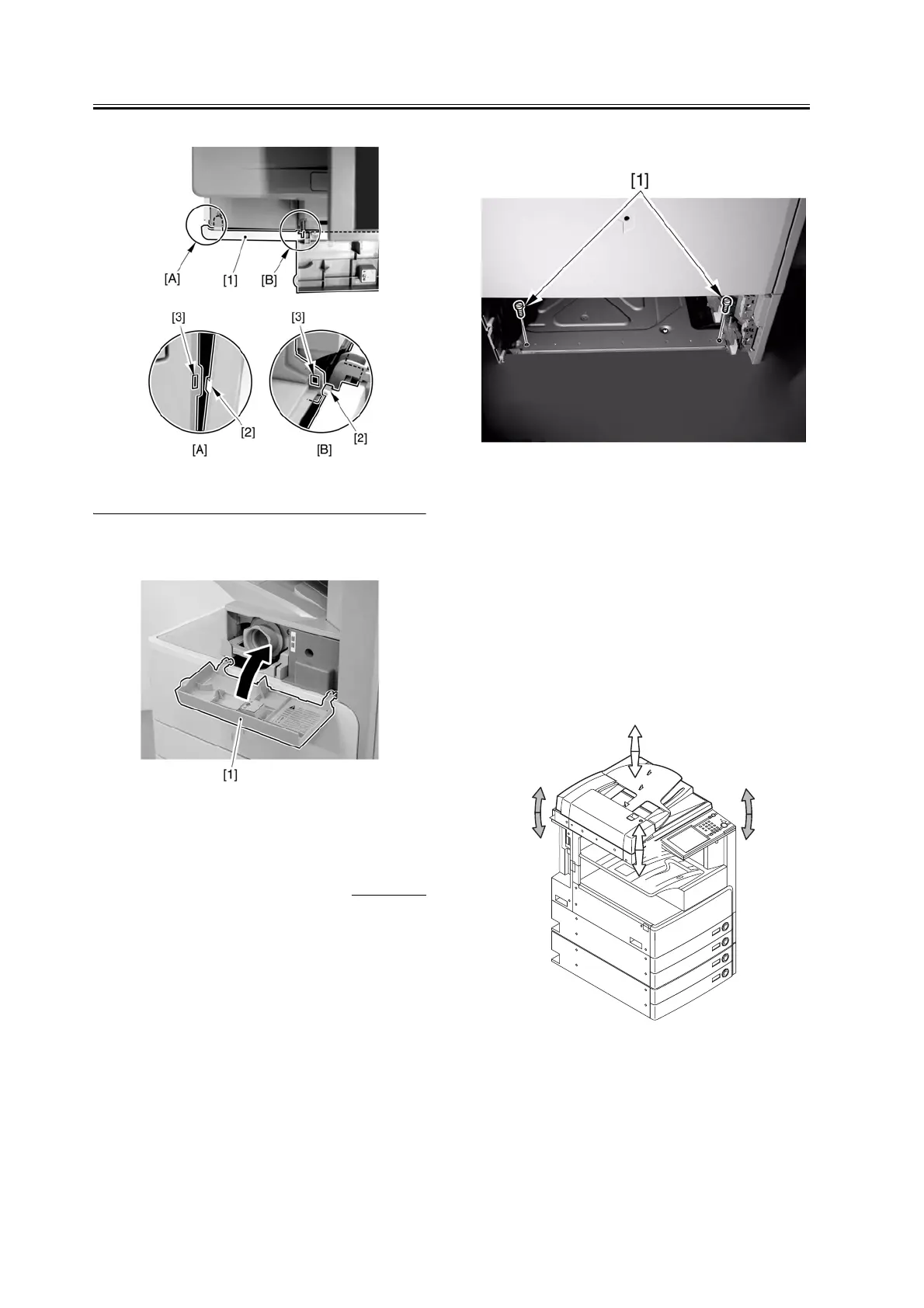

15) Close the front cover [1].
F-2-37
2.2.4 Securing the Copier
Main Unit
0006-6767
iR2270 / iR2870 / iR3570 / iR4570
- With a pedestal installed
1) Move the copier to the location where it will be
installed, and then secure it with the 4 adjuster
wheels of the pedestal.
- Without a pedestal installed
1) Remove the cassettes 1 and 2 and tighten the
adjusting screws [1] at the base plate temporarily
until the screw legs touch the bottom slightly.
F-2-38
2) Check if the machine wobbles while it is lying on
the desk or the floor, and tighten the adjusting
screws if necessary.
- When it wobbles in the direction shown by the arrow
A, tighten the screw at the right side in the above
picture.
- When it wobbles in the direction shown by the arrow
B, tighten the screw at the left side in the above
picture.
F-2-39
3) Mount the cassettes 1 and 2.
[A]
[A]
[B]
[B]

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
