Canon iR4570 Series User Manual

Chapter 8
8-130
F-8-340

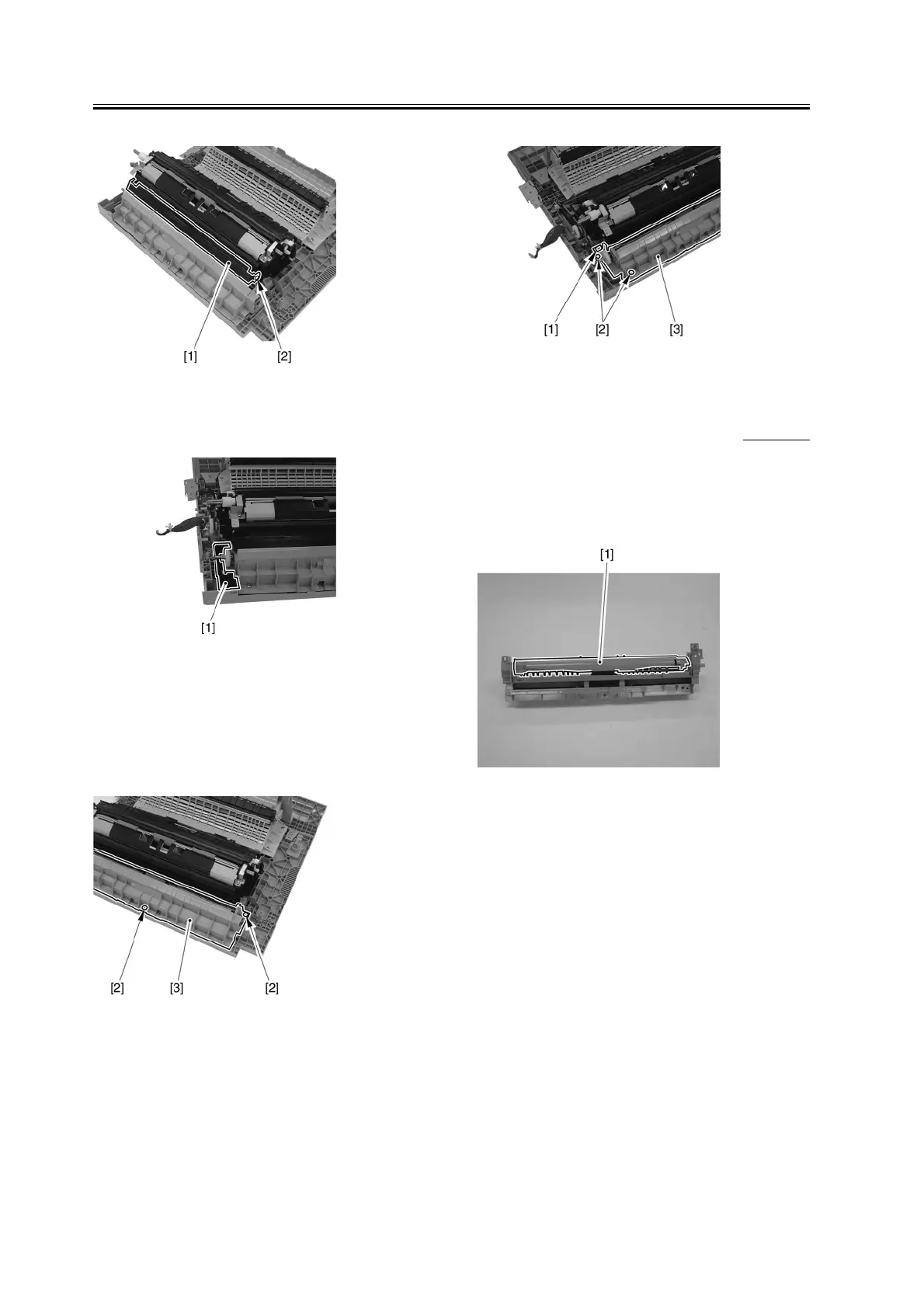

3) Remove the connector cover [1] (snap-on).
F-8-341
4) Disconnect the connector [1].
5) Remove the 4 screws [2], and detach the manual
feed unit [3].
F-8-342
F-8-343
8.8.18.5 Removing the Manual
Feed Pickup Roller 0007-6717
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Remove the manual feed upper cover [1] (snap-on).
F-8-344
2) Remove the bush [2], and detach the manual feed
pickup roller [3] together with the shaft.
3) Remove the plastic E-ring [4], and detach the
manual feed pickup roller from shaft. Take care not
to drop the parallel pin.

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
