Chapter 7

7-44

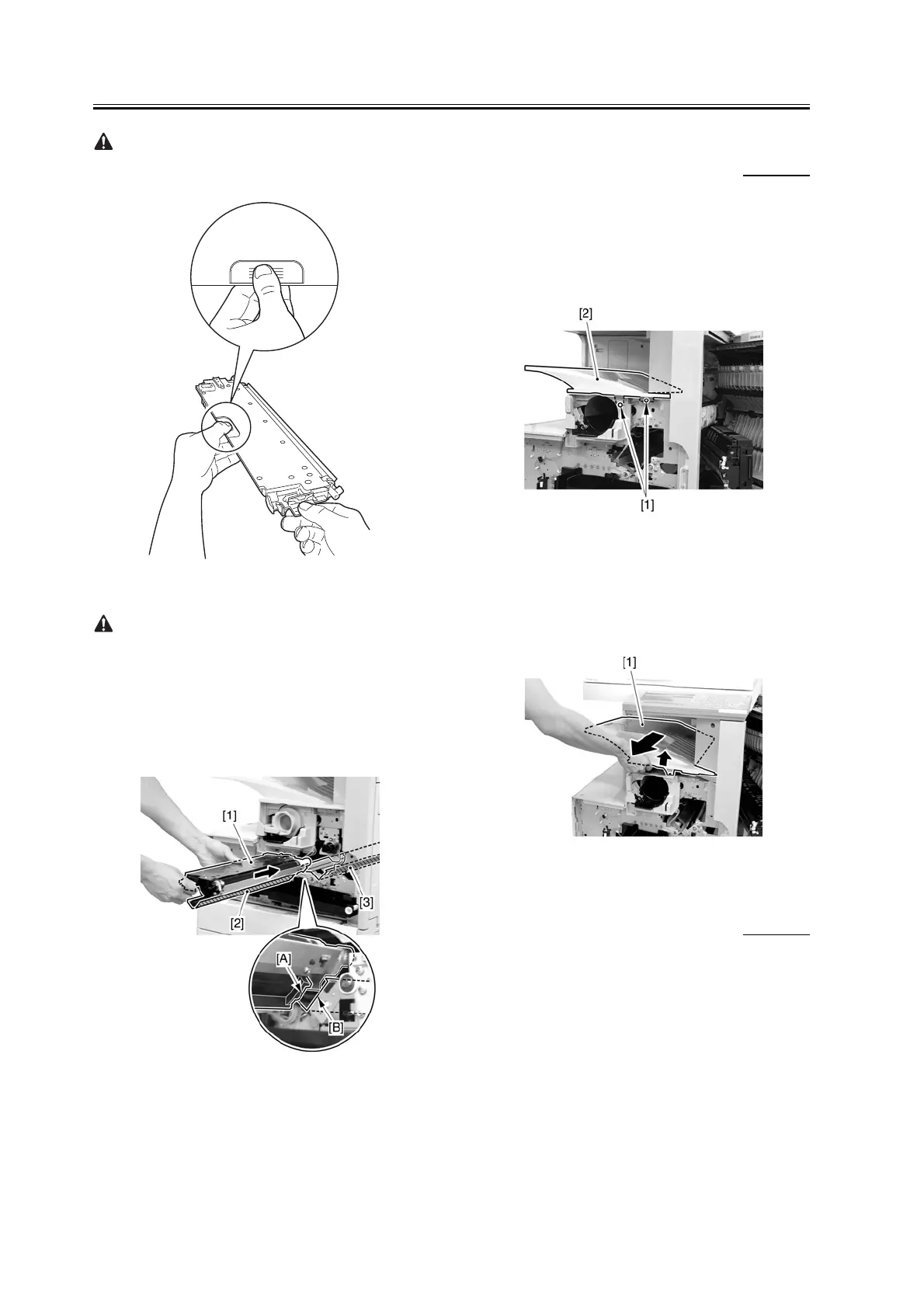

Be sure to hold the developing assembly as shown.
F-7-108
When fitting the developing assembly, be sure to fit
the lower right segment [2] of the developing
assembly [1] in the rail [3] of the machine. Thereafter,
slide the developing assembly so that [A] of the
developing assembly matches [B] of the rail.
F-7-109
7.12.4.6 Removing the Upper
Tray 0007-8389
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Remove the 2 screws [1], and detach the upper tray
[2].
F-7-110
Reference:
Lift the front of the upper tray [1], and detach it as if
to slide it toward the front.
F-7-111
7.12.4.7 Removing the Toner
Cartridge Cover 0007-8390
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Remove the 2 screws [1]; then, detach the toner
bottle cover [2].
