Chapter 8
8-97
F-8-197

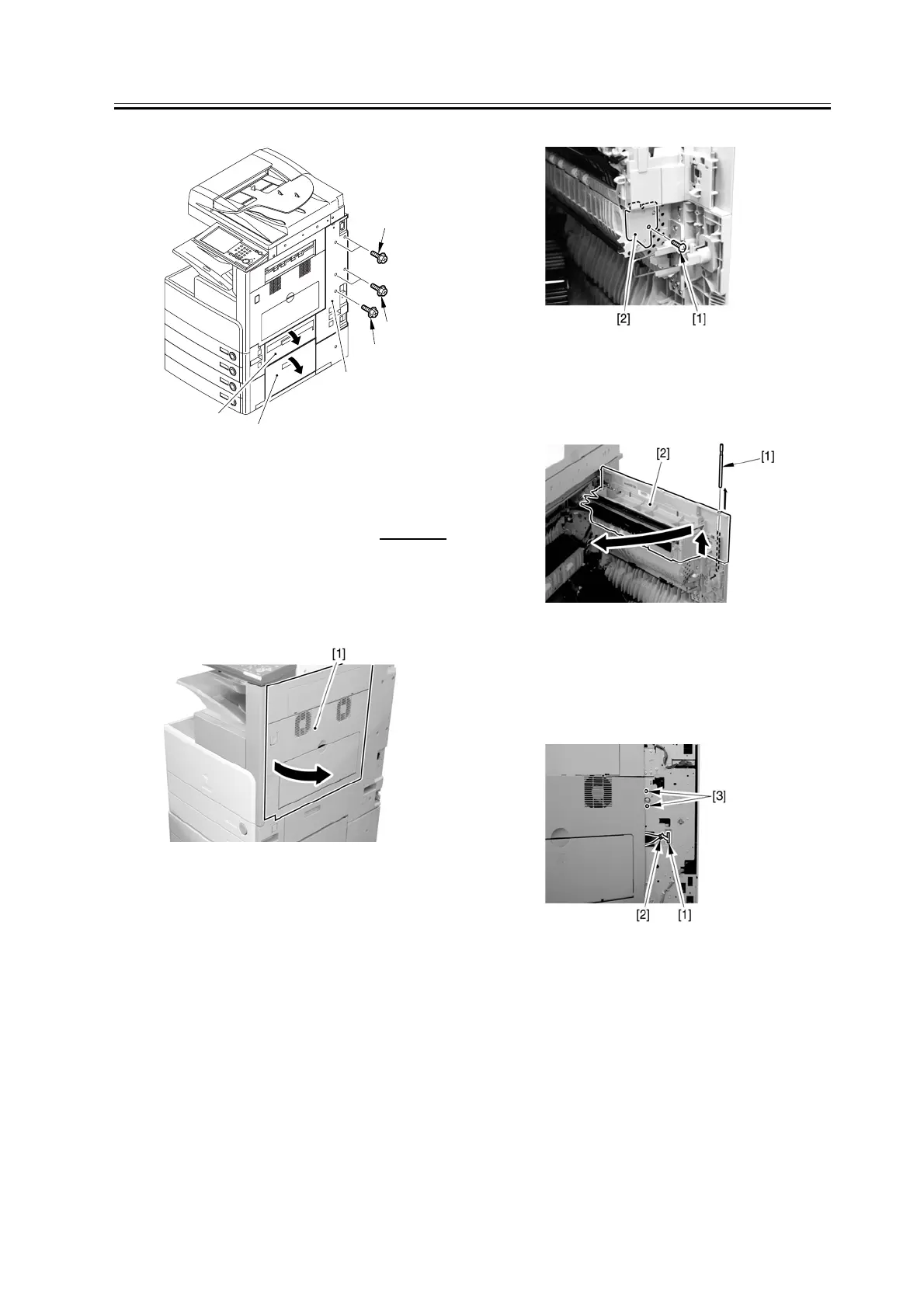

8.8.10.2 Removing the Right
Door 0007-6656
iR3570 / iR4570 / iR3530
1) Open the right door.
F-8-198
2) Remove the screw [1], and detach the fixing plate
[2].
F-8-199
3) Remove the joint shaft [1], and free the extension
delivery unit [2] from the right door.
F-8-200
4) Disconnect the connector [1], and remove the reuse
band [2]; then, remove the 2 screws (M4x8; RS
tightening).
F-8-201
5) While freeing the hinge assembly [2], detach the
right door.
[1]
[2]
[3]
[3]
[3]
[4]

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
