Chapter 5
5-37

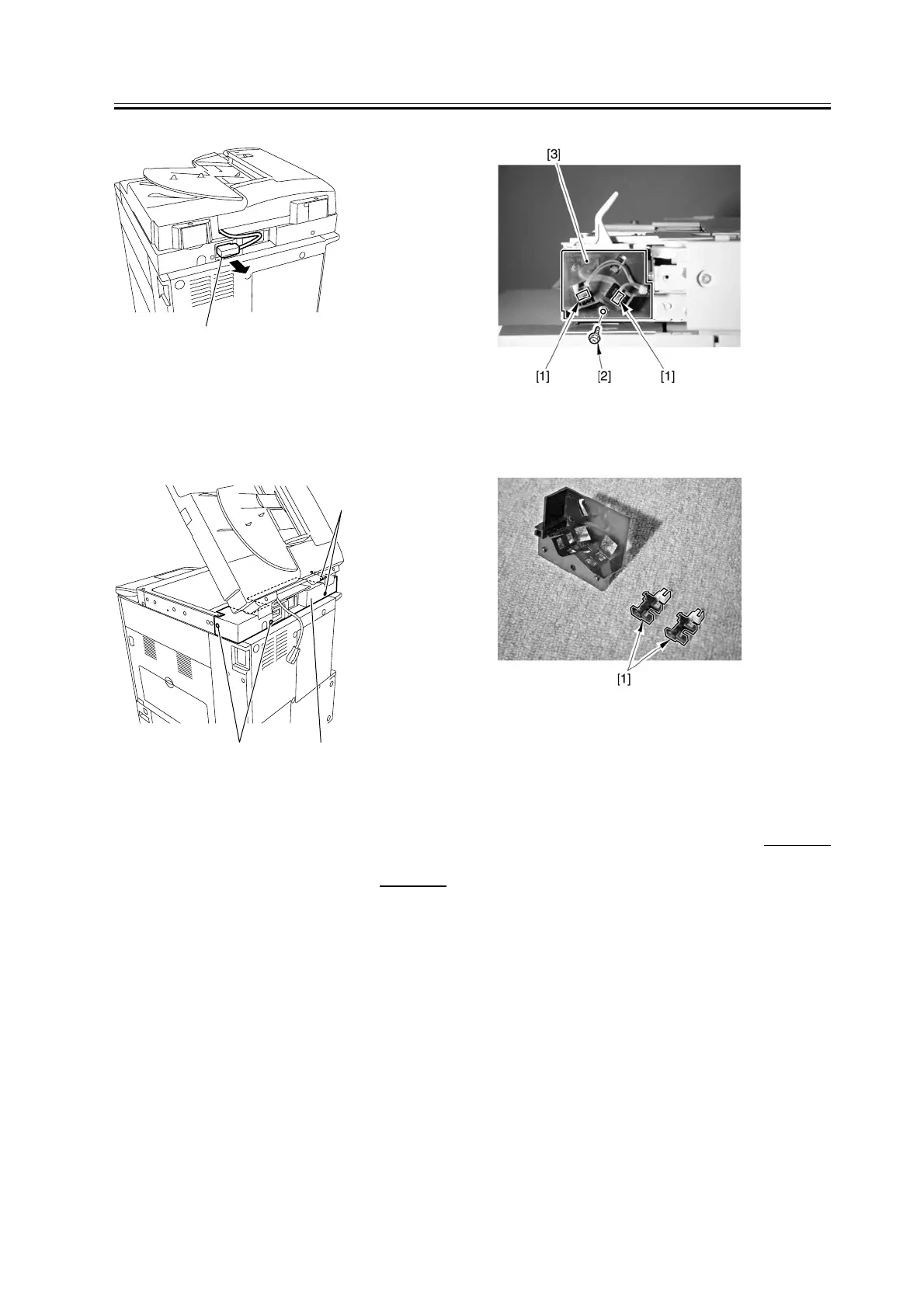

F-5-66
2) Open the copyboard cover (or the ADF).
3) Remove the 4 screws [1], and detach the reader rear
cover [2].
F-5-67
5.4.5.2 Removing the
Copyboard Cover Open/
Closed Sensor (front/rear) 0007-0753
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Disconnect the 2 connectors [1], and remove the
screw [2]; then, detach the sensor base [3].
F-5-68
2) Detach the 2 sensors [1] from the sensor base.
え
F-5-69
5.4.6 Contact Sensor HP Sensor
5.4.6.1 Removing the
Copyboard Glass 0007-3439
iR2270 / iR2870 / iR3570 / iR4570 / iR3530
1) Open the copyboard cover (or ADF).
2) Remove the 2 screws [1], and detach the glass
retainer [2]; then, detach the copyboard glass [3].
[1]
[1] [2]
[1]

Canon iR4570 Series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Modem Speed	33.6 Kbps
Functions	Print, Copy, Scan, Fax (Optional)
Print Speed	45 ppm
Duplex Printing	Yes
Network Connectivity	Ethernet
Type	Laser
Warm-up Time	Less than 30 seconds
Memory	256 MB
Paper Sizes	A4, A5, B5, Legal, Letter, Executive
Copy Speed	45 cpm
Multiple Copies	Up to 999 copies
Zoom	25-400%
Scan Speed	45 ipm
Scan Destinations	Email, FTP
Fax Resolution	Up to 400 x 400 dpi
Fax Memory	512 pages
Interface	Ethernet
Fax Transmission Speed	Approx. 3 seconds per page
Operating System Compatibility	Windows, Mac
